DEEP SEA ELECTRONICS DSE8620 User Manual

DSE Model 8620 AMF Controller Operators Manual
49

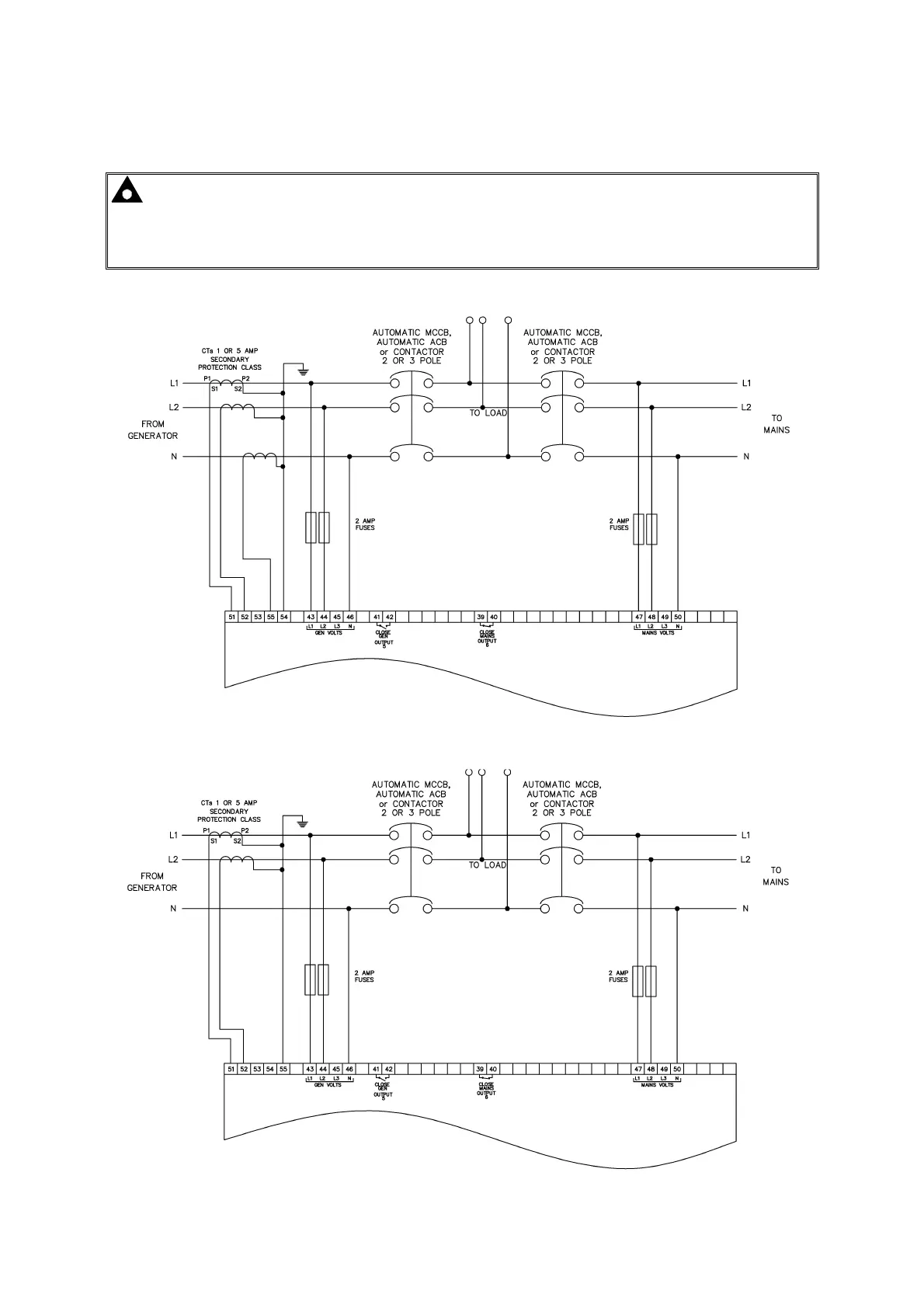

4.3.4 2 PHASE (L1 & L2) 3 WIRE WITH RESTRICTED EARTH FAULT
NOTE:- Earthing the neutral conductor ‘before’ the neutral CT allows the module to read
earth faults ‘after’ the CT only (Restricted to load / downstream of the CT)
Earthing the neutral conductor ‘after’ the neutral CT allows the module to read earth faults
‘before’ the CT only (Restricted to generator / upstream of the CT)
4.3.5 2 PHASE (L1 & L2) 3 WIRE WITHOUT EARTH FAULT

DEEP SEA ELECTRONICS DSE8620 Specifications

General

Model	DSE8620
Storage Temperature Range	-40 °C to +85 °C
Display	LCD
Maximum Operating Altitude	3000 m
Programmable Relays	4
Input Voltage	9-35V DC
DC Supply	8 V to 35 V Continuous
Operating Temperature Range	+70 °C
Communication	RS232, RS485
Protection Rating	IP65
Engine Start Modes	Manual, Automatic
