DSE Model 8620 AMF Controller Operators Manual
25

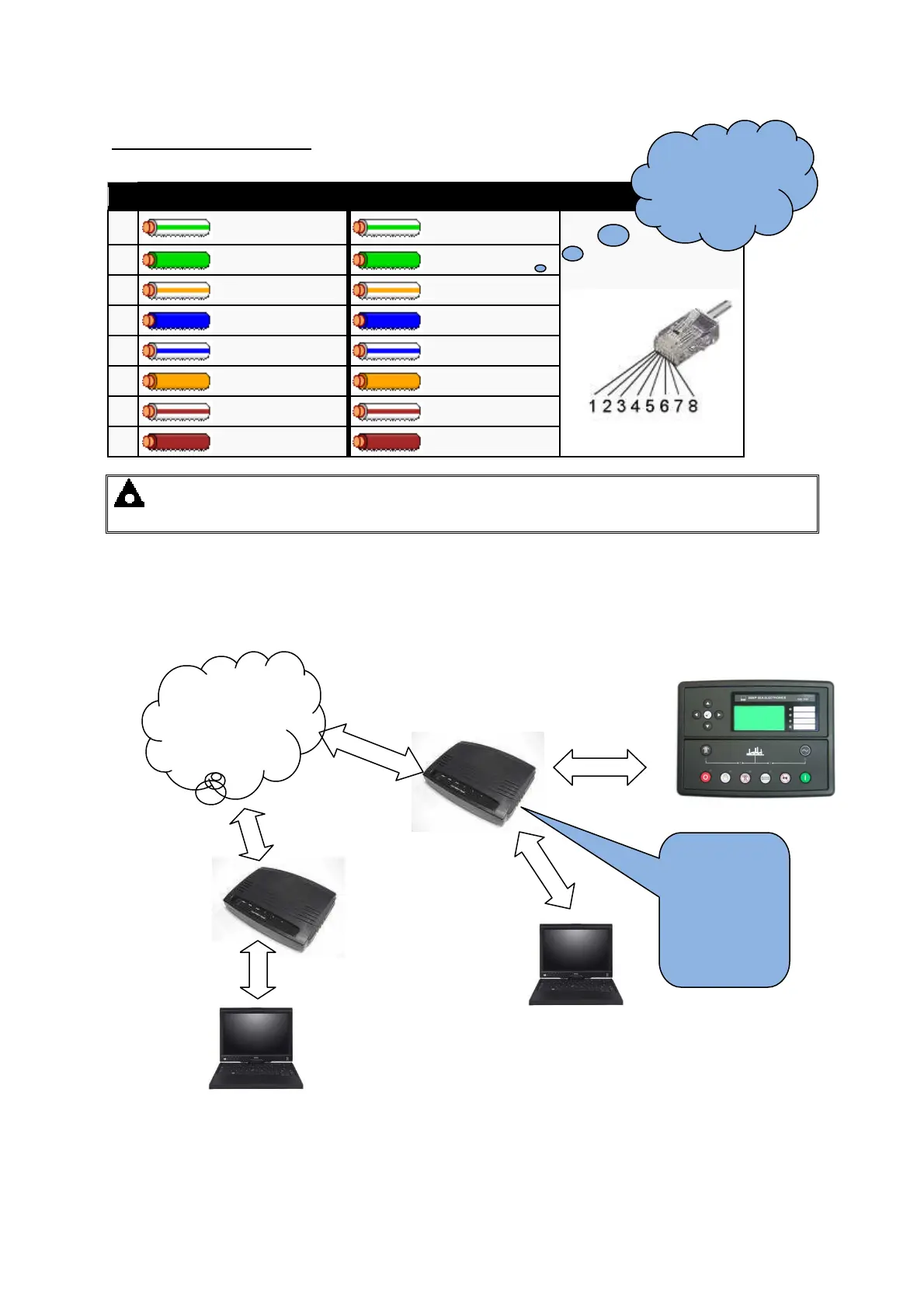

Ethernet cable wiring detail
10baseT/100baseT
Pin Connection 1 (T568A) Connection 2 (T568A)
1
white/green stripe white/green stripe
2
green solid green solid
3
white/orange stripe white/orange stripe
4
blue solid blue solid
5
white/blue stripe white/blue stripe
6
orange solid orange solid
7
white/brown stripe white/brown stripe
8
brown solid brown solid
NOTE:- DSE Stock a 2m (2yds) Ethernet Cable – Part number 016-137. Alternatively they
can be purchased from any good PC or IT store.
3.9.6.4 CONNECTION TO THE INTERNET
Requirements
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• Working Internet connection (ADSL or DSL recommended)
For the advanced
Engineer, this cable
has both ends
terminated as T568A
(as shown below) or
T568B.
Ethernet cable
DSL or ADSL
router
Optional ‘Local’
site PC
INTERNET
DSL or ADSL
router
PC remote
from generator
site
The
DSL/ADSL
router will
route
external
network
traffic.
