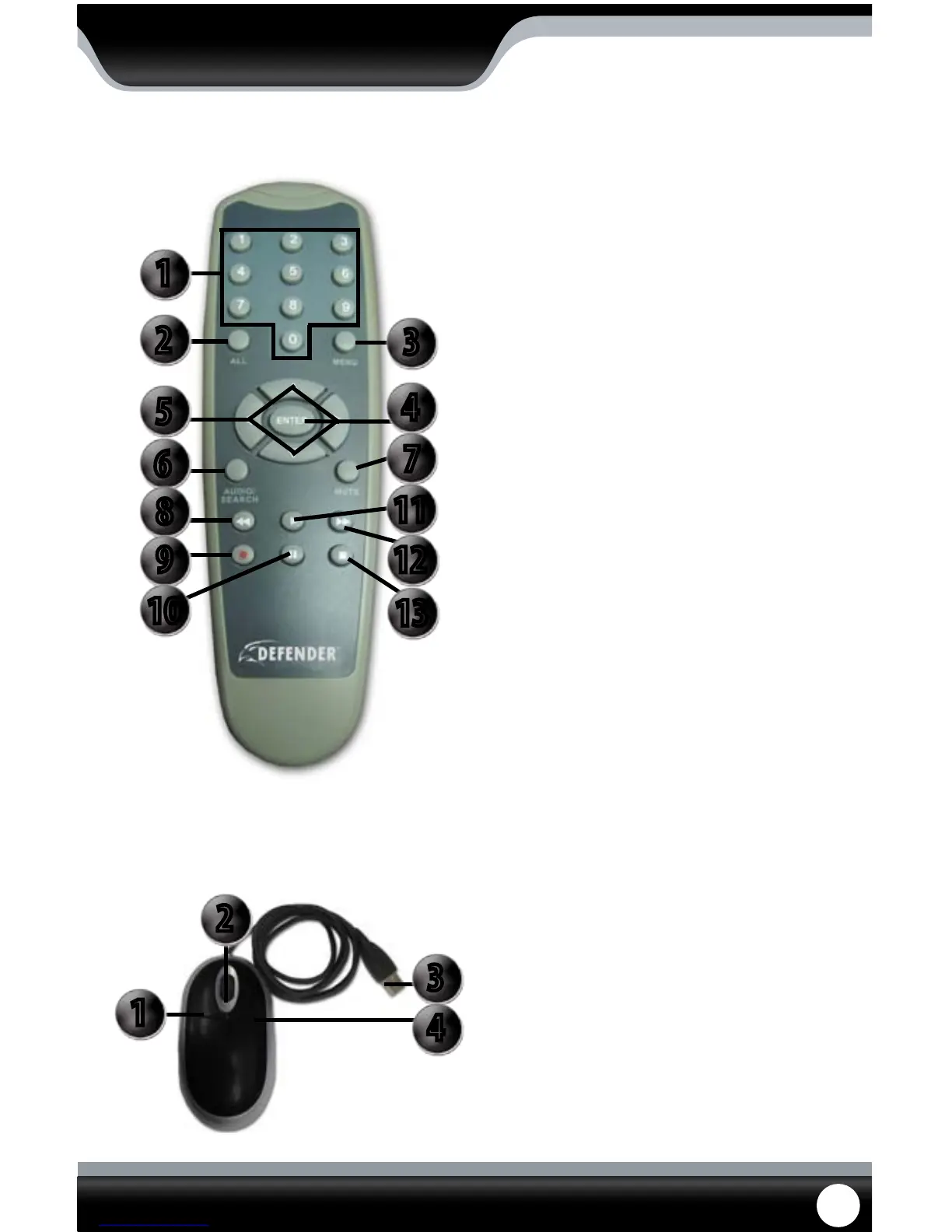

1. Numerical Keypad: Buttons 1-4 will display the
corresponding camera on
full screen
2. All: Switch to quad viewing mode
3. Menu: Access the main menu and exit
the current menu
4. Select/Enter: Allows you to select options
5. Directional Keys: Allow you to navigate through
the menu
6. Audio/Search: Searches and nds any
channels that have an audio
supported camera attached to
it (not included)
7. Mute: Mutes sound
8. Rewind: Rewinds footage
9. Record: Begins recording based on the
24 hour schedule
10. Pause: Pauses playback footage and
starts/stops sequence mode
11. Play: Calls up the playback menu
12. Fast Forward: Fast forwards through
playback footage and allows
you to navigate the menu to
the right
13. Stop: Stops recording and/or
playback footage
REMOTE CONTROL
MOUSE
1. Select: Click this button to select
highlighted object
2. Scroll Wheel: This wheel has no function on
this DVR
3. USB Connection: Connects to the USB mouse
port (top port) on the back of
the DVR
4. Deselect: Pressing this exits the menu
you are in. If you are in live
view it will open the
sub menu
1
2
5
6
8
9
10
3
4
7
11
12
13
1
3
4
2
BUTTON AND CONNECTIONS
