MAINTENANCE NOTICE
NM-275 index 09 Page 11/50 September 2021
5 ELECTRICAL CONNECTION
5.1 Digital / IO Link modules

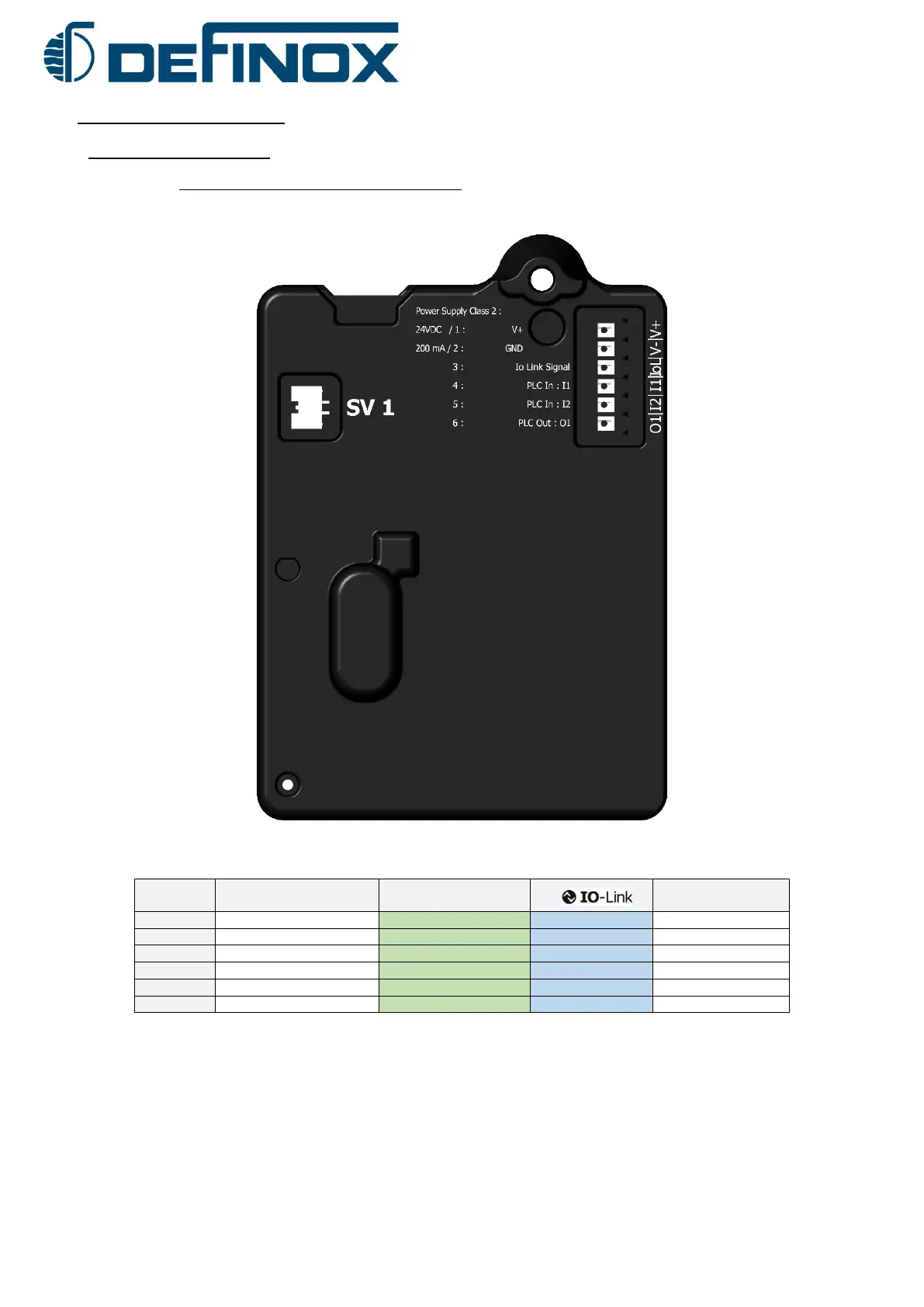

5.1.1 Digital / IO-Link 1EV module (Ref. 7162001)
Terminal
number
Description
Digital
With M12
connector
1
Power supply +24V
V+
V+
Pin 1 (brown)
2
Power supply GND
V-
V-
Pin 3 (blue)
3
PLC in / com
Status OK
IO-Link
Pin 4 (black)
4
PLC in
Main De-energized
n.a.
Pin 5 (grey)
5
PLC in
Main Energized
n.a.
Pin 6 (pink)
6
PLC out
Activating SV1
n.a.
Pin 2 (white)
