Definox Sorio User Manual

MAINTENANCE NOTICE
NM-275 index 09 Page 21/50 September 2021
11a
11
7
Smooth
square
11d
11b
11c
b

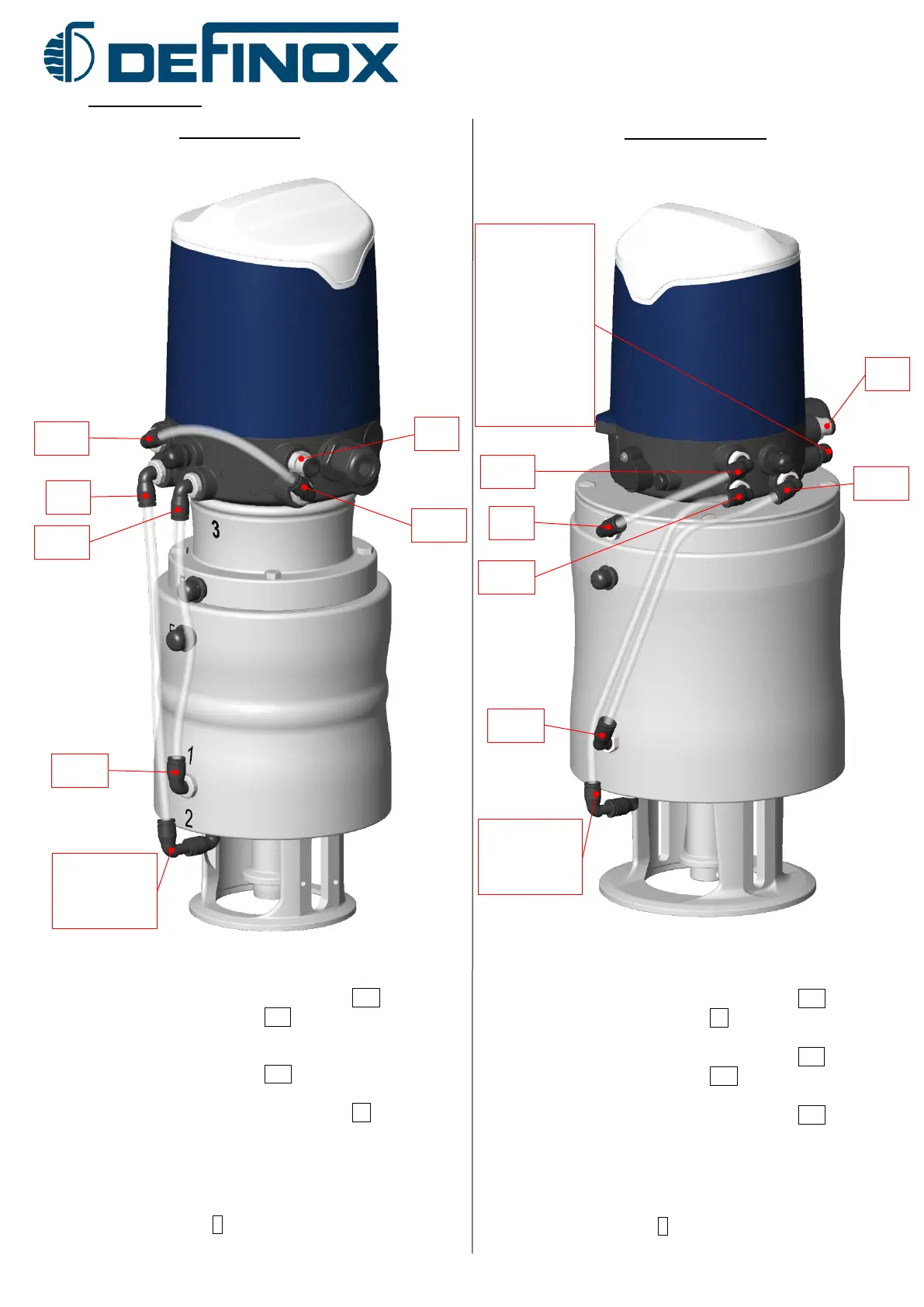

7.4 3EV Sorio
®
unit
7.4.1 On VEOX actuator
• Connect the quick connector square 11a to the
quick connector square 11c with a pneumatic
tube  4/6.
• Connect the quick connector square 11b to the
quick connector square 11d with a pneumatic
tube  4/6.
• Connect the quick connector square 11 to the
smooth square with a pneumatic tube  4/6.
• Wire the electric cables depending on the type
of unit and following the connection diagrams
provided in this manual.
• Restore pressure on channel P using the right
quick connector 7.
7.4.2 On VDCI MC actuator
• Connect the quick connector square 11a to the
quick connector square 11 with a pneumatic
tube  4/6.
• Connect the quick connector square 11c to the
quick connector square 11d with a pneumatic
tube  4/6.
• Connect the quick connector square 11b to the
smooth square with a pneumatic tube  4/6.
• Wire the electric cables depending on the type
of unit and following the connection diagrams
provided in this manual.
• Restore pressure on channel P using the right
quick connector 7.
Smooth
square
11a
11b
Replace
the square
quick
connector
7010116
with a
pierced
plug
7002496
7
11c
b
11d
11
