2.4 LED functions
Standard AGC-4 folio
Automatic Gen-set Controller
VIEW
LOG
Auto
Alarm Inh.
Self check ok
Power
SEL
BACK
MODE
JUMP
START
INFO
STOP
Alarm
Alarm
multi-line AGC
On On
Load
Run
G
AGC - GER (German) folio
Alarm
Alarm
Ein Ein
TEST
HAND
AUTO
KANAL
Power
Selbstest ok
Alarmunt.
Automatic Gen-set Controller
G
multi-line AGC - GER
LOG
START
AUS
Run
LAST
LAMP TEST

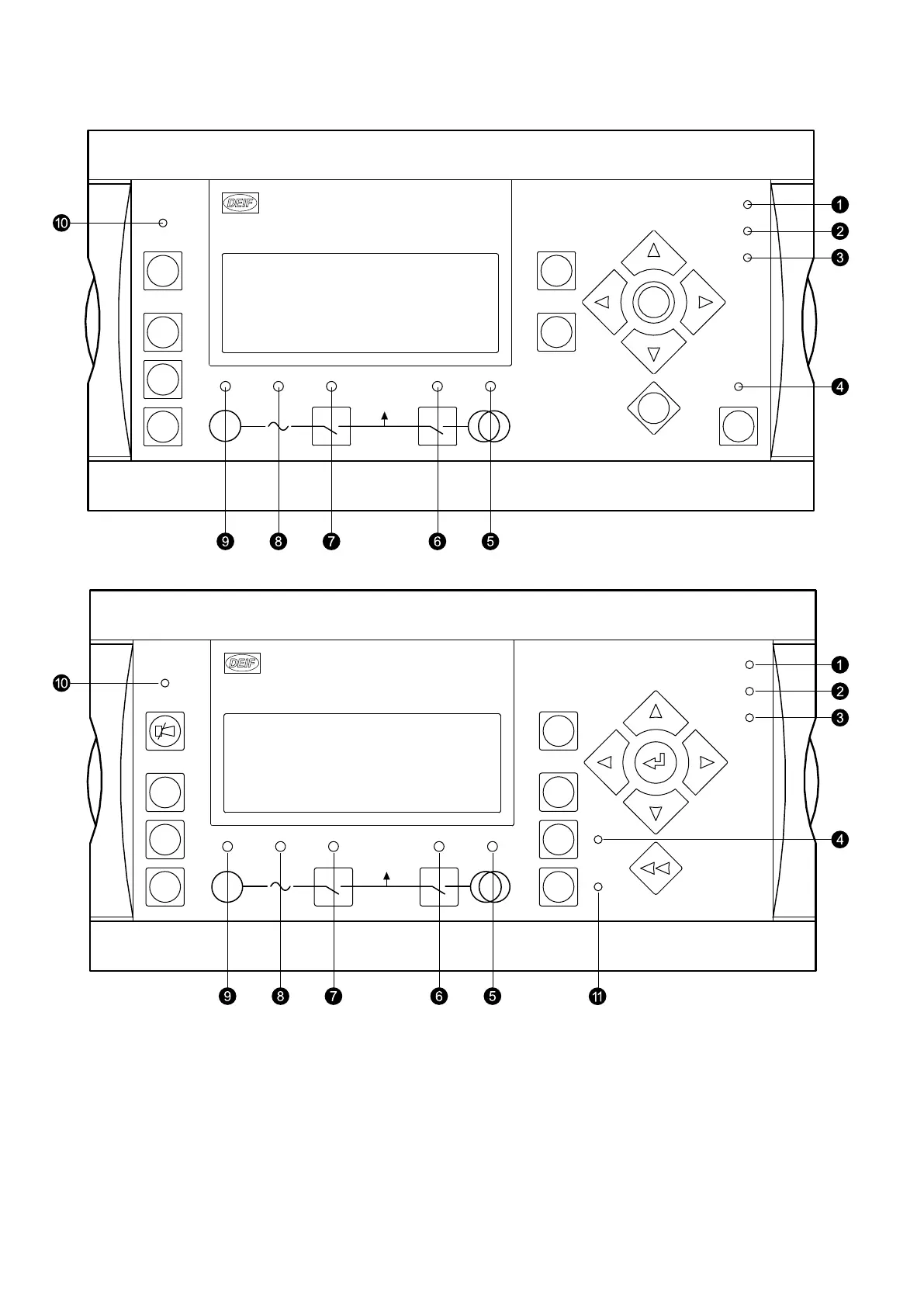

1. LED indicates that the auxiliary supply is switched on.
2. LED indicates that the controller is OK.
3. See Alarm inhibit in the Designer's reference handbook.
• In group and plant controllers, this is the power management CAN bus communication status.
4. LED indicates that auto mode is selected.
• In group and plant controllers, this is replaced by the status LEDs next to the AUTO and SEMI buttons.
5. LED is green if the mains is present and OK. LED is red for a measured mains failure. LED is flashing green when the mains
returns during the "mains OK delay" time.
