3.5.1 Configurable views V1 and V2
V1 and V2 consist of 20 windows to display the values selected during configuration. V1 and V2 are identical. Select the window to
display using the and buttons.
More information
See the Designer’s reference handbook for information about configuration.
3.5.2 Dynamic view V3
The V3 display is dynamic:
• First display line: Status text. This shows the controller running status.
• Second and third display lines: Relevant measured values.
• Fourth display line: Selection line.
INFO
V3 is not configurable. The information shown is determined by the running status.
3.5.3 View menu example

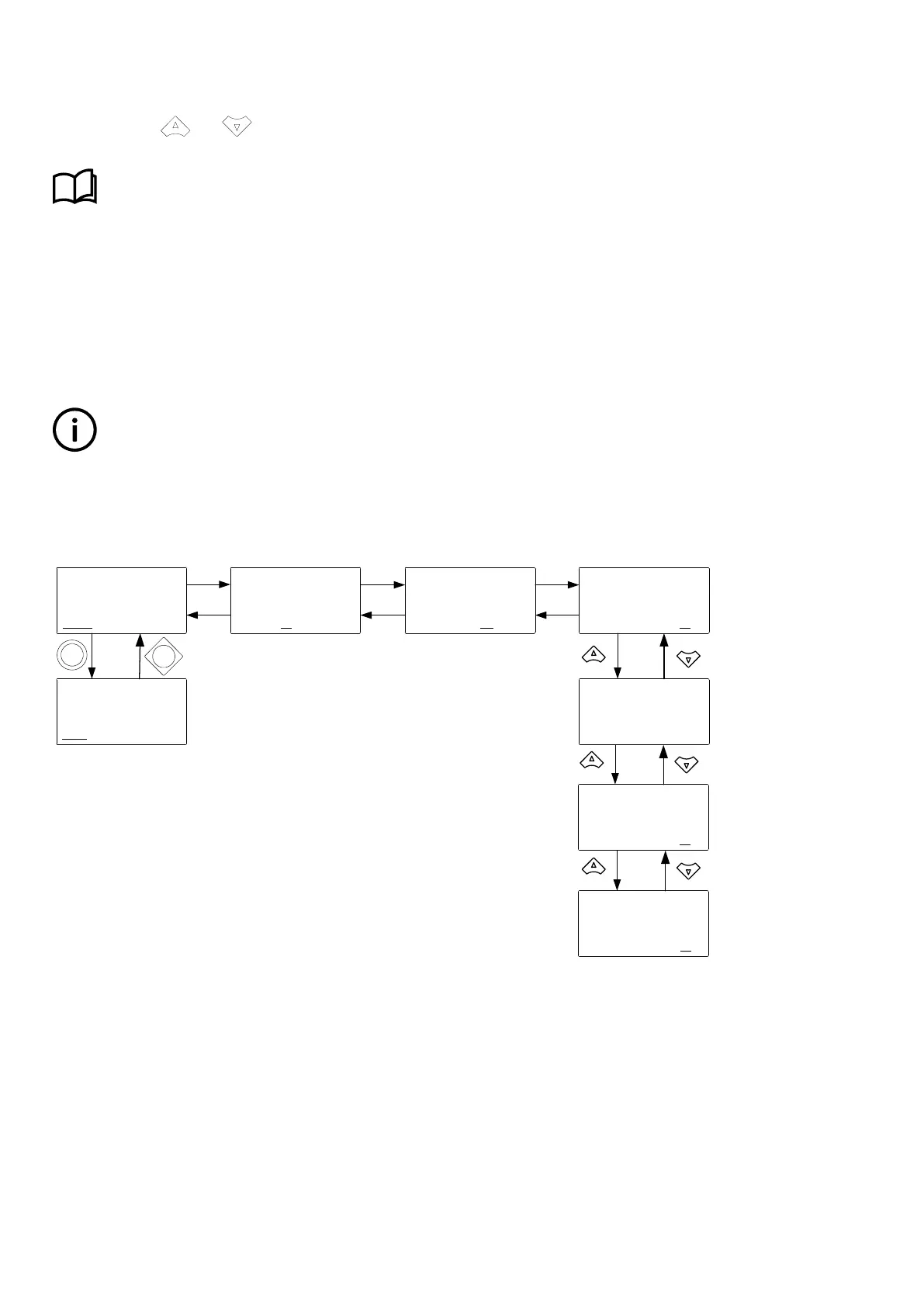

The following is an example of a configured view menu system. In this example, four of the 20 windows in view 1 are shown.
MANUAL
B 440 438 440V
SETUP V3 V2 V1
4.79.0
09.35.542020-01-02
PROT CTRL I/O SYST
f-L1 50.00HZ
PROTECTION SETUP
G-L1 50 Hz
B-L1 50 Hz
440V
440V
I-L1 150A
I-L2 140A
I-L3 150A
G 150 140 150A
U-SUPPLY 24V
SETUP V3 V2 V1
G 439 438 440V
SETUP V3 V2 V1 SETUP V3 V2 V1
B 440 438 440V
G 440 438 440V
G 150 140 150A G 400 438 400V
G 439 440 440V
SETUP V3 V2 V1
SETUP V3 V2 V1
SETUP V3 V2 V1
G 0.90PF 130KW
SEL
BACK
SETUP MENU
AGC
OPERATOR'S MANUAL 4189340690E EN Page 17 of 24
