Deif AGC-4 Operator's Manual

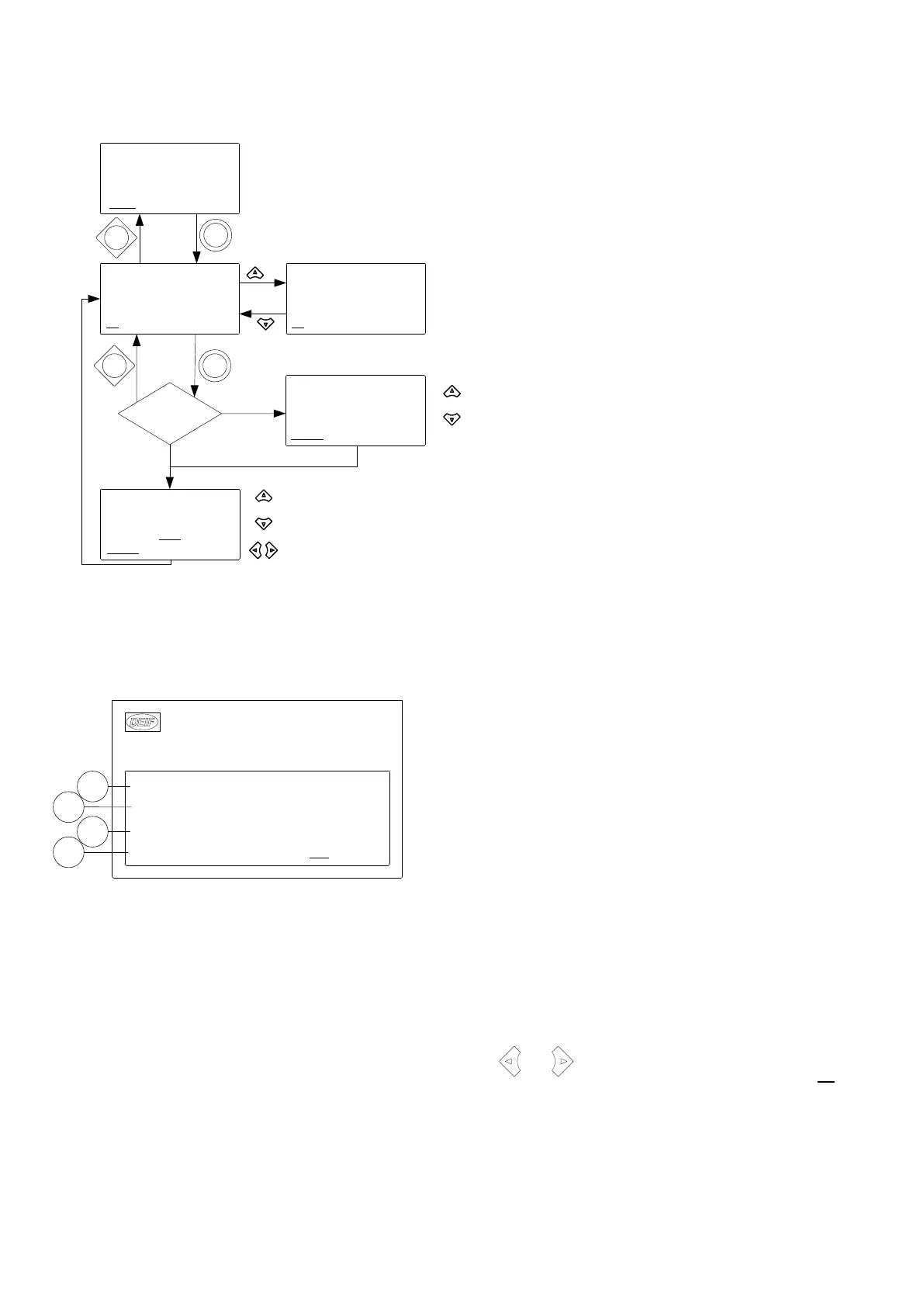

Setup example
This example shows how a reverse power protection set point is changed.
First entry
Increase no.
Decrease no.
Increases setting
Decreases setting
Moves the cursor
YES
NO
PROT CTRL I/O SYST
G 400 400 400V
G f-L1 50.00HZ
PROTECTION SETUP
G 400 400 400V
SP
DEL OA OB ENA FC
1000 G -P> 1
Setpoint -5.0%
G 400 400 400V
SP
DEL OA OB ENA FC
1010 G -P> 2
Setpoint -5.0%
ENTER
Enter passw. 2010
G 400 400 400V
RESET SAVE
1001 G -P> 1
-50.0 -5.0 0.0%
G 400 400 400V
BACK
BACK
SEL
SEL
3.5 Views
The view menus (V1, V2 and V3) display a variety of measured values.
1
2
3
4
Automatic Gen-set Controller
multi-line AGC
G-L1 50 Hz 440V
SETUP V3 V2 V1
G 400 400 400V
G-L1 50 Hz 440V
1. Measurements (V1 and V2) or status (V3)
2. Measurements
3. Measurements
4. Selection of setup and view menus
Navigation
The operator can select the view by moving the cursor (line 4) using the
and buttons. The cursor is the underscore (V1 in
the drawing above).
OPERATOR'S MANUAL 4189340690E EN Page 16 of 24
