Setting of digital output: DO1+2 (MIB 7020 only)
MIB 7020 has two digital outputs. Each can operate as energy pulse or
alarm output.
Accessing parameter settings for the 2 digital outputs:
and simultaneously: System parameter setting mode
: 1 step down
and simultaneously: DO parameter setting mode
and simultaneously: Exit DO and go to system parameter setting mode
and simultaneously: Exit system parameter setting mode and go to
display mode

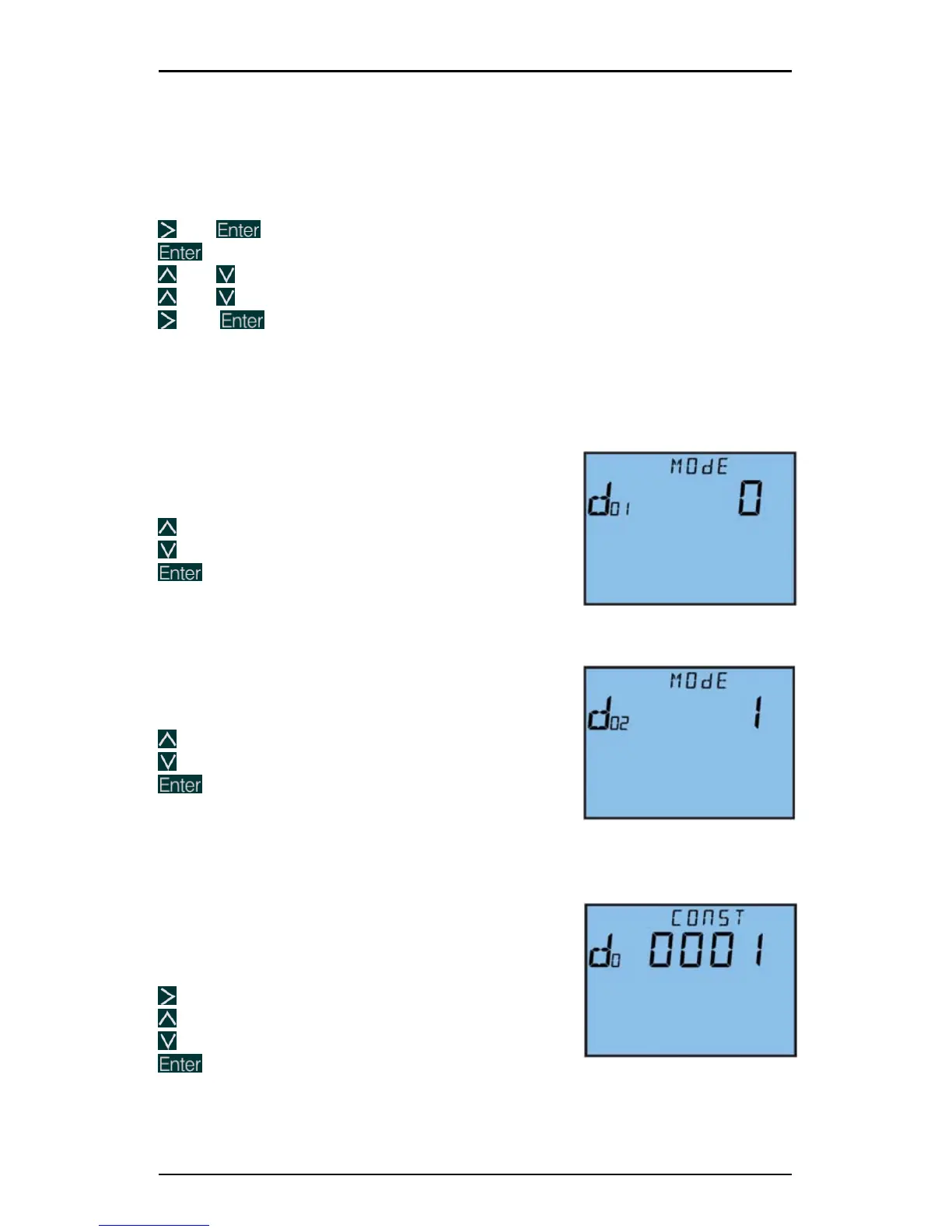

The following screens show how to set up the DO:
Screen no. 1
DO1 output mode:
0 = pulse output.
1 = alarm output.
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO1 set to pulse output
Screen no. 2
DO2 output mode:
0 = pulse output.
1 = alarm output*.
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: DO2 set to alarm output
*Jump to screen no. 7
Screen no. 3
Pulse rate:
Pulse rate means the amount of energy per pulse.
Integer from 1 to 6000.
1 digit is 0.1KWh or 0.1KVArh.
to move the cursor one digit at a time
to increase the digit
to decrease the digit
to accept changes and move to next screen
Example: Pulse rate is 1 x 0.1KWh (1 pulse/0.1KWh)
