10.2.2.2 Auto Day/Dusk/Night Colour shift
This function works similar to auto Day/night shift, but has an extra step for dusk.
10.2.2.3 Auto shift setup menu

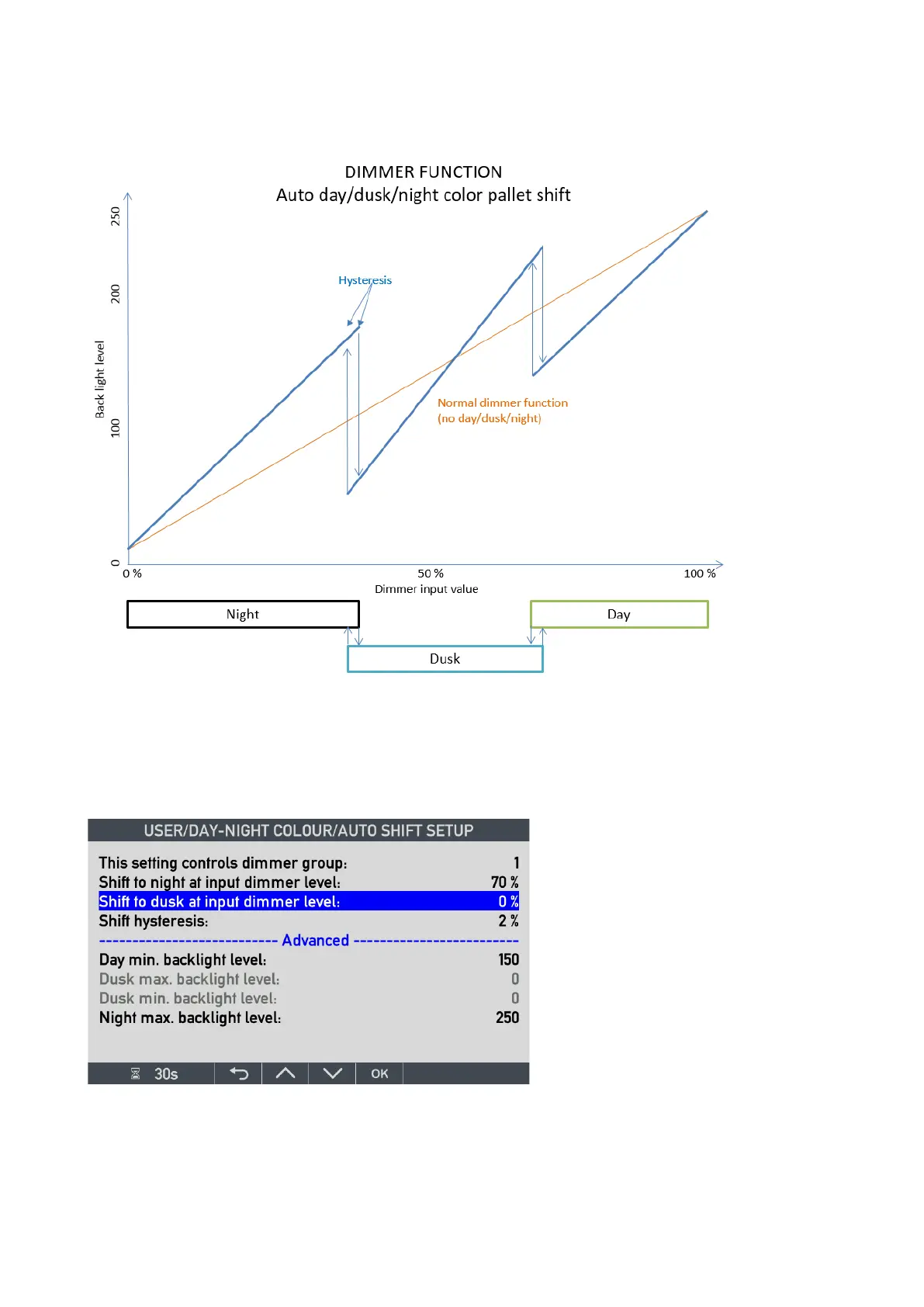

If auto colour shift is activated, the menu below will be available for fine-tuning the parameters. For example, adjust
the backlight levels to best match the actual location of the indicator.
In the example above, the indicator is in Auto Day/Night mode, and the shift is at 70 % with a hysteresis at 2 %.
This means that the shift will happen at 70 % +/- 2 % depending on the direction of the dimmer adjustment.
(The dusk setting is 0 % because it is not used in this mode.)
Day min. backlight level at 150 means that the backlight level at dimmer level 70 % will be 150, that is just before
the shift to night colour.
