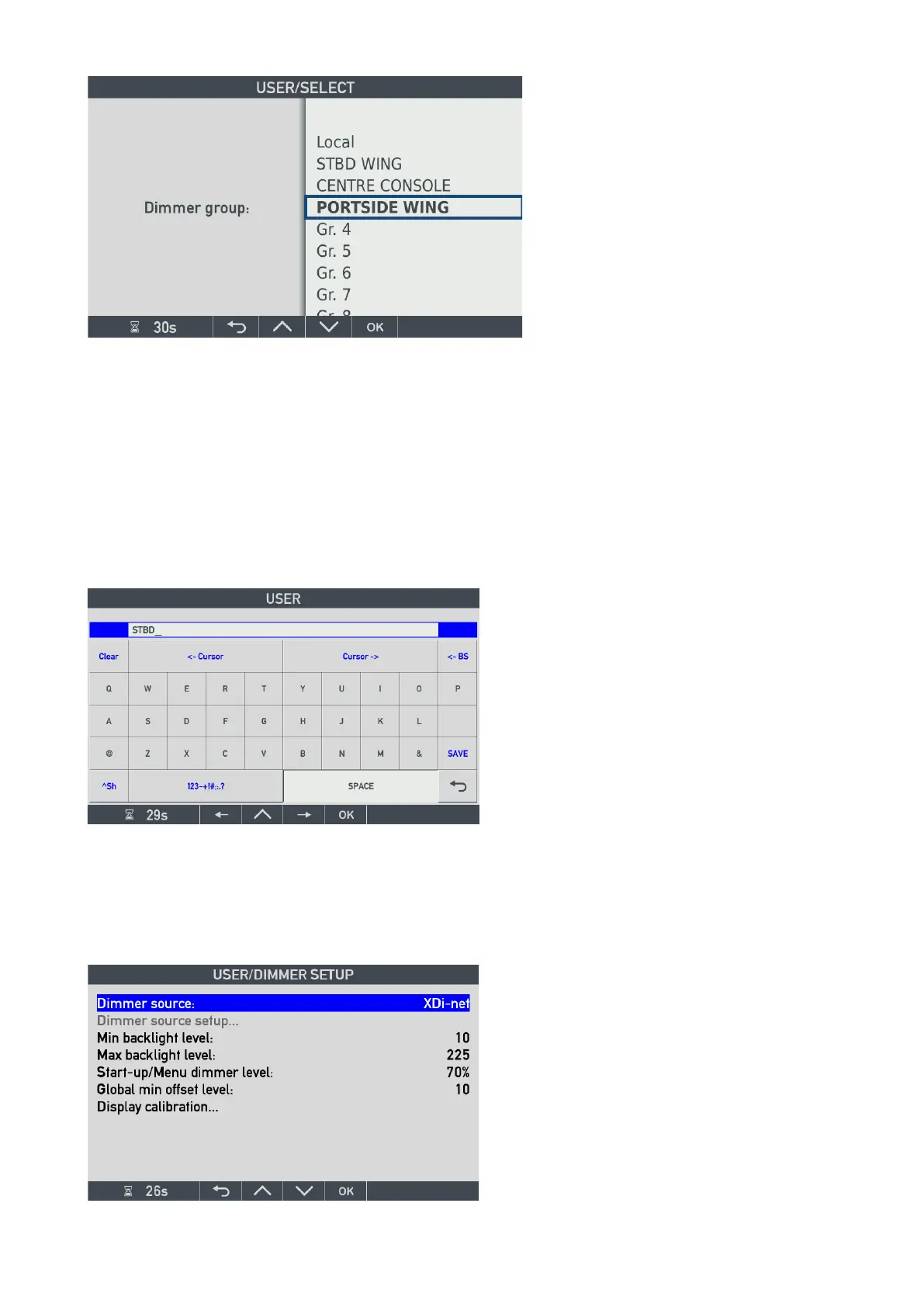

DESIGNER’S HANDBOOK 4189350049C EN Page 111 of 206
10.1.3.2 Local mode
In “Local” mode, the XDi will respond to a dimmer command sent to the local dimmer group index or get the
analogue or digital dimmer input from an extension module mounted on this XDi unit. In local mode, the XDi will not
share analogue or digital dimmer data via XDi-net.
10.1.3.3 Edit the dimmer group name
In addition to the dimmer group number, each dimmer group may have a describing name.
The name will normally be predefined in the PP, but it can also be added or changed via the “Edit dimmer group
name…” menu, using the onscreen virtual keyboard.
Highlight a key using the arrows and press OK to select.
SAVE: remember to finalise the editing process by
selecting the SAVE button, or your changes will be lost.
If this display reaches time-out, it will step one level back and changes will be lost.
10.1.4 Dimmer setup
The predefined dimmer settings from the selected product profile (PP) may be changed via the user menu.
