To toggle to Profile 2, push the “OK” button shortly and push the left button to go back to normal operation.
The toggle function on the “OK” front button (button 4) makes it possibel to to change unit using only two buttons -
button 4 and button 1. This means that unit shift can also be performed via two external pusbuttons connected to
the two contact input on the NX module (input: C-IN1 and C-IN2). See also: “How to activate NX external
pushbutton inputs” in connection with chapter “VI mode group setup” in this document.
8.3.2 Change unit profile setup
Wind speed can be presented in the following units: m/s, knot, Beaufort, km/h, MPH. To change the wind speed
unit in one of the unit profiles, select “Unit profile” in the quick menu, and highlight the profile that you want to edit.
Press OK to open the profile for editing.

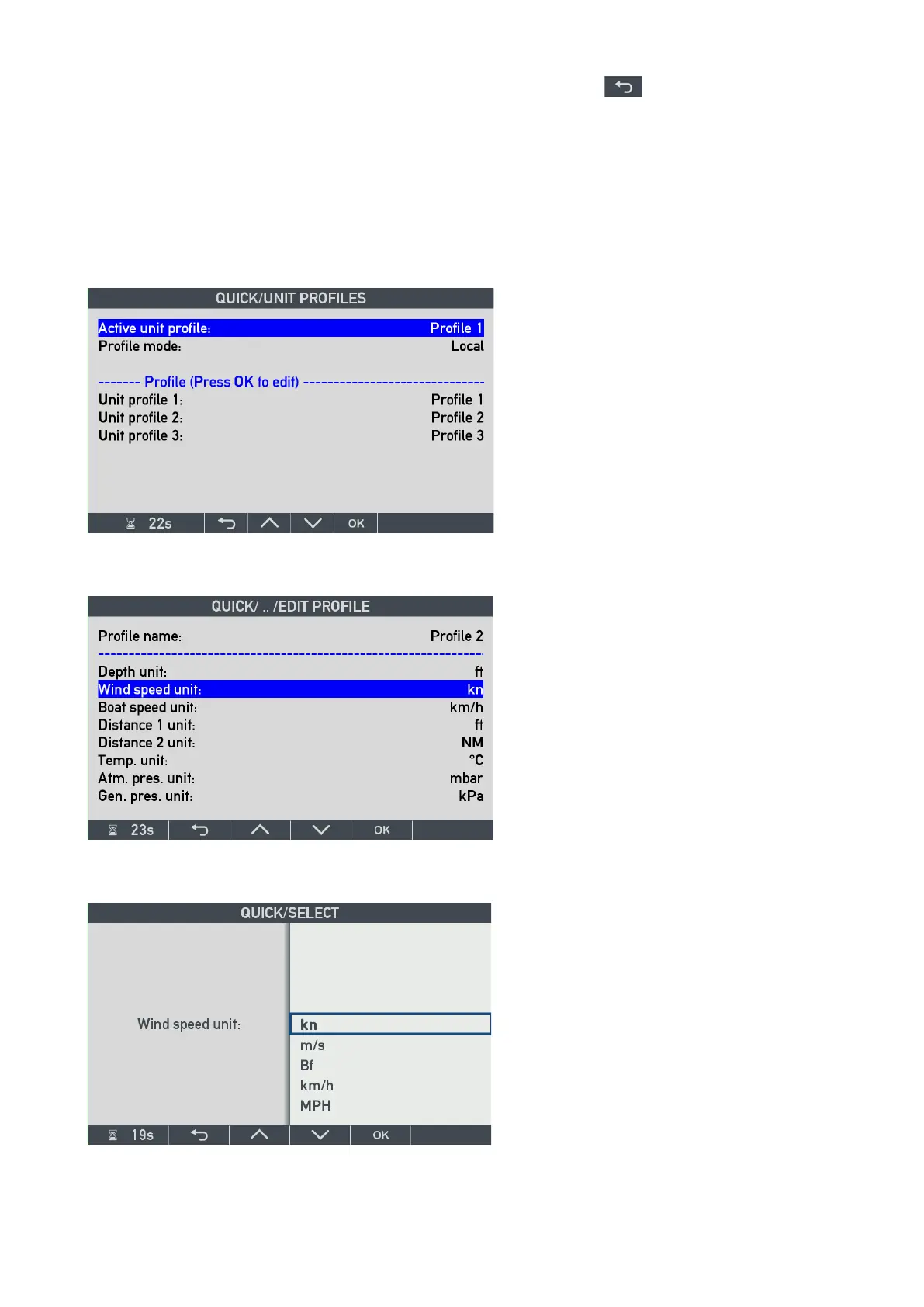

Highlight and press OK on Profile 2 to open it for editing:
Highlight “Wind speed unit” and press OK:
It is now possible to select another unit from the list.
The active profile can also be changed
from this menu.
Profile mode can be “Local” or “Global”.
In local mode, only this indicator is
affected by a profile shift.
In global mode, this indicator is
synchronised with other indicators on the
CAN bus (see description in the next
chapter).
The profile name can be edited by
highlighting and pressing OK. The virtual
keyboard will appear, and a more
informative name for the unit profile can
be typed in.
