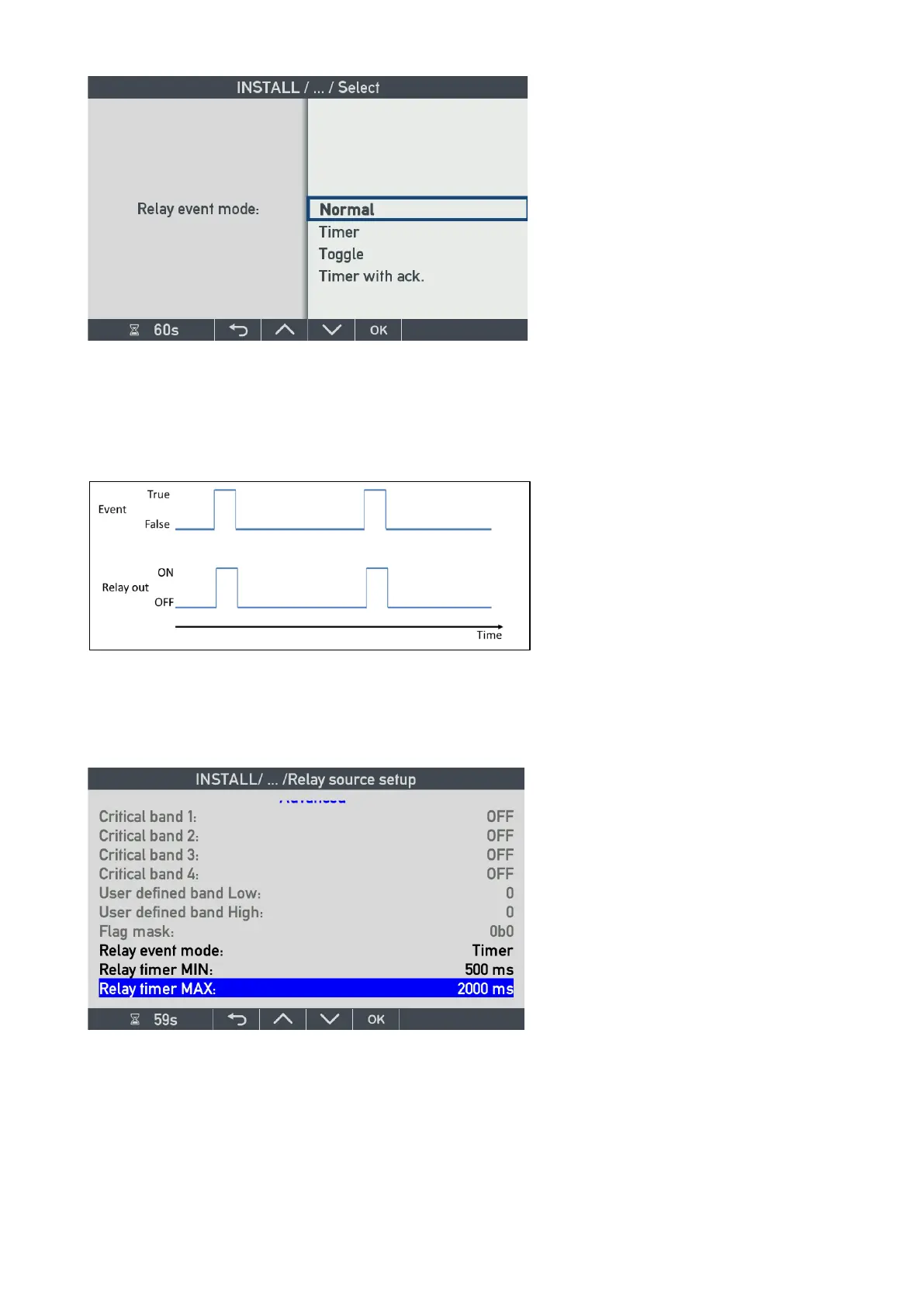

11.11.3.1 Normal mode
The relay will act directly on the event. When the event occurs (true), the relay will be activated and stay activated
as long as the event is true and first deactivate when the event disappears (false).
Relay in ND mode
11.11.3.2 Timer mode
This is a function that runs every time the event occurs, but only once, so the event has to disappear, before the
timer function will be able to run again.
The two timing parameters “Relay timer MIN” and “Relay timer MAX” can be predefined or changed via menu to
one of the following selections: disabled, 500, 1000, 1500,… 30000 ms (steps of 500 ms until 10000, 1000 ms from
10000 to 30000).
