Special acknowledge setup 1

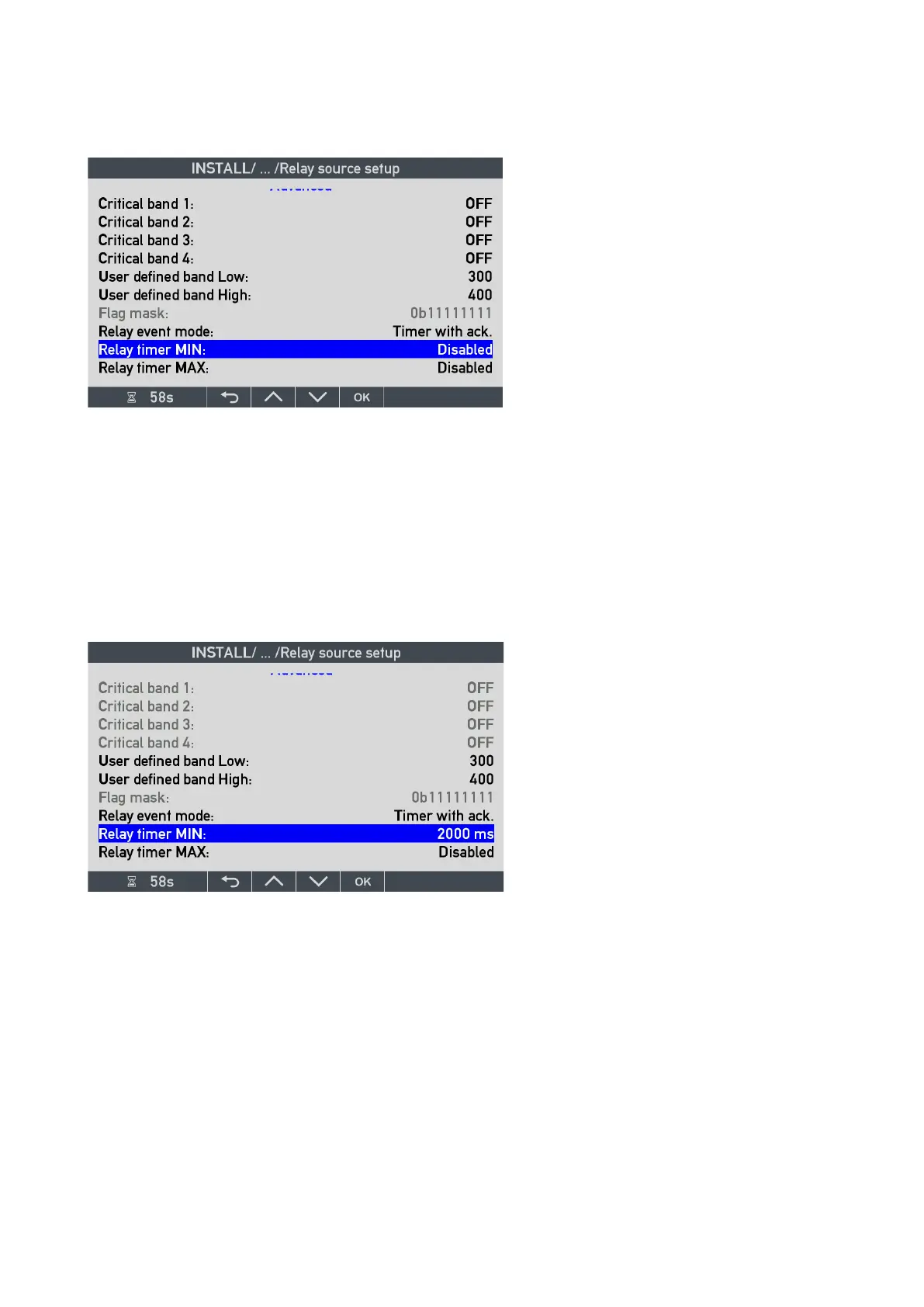

In this mode you can set the Relay timers to “Disabled”,
If you disable both “Relay timer MAX” and “Relay timer MIN”
The relay will activate immediately when the rudder angle exceeds 30° and it will stay active until you make an
acknowledge by pushing any of the front buttons.
Even if the rudder again moves into the normal sector below 30° the relay will stay activated.
Special acknowledge setup 2
The “Relay timer MIN” has a slightly different function when “Relay timer MAX” is disabled, the minimum timer will
act as a delay.
In this example with Relay timer MIN at 2000ms the relay will first activate when the rudder has stayed at, or above,
30° for the 2 second period and it will then stay active until you acknowledge by pushing any of the front buttons.
Note: Even if the rudder again moves into the normal sector below 30° the relay will stay activated until it is
acknowledged.
11.11.3.4 Toggle mode
The toggle mode is another way of controlling the relay output timing when it is triggered by a given event.
For events shorter than “Timer Min.”, the relay output acts like in normal mode event and relay output have the
same length. But if the event is longer than “Timer Min.”, then the relay output will be forced OFF when the “Timer
Min.” limit is reached.
