DESIGNER’S HANDBOOK 4189350049C EN Page 164 of 206

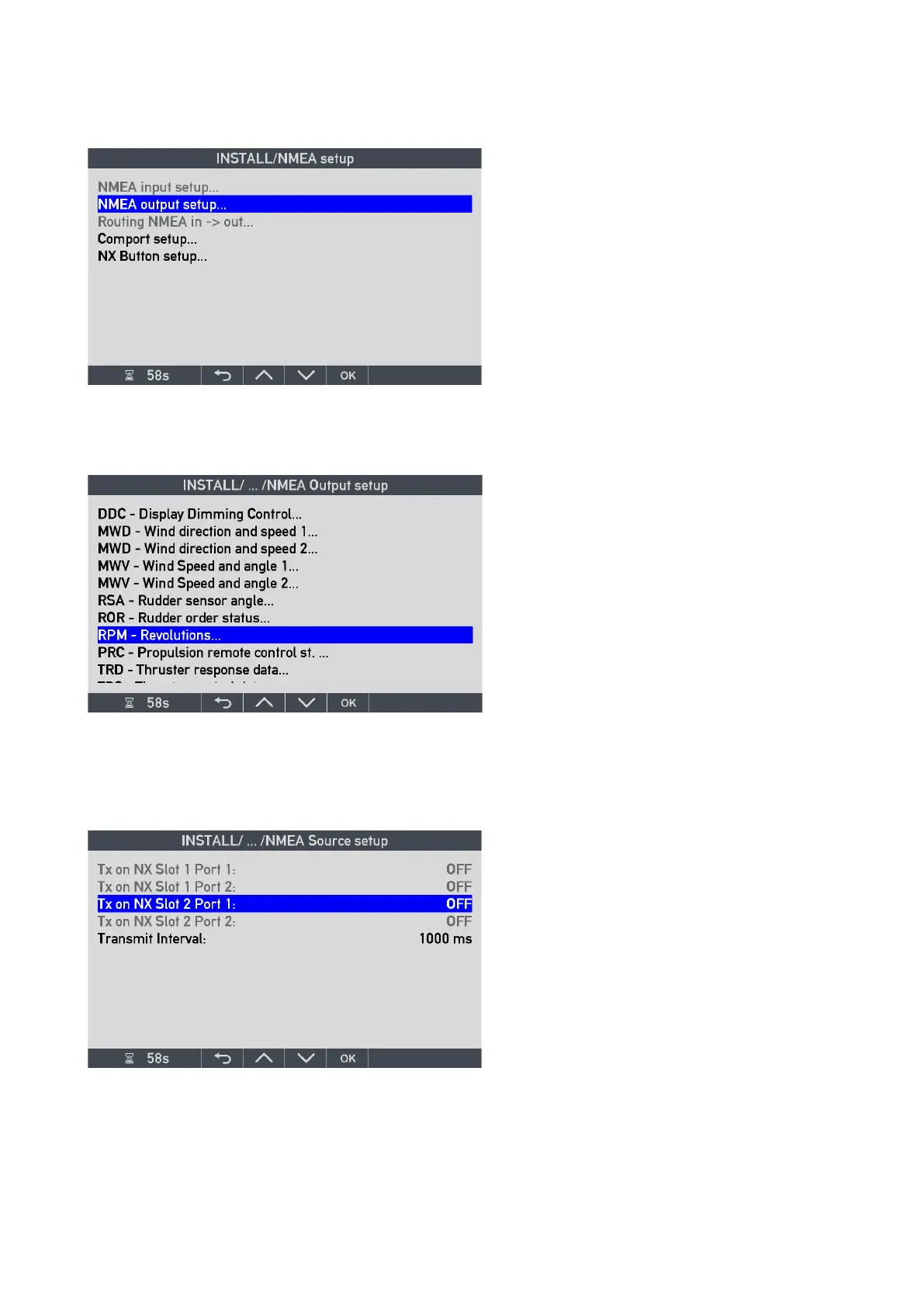

To change the default settings of the supported NMEA sentences shown in the menu below, simply highlight the
sentence line and press OK to open the setup menu.
If no NX1 module is mounted on the XDi, the NMEA output setup menu line cannot be selected (greyed out).
If you press OK on the highlighted menu above:
It is only the data types that is relevant for the selected indicators that you can enter and activate.
The NMEA sentence RPM is opened for editing by highlighting “RPM – Revolutions…” and press OK.
NX1 has only one NMEA output port, Port 1. The greyed out Port 2 is only available if NX2 module is used.
In this example, you can only select to send RPM data on “Slot2 Port1”.
