DESIGNER’S HANDBOOK 4189350049C EN Page 166 of 206
When the user menu is open, press the “secret button combination” 2 and 3 for more than 5 seconds to open the
installation menu.

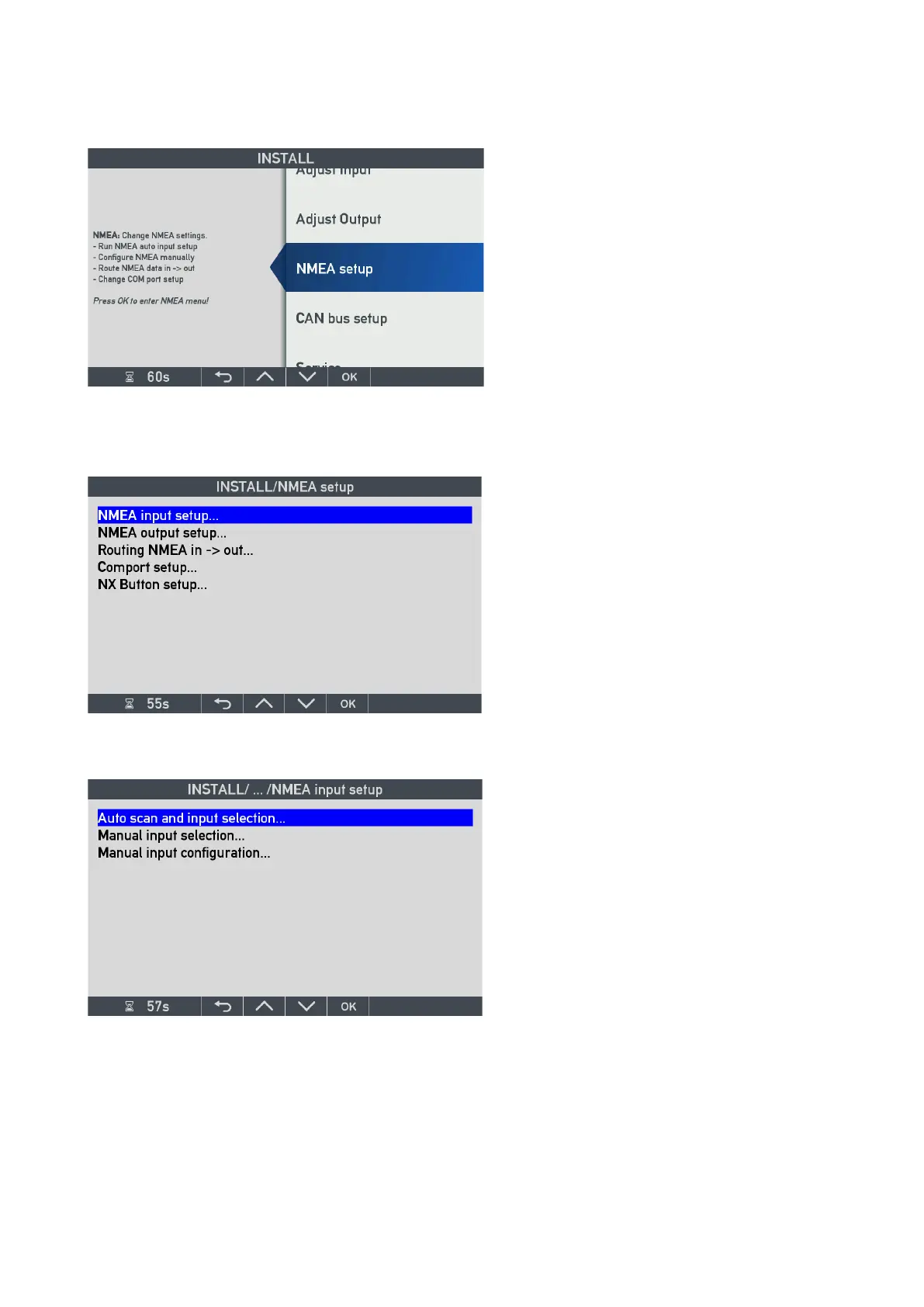

In the installation menu highlight “NMEA setup” and press OK
Select NMEA input setup….
If a new NMEA source is added or a source is moved to another input port, you must run the auto scan again to
update the list of available data sources.
Please note that XDi is not allowed to make source changes automatically, even if a source is no longer available.
So XDi will keep the locked source selection until you change it manually.
To change a source, you must enter the manual input selection menu, open the data group where you want to
make a change and then open the actual data type to select another source.
