(Orange set points can be disabled from menu).
XDi units in this system are all multi-versions, but if there is no need for set point (orange) the Dual version can be
used instead.
13.1.1.1 Dynamic azimuth pointer

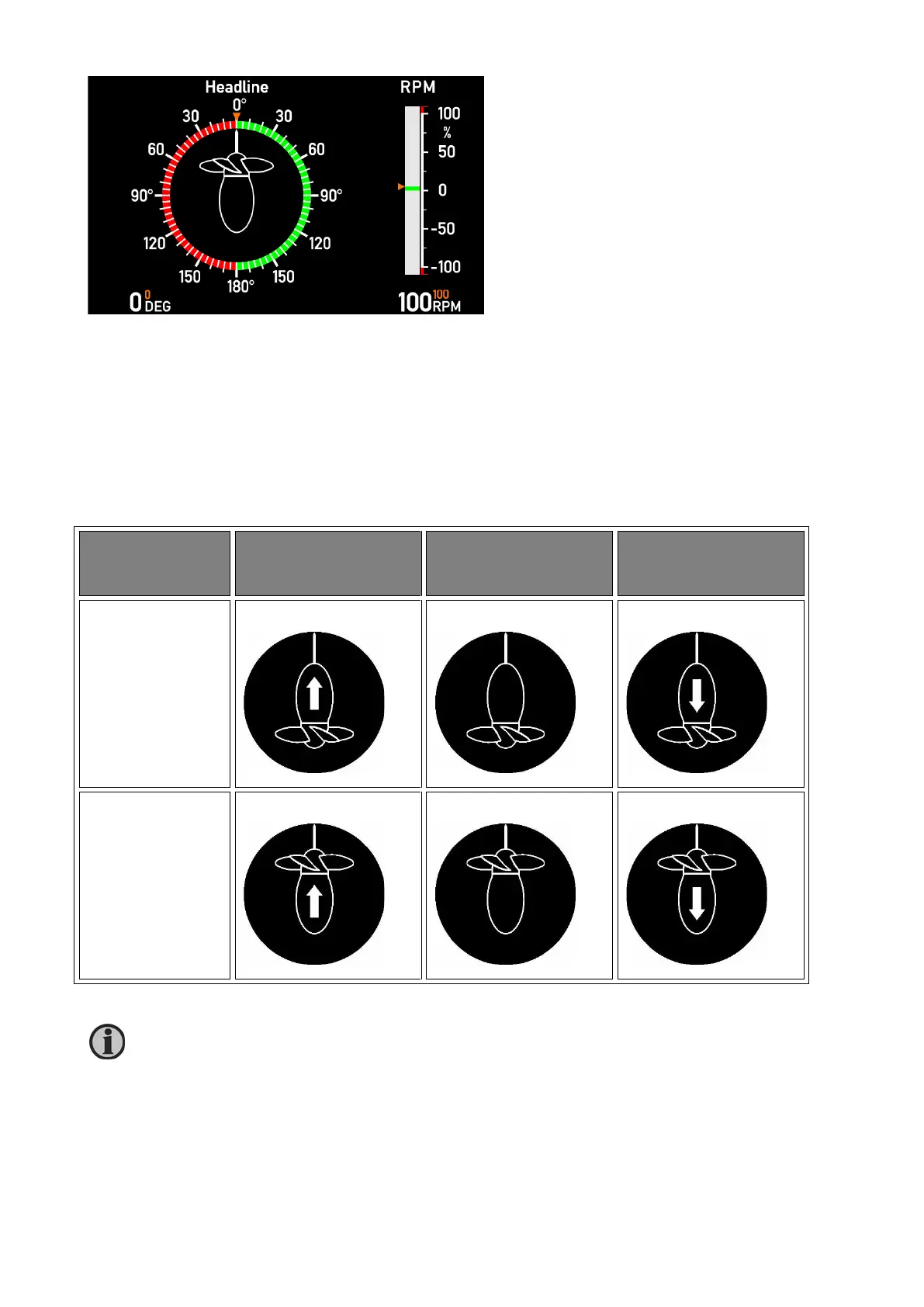

The dynamic azimuth pointer is used when the direction of the thrust shifts depending on either RPM or %Pitch.
The symbol is only used on indicators, on which the thrust direction can be reversed.
Thruster type
Forward
RPM or %Pitch
No RPM or %Pitch
(<2 %)
Reverse
RPM or %Pitch
Pushing azimuth
thruster
Pulling azimuth
thruster
The dynamic azimuth pointer may also be used in azimuth indicators where +/- %thrust,
+/-power or +/-%power controls the arrow in the pointer symbol.
