DESIGNER’S HANDBOOK 4189350049C EN Page 97 of 206

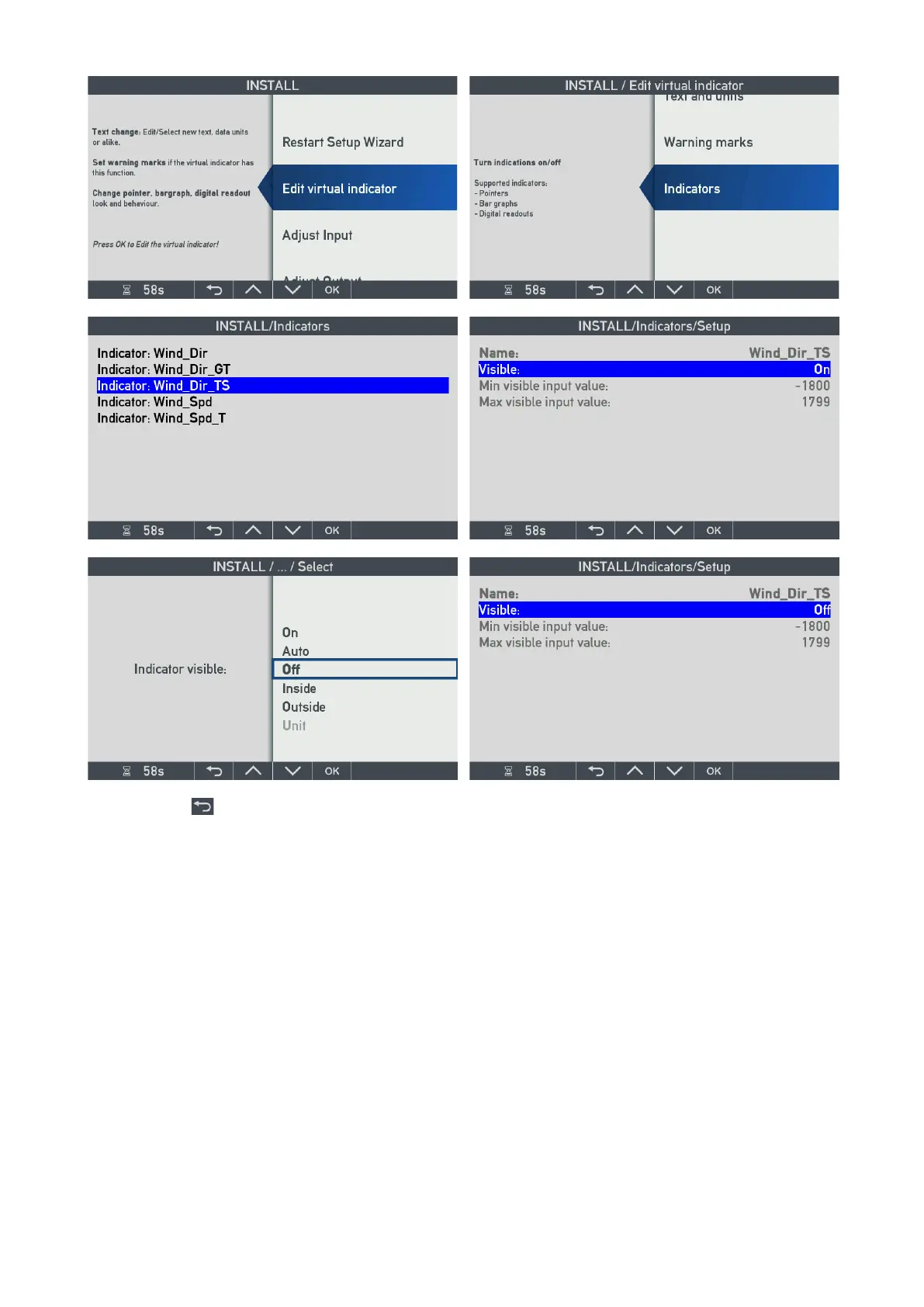

Now press the several times to return to normal operation where you now can toggle between screen 1 and 3

without getting a data lost warning.

Note: In this case it is only the true wind direction relative to ship that needs to be disabled. The True wind speed is

always the same and independent of which reference is used for the true wind direction (the ships bow or the north

pole).
