3 Description of the Equipment 6
DEKEMA Dental-Keramiköfen GmbH, AUSTROMAT
®
D4, Version 3, 2006
3.2 BACK

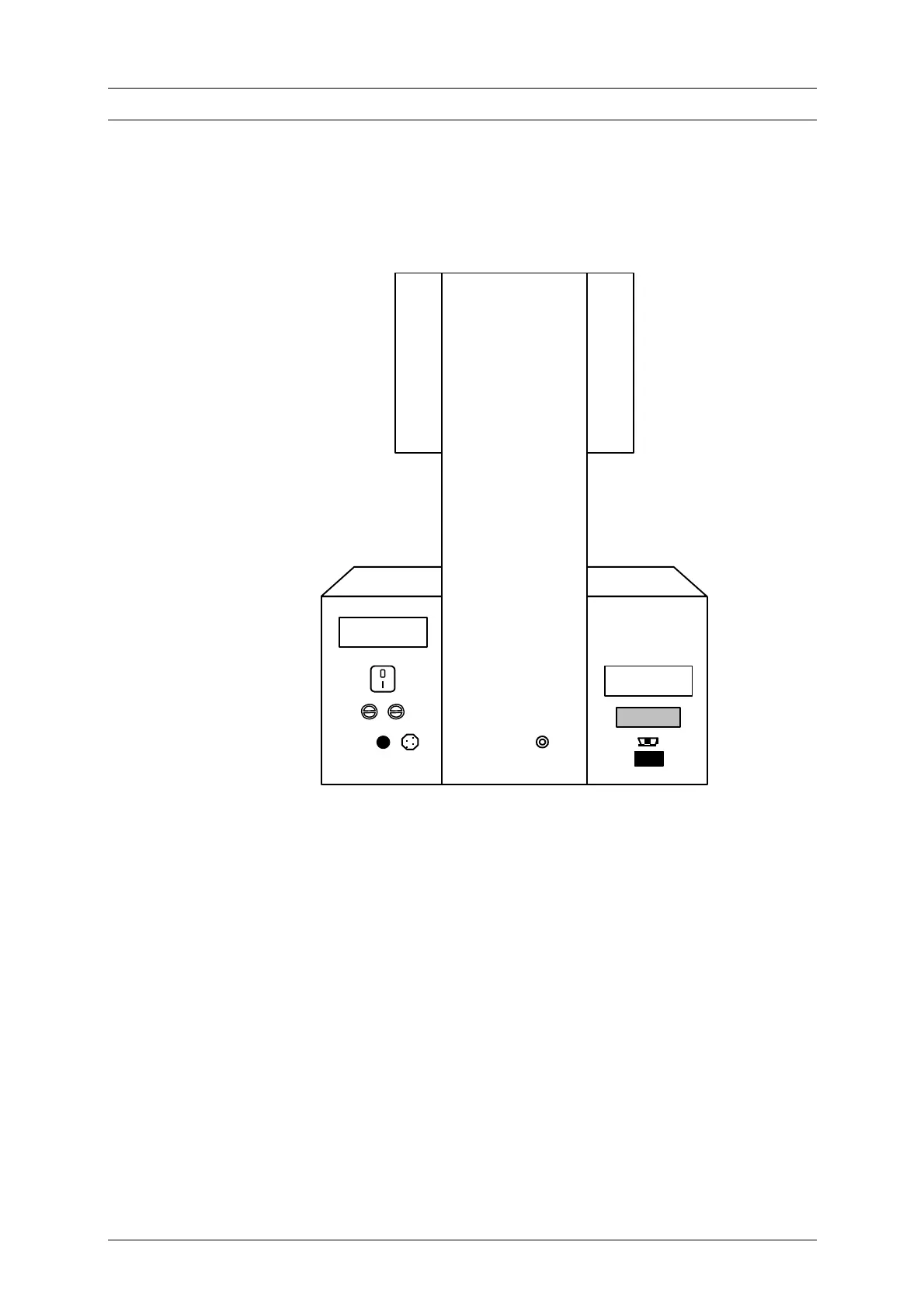

Figure 2
Back of the
AUSTROMAT D4
On the back of the bottom section of the furnace you will find the main ON/OFF
switch, the battery compartment, a label with the production number, the fuses, and
the fixed power cable.
The following connections exist: one plug connection with two clips to hold the soft
or memory module, a serial interface for a PC connection (top socket connector) the
socket connector for the vacuum pump power cable, and a connection for the
vacuum line.
top section of
furnace with
firing chamber
back column
bottom section of furnace
with electronic and
mechanical components
mains cable
connection vacuum pump vacuum tube
serial interfaces
fuse
battery
com
artment
ON / OFF
switch
production
number
software /
memory module
cover plate
