V0413, 20
4.3 Tool programming
In order to program or modify a tool select the tool symbol in the
menu bar. A total of 15 different tools can be programmed.
A tool is programmed by entering a few essential tool values.
These values will be used for automatic bend depth calculation
during bend programming.

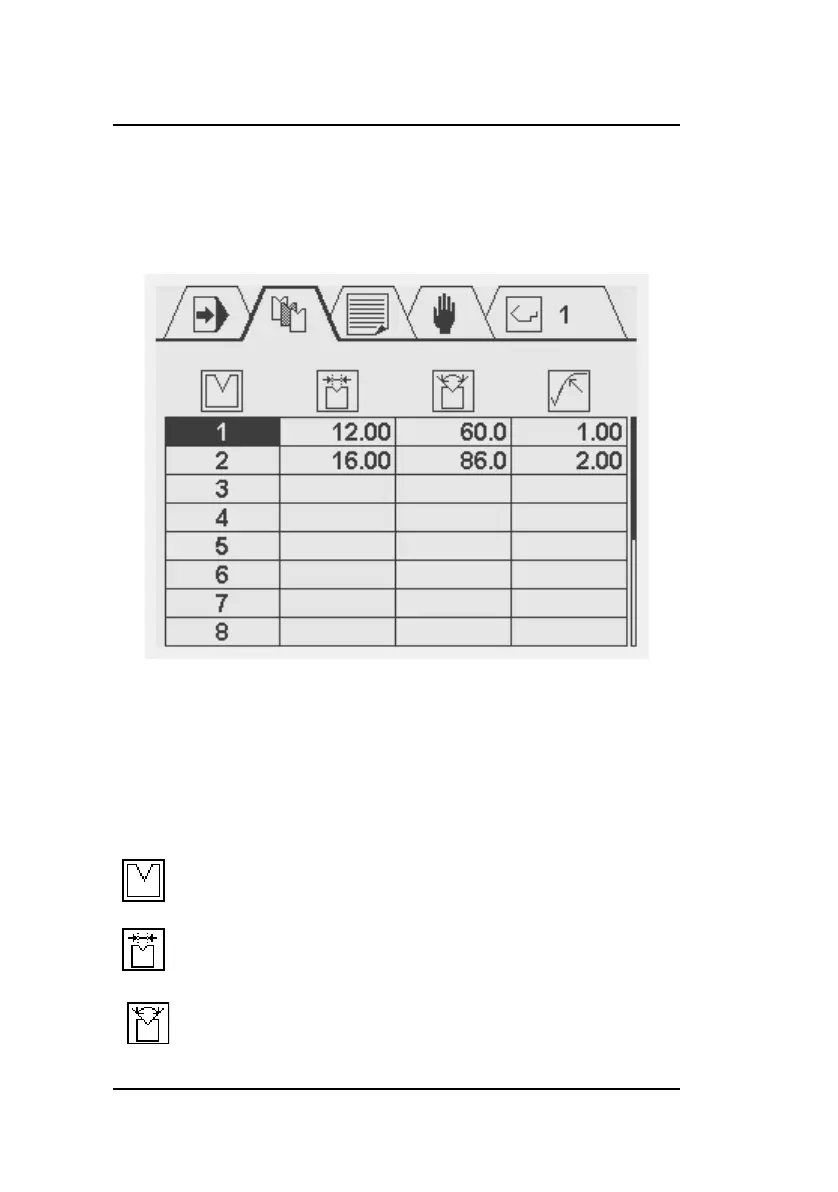

At the top of the tools window, four general tool properties are
shown:
Tool number. Range: 1 - 15.
V-opening of the die.
Angle of the die.
