b. Using a Phillips #2 screwdriver, secure the LOM filler bracket to the chassis with a screw

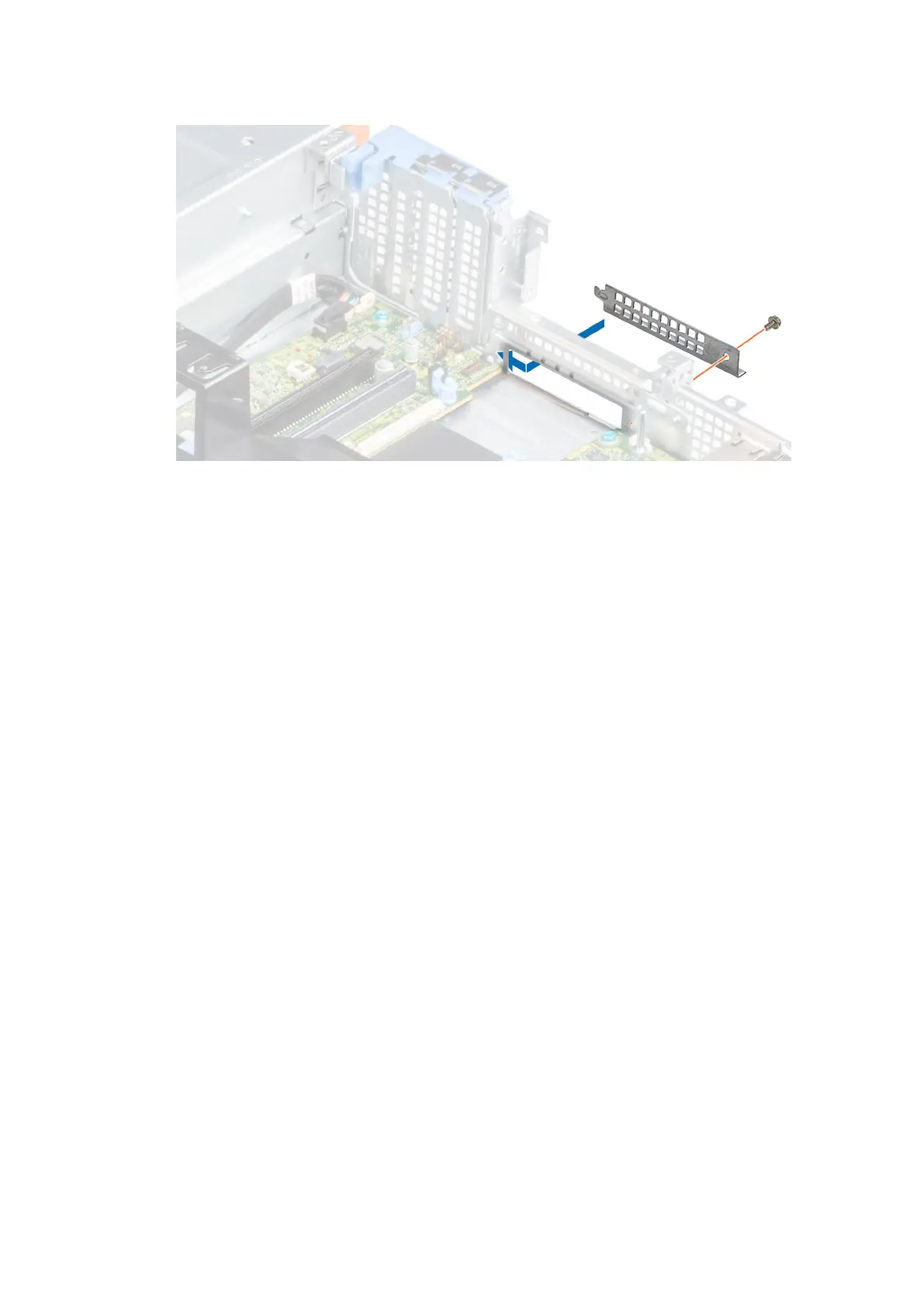

Figure 102. Installing the LOM filler bracket
Next steps
1. Replace the LOM riser card.
Installing the LOM riser card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 43.
2. Follow the procedure listed in the Before working inside your system on page 44.
3. Remove the air shroud.
4. If applicable, remove the rear drive cage.
5. Remove the expansion card riser.
Steps
1. Remove the LOM filler bracket.
a. Using a Phillips #2 screwdriver, remove the screw that secures the bracket to the chassis.
b. Slide the LOM filler bracket out of the slot on the chassis.
Installing and removing system components
115
