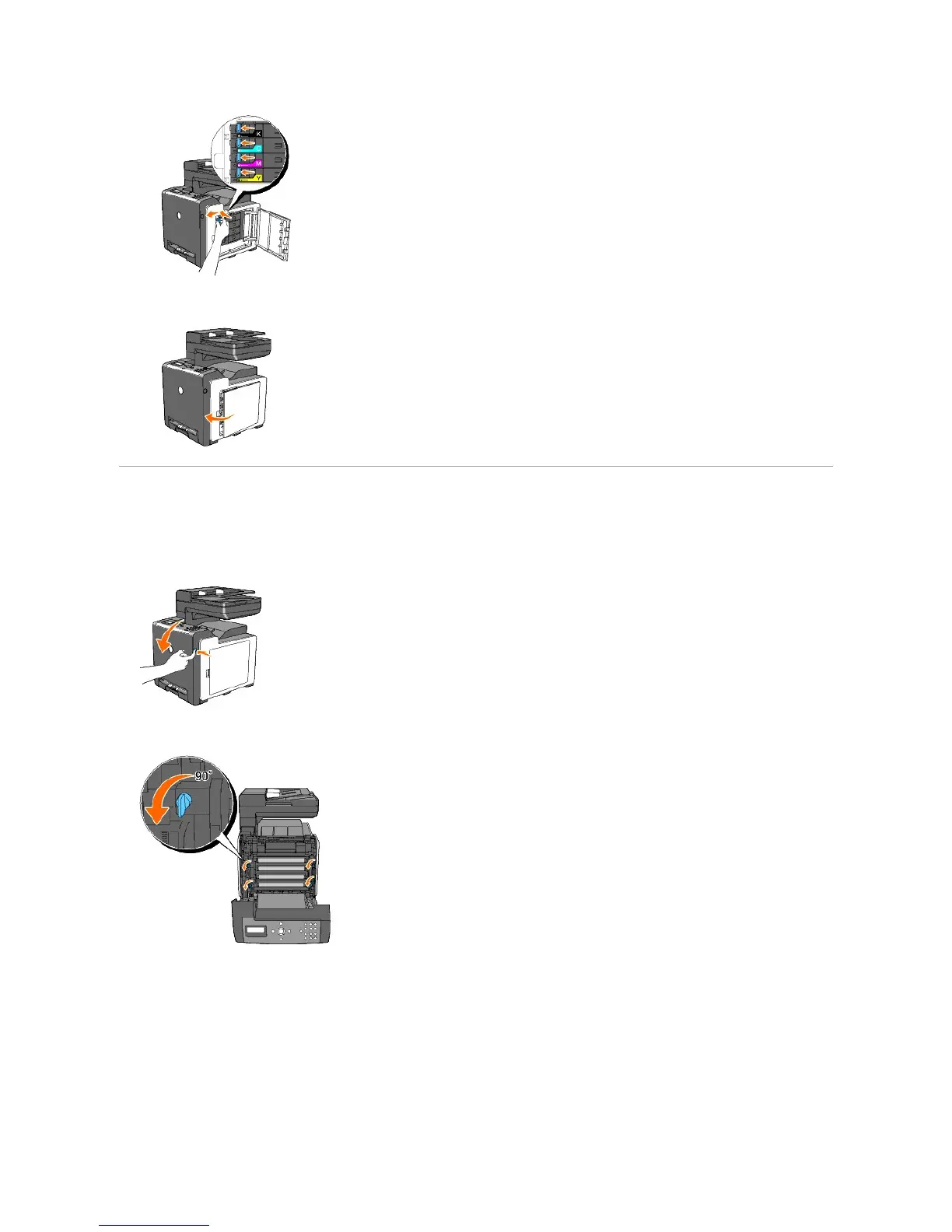

3. Close the side cover.

Replacing the Print Head Device (PHD) Unit



1. Ensure that the printer is turned off.



2. Press the side button and open the front cover.



3. Turn the four PHD lock levers counterclockwise.



4. Pull the PHD unit out of the printer.
