Installing the PHD Unit



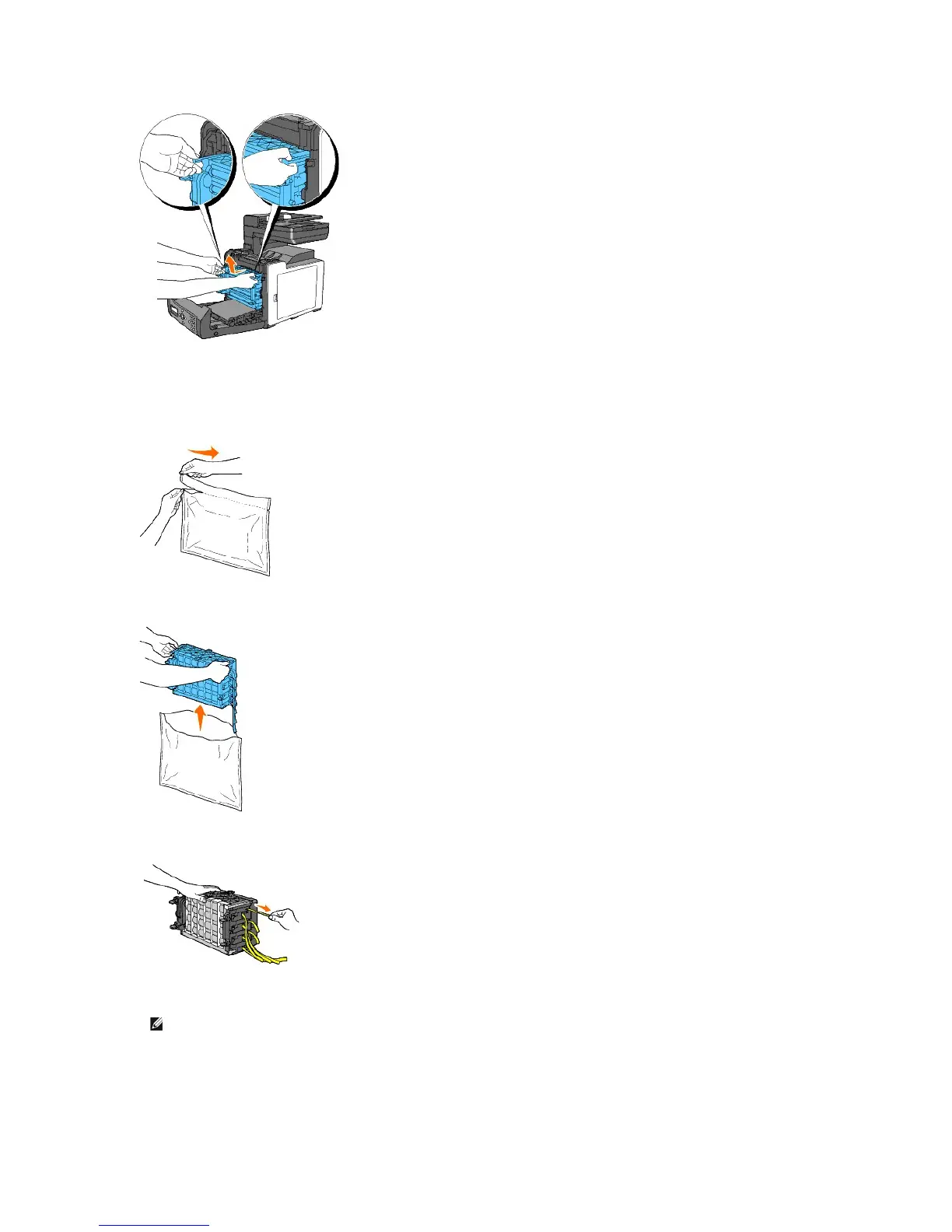

1. Open the PHD packaging.



2. Pull out the PHD unit from the packaging.



3. Completely remove the eight yellow ribbons from the PHD unit.



4. Remove the rear protective cover from the PHD unit.

NOTE: Do not remove the front protective cover at this moment.
