Dell C5519QA - Pin Assignments

Appendix | 63
Pin assignments

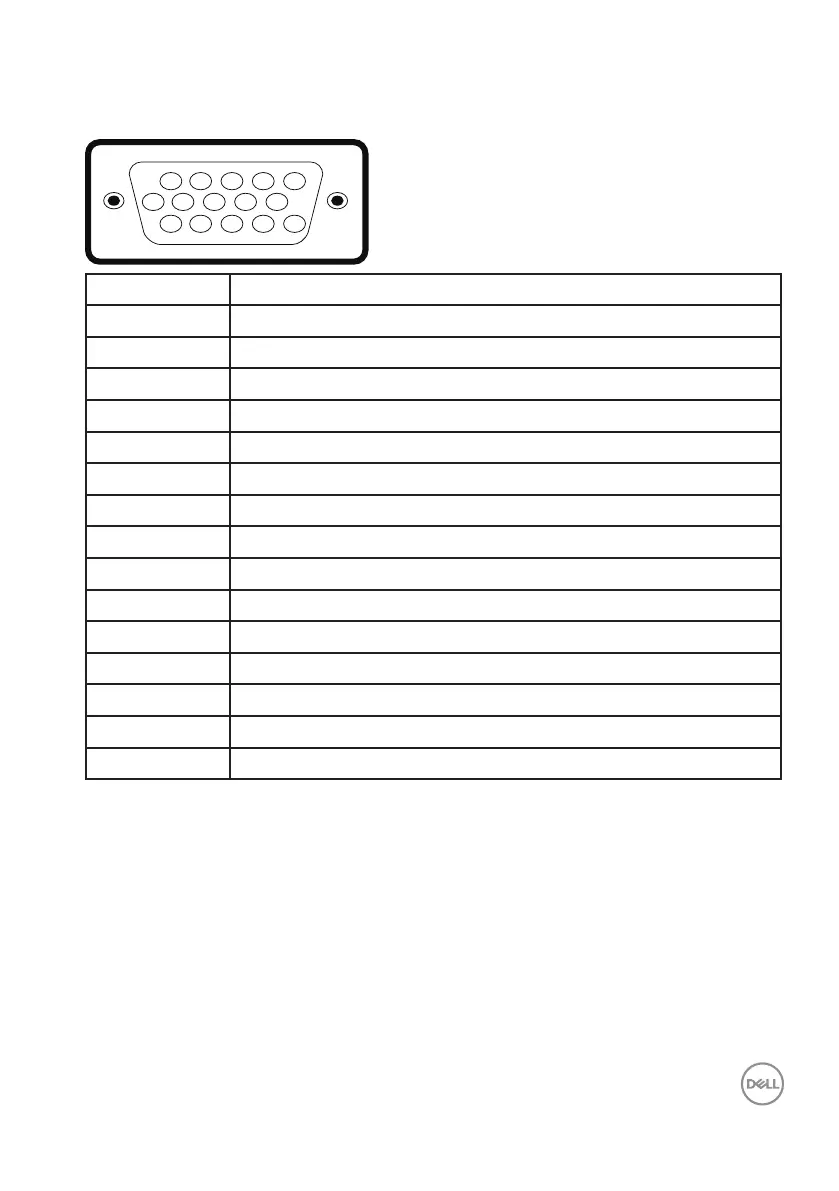

VGA connector
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
Pin number Monitor side of the 15-pin side signal cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
