Appendix | 69

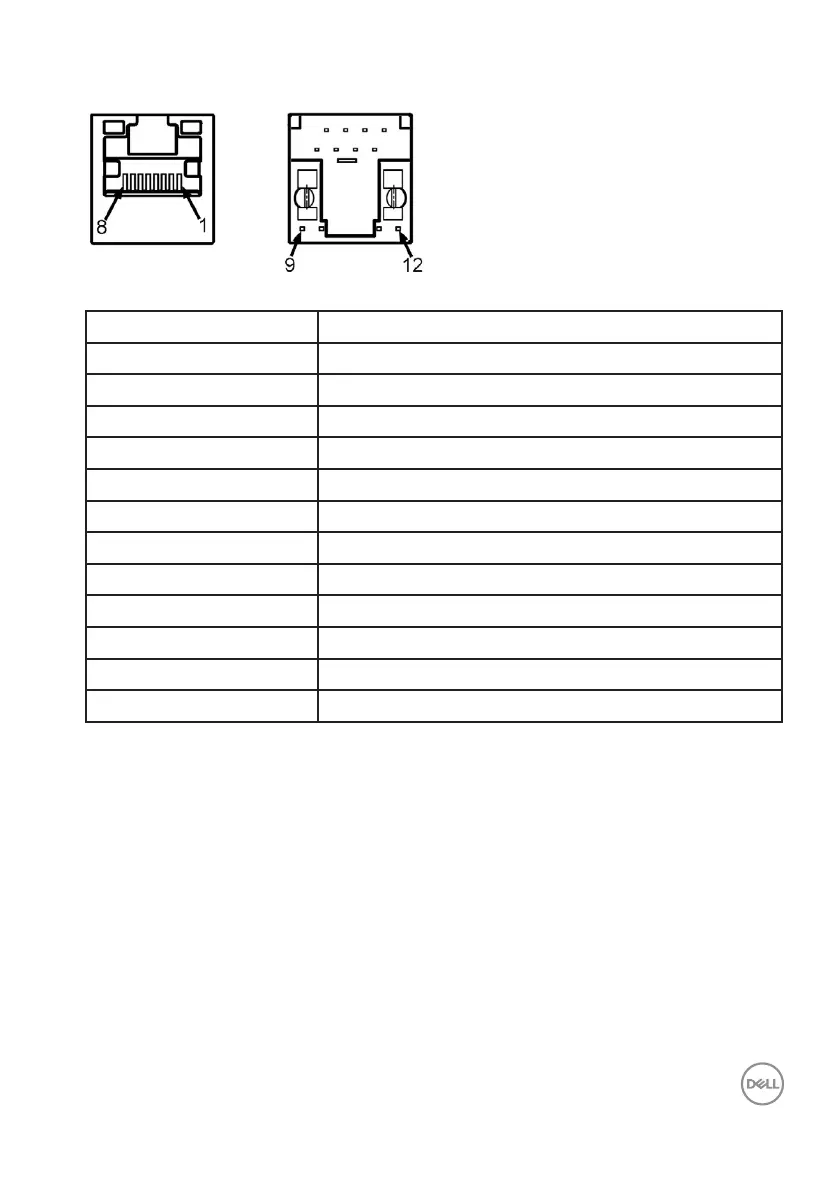

RJ-45 connector
Pin assignments
Pin number 12-pin side of the connector
1 D+
2 D-
3 RCT
4 GND
5 GND
6 RCT
7 D+
8 D-
9 LED2_Y+
10 LED2_Y-
11 LED1_G+
12 LED1_G-
