62 Removing and Installing Parts

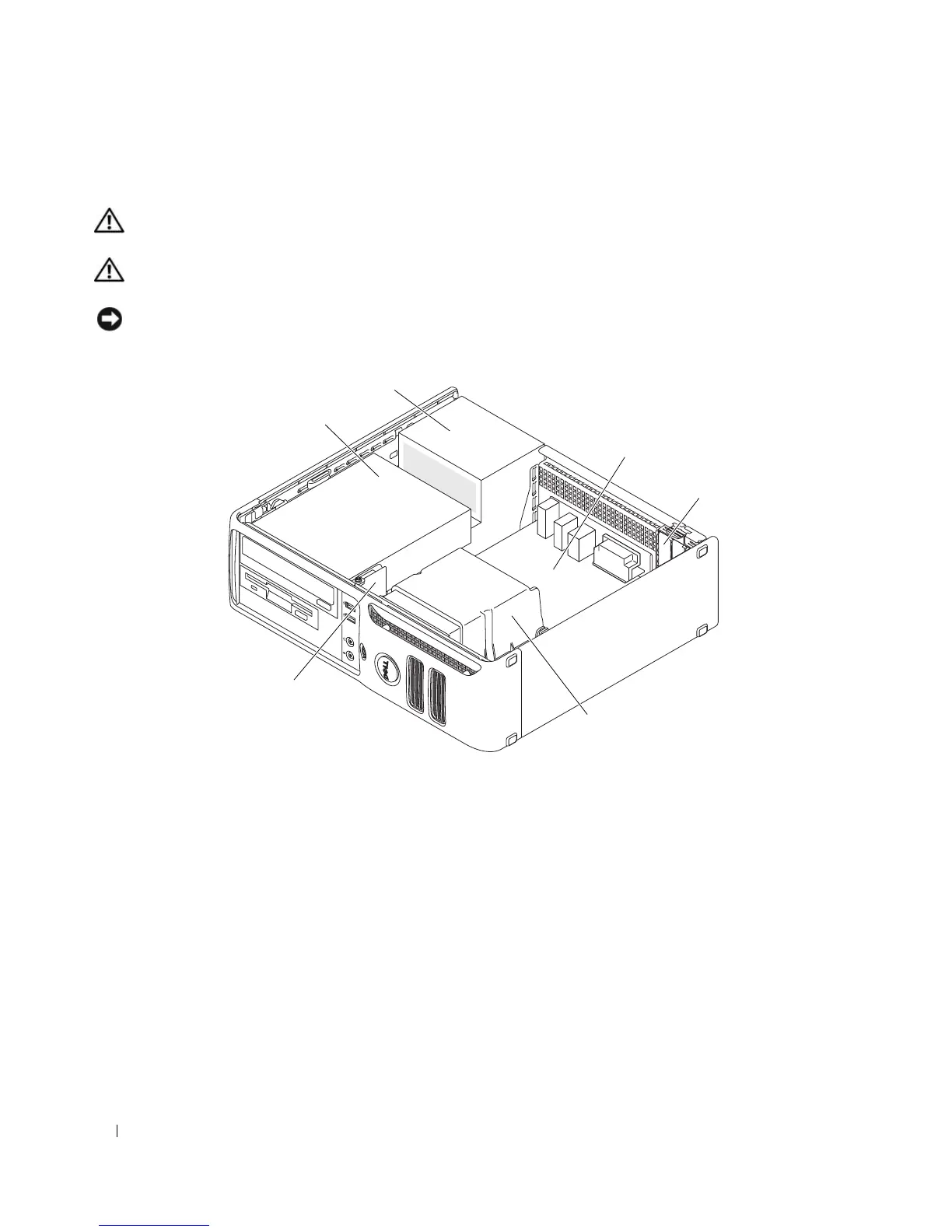

Inside View of Your Computer
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the
Product Information Guide.
CAUTION: To avoid electrical shock, always unplug your computer from the electrical outlet before removing
the computer cover.
NOTICE: Be careful when opening the computer cover to ensure that you do not accidentally disconnect cables
from the system board.
1 drives bay (CD/DVD, floppy,
and hard drive)
2 power supply 3 system board
4 card slots 5 heat sink assembly 6 front I/O panel
1
2
3
4
5
6
