104 Removing and Installing Parts
6
Connect the FlexBay USB cable to the back of the Media Card Reader and to the internal USB
connector on the system board (see "System Board Components" on page 69).
7
Route the FlexBay USB cable through the cable routing clip.
8
Replace the computer cover (see "Replacing the Computer Cover" on page 110).
9
Connect your computer and devices to electrical outlets, and then turn them on.
CD/DVD Drive
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the
Product Information Guide.
CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before
removing the cover.

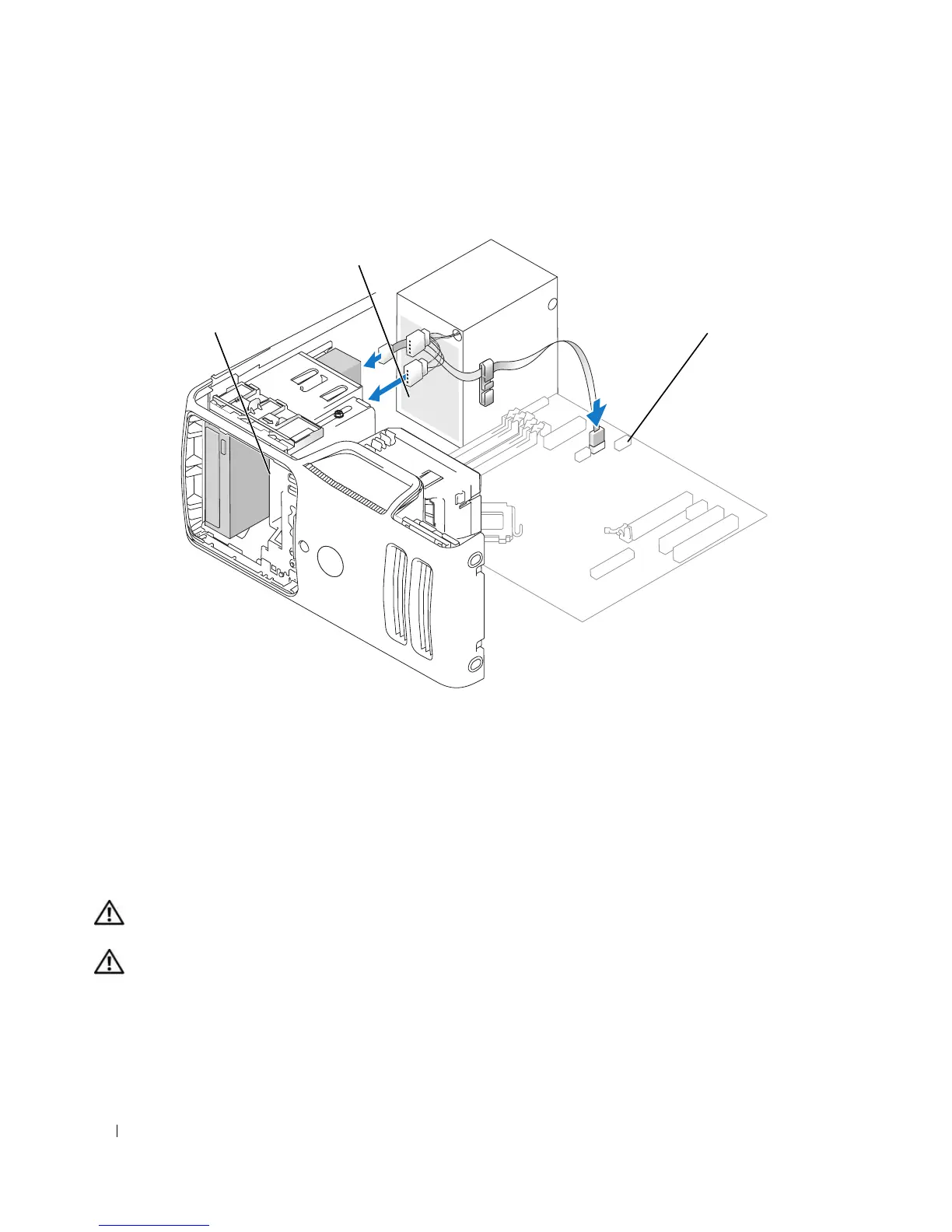

1 Media Card Reader 2 USB cable 3 USB connector
