Removing and Installing Parts
89

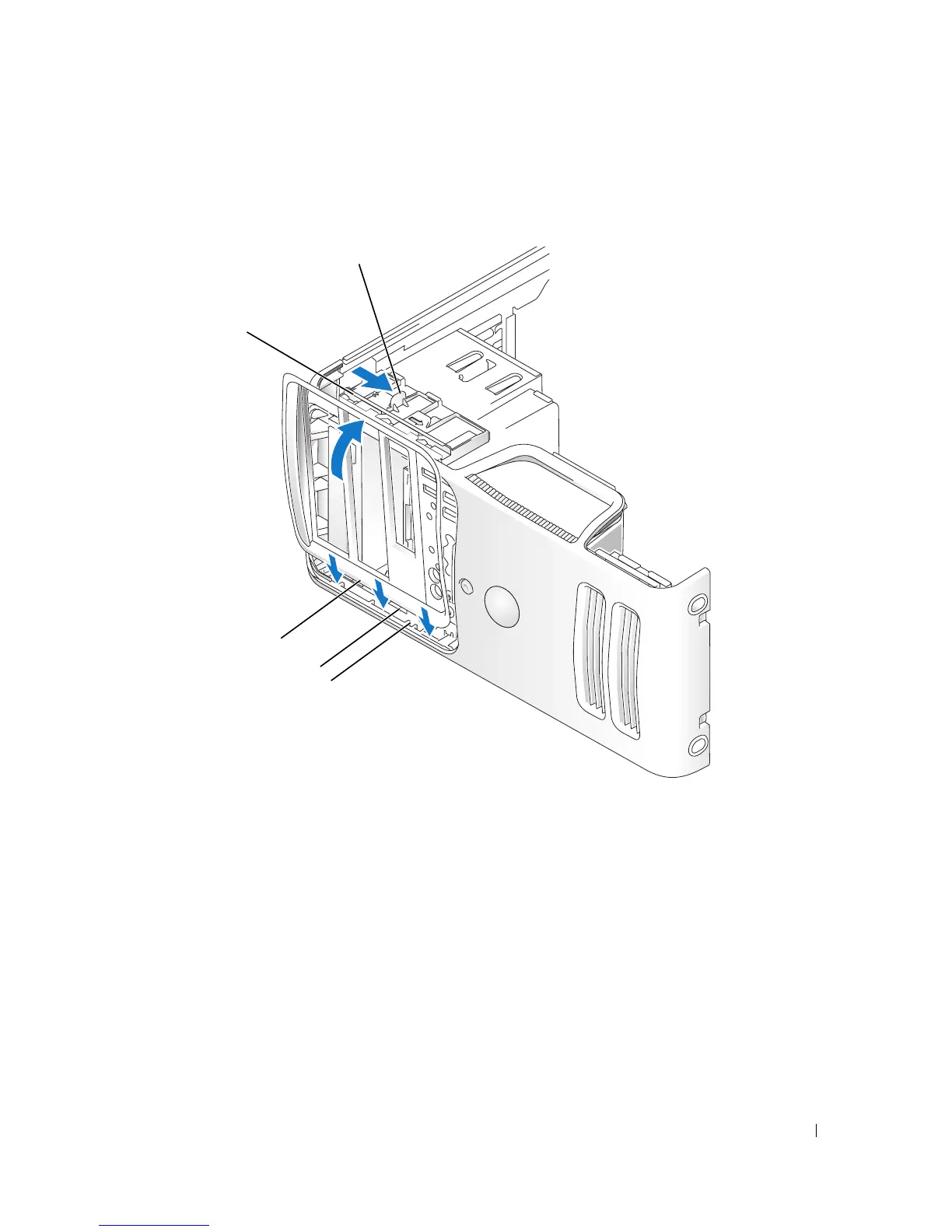

Replacing the Drive Panel
1
Align the drive panel tabs with the side hinges.
2
Rotate the drive panel toward the computer unti
l it snaps into place on the front panel.
1
sliding plate lever
2
sliding plate
3
drive panel
4
drive panel tabs (3)
5
side hinges
3
2
1
4
5
