80 Removing and Installing Parts
PCI Express Cards
Your computer supports one PCI Express x16 card and one PCI Express x1 card.
• If you are installing or replacing a PCI Express card, follow the procedures in the next section.
• If you are removing but not replacing a card, see "Removing a PCI Express Card" on page 85.
• If you are installing or replacing a PCI card, see "Installing a PCI Card" on page 75.
• If you are replacing a card, remove the current driver for the card from the operating system.
Installing a PCI Express Card
1
Follow the procedures in "Before You Begin" on page 65.
2
Remove the computer cover (see "Removing the Computer Cover" on page 66).
3
Gently push the release tab on the card retention door from the inside to pivot the door open. The
door is hinged and will remain in the open position (see "Installing a PCI Card" on page 75 for an
illustration of the card retention door).
4
If your computer includes a card retention mechanism to secure the x16 card in place from the top:
a
Pivot the mechanism upward and gently squeeze in on the sides to release the mechanism from
the two tab slots holding it in place.
b
Set the retention mechanism aside.
5
If you are installing a new card, remove the filler bracket to create a card-slot opening, then continue
with step 7.

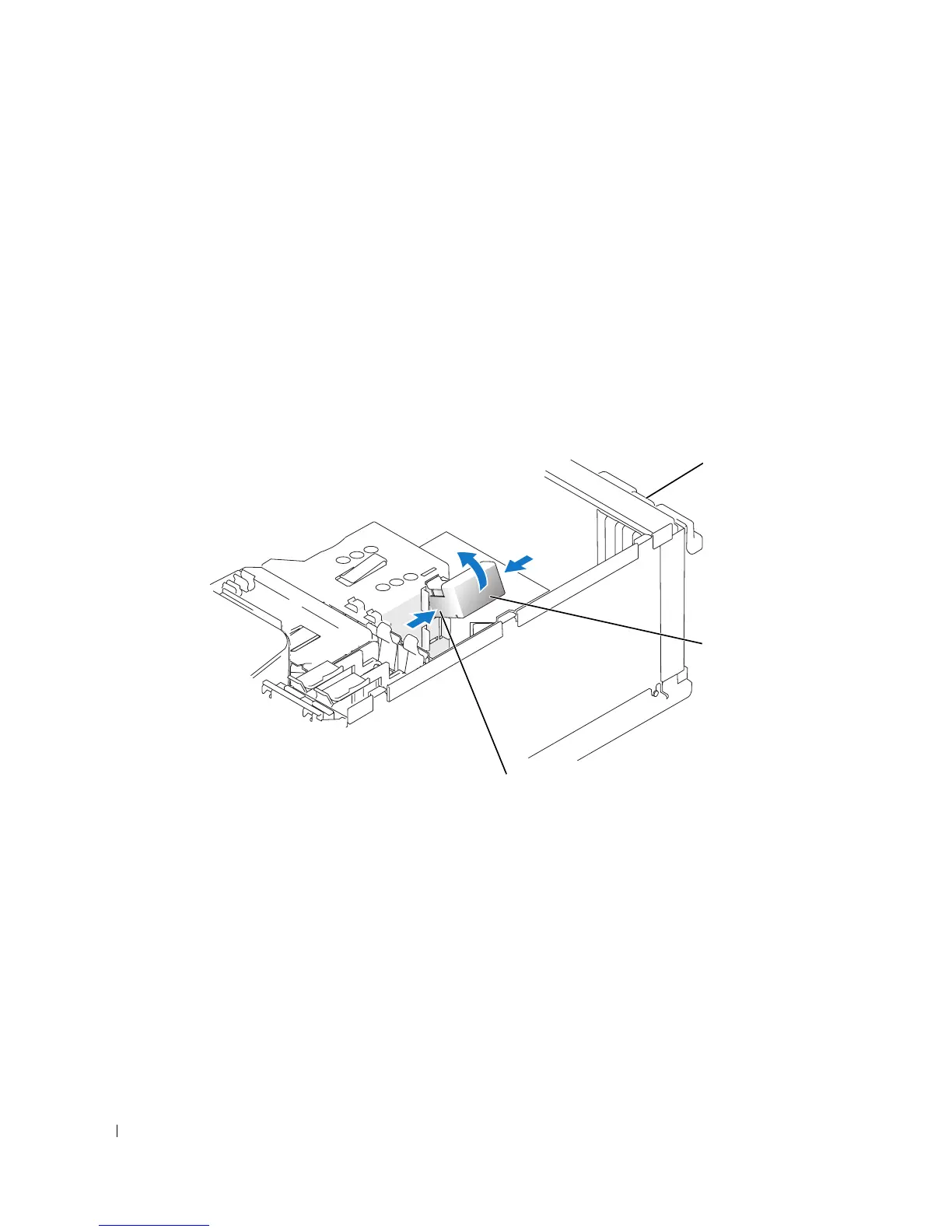

1 card retention door 2 card retention mechanism 3 release tabs (2)
3
2
