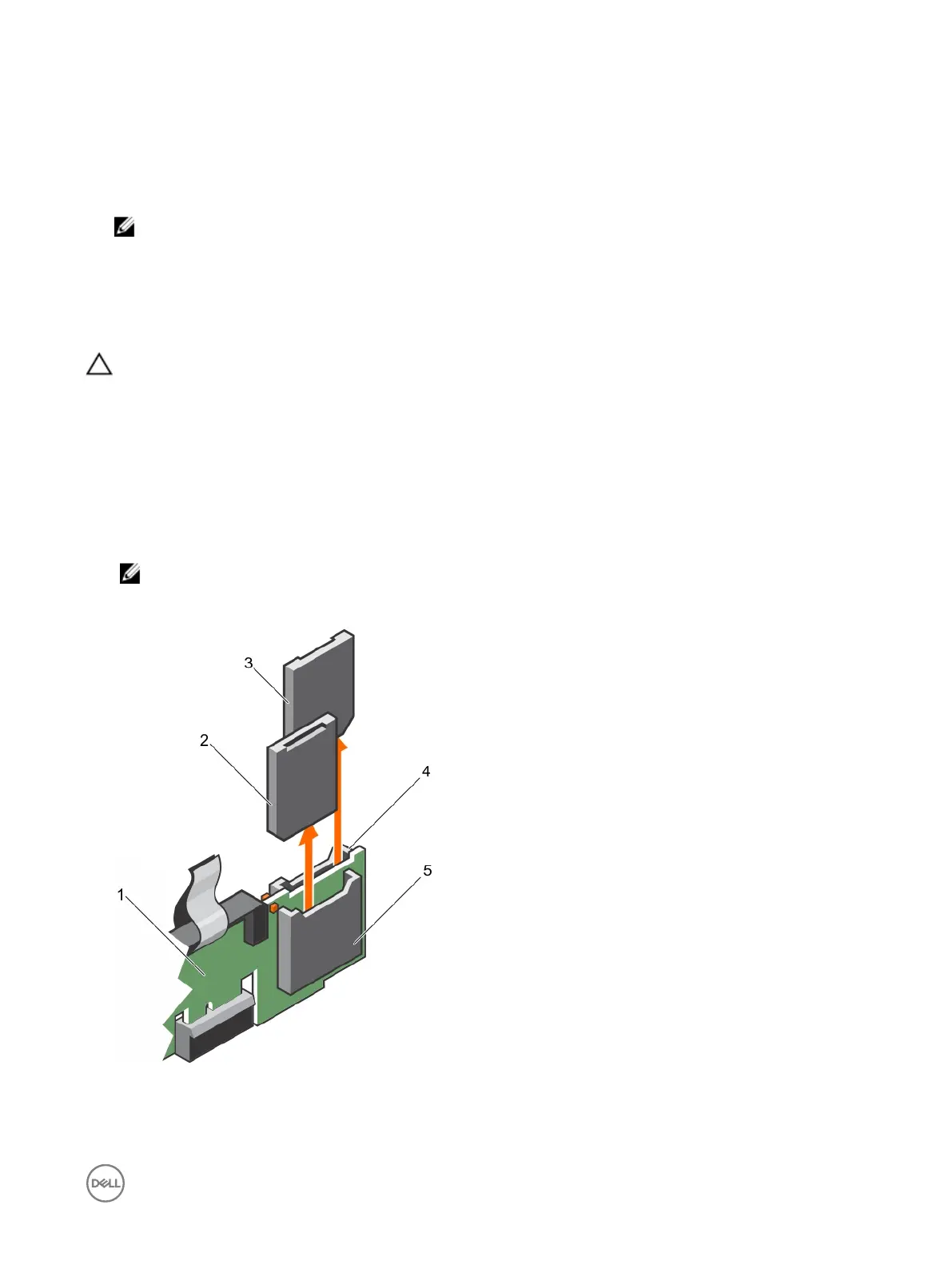

7 iDRAC port card connector 8 iDRAC port card holder
Next steps
1 Install the cooling shroud.
2 If disconnected, reconnect the network cable.
3 Follow the procedure listed in the After working inside your system section.
Related links
Removing the cooling shroud
Installing the cooling shroud
Heat sink and processor
Removing the heat sink
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
CAUTION: Never remove the heat sink from a processor unless you intend to remove the processor. The heat sink is necessary
to maintain proper thermal conditions.
NOTE: This is a Field Replaceable Unit (FRU). Removal and installation procedures should be performed only by Dell certied
service technicians.
1 Ensure that you follow the safety guidelines listed in the Safety instructions section.
2 Keep the Phillips #2 screwdriver ready.
3 Follow the procedure listed in the Before working inside your system section.
4 Remove the cooling shroud.
WARNING
: The heat sink and processor are too hot to touch for some time after the system has been powered down. Allow the
heat sink and processor to cool down before handling them.
Steps
1 Loosen one of the screws that secure the heat sink to the system board.
Allow some time (around 30 seconds) for the heat sink to loosen from the processor.
2 Loosen the screw that is diagonally opposite the screw you rst removed.
3 Repeat the procedure for the remaining two screws.
4 Lift the heat sink away from the system.
Installing and removing system components
105
