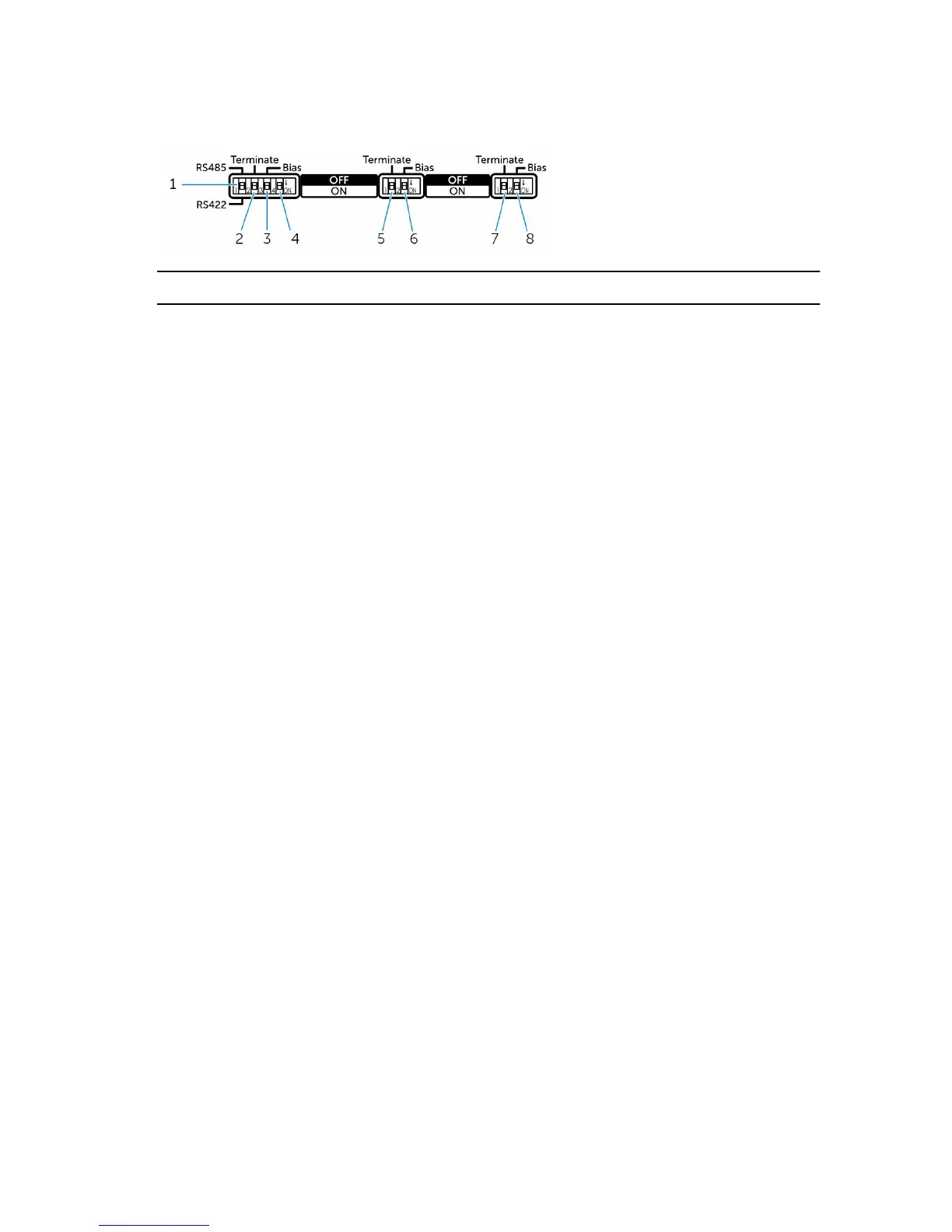

DIP switches
Feature
1. RS422/RS485 port toggle
switch
Toggle between RS422 or RS485
standard
2. RS422/RS485 port resistor
switch
Enable/disable the differential
termination resistor
3. RS422/RS485 port bias
resistor switch
Enable/disable the bias resistor for the
RS422/RS485 port
4. RS422/RS485 port diagnostic
switch
Enable or disable the RS422/RS485
port
5. RS485 port resistor switch Enable/disable the differential
termination resistor for RS485
6. RS485 port bias resistor switch Enable/disable the bias resistor for the
RS485 port
7. RS485 port resistor switch Enable/disable the differential
termination resistor for RS485
8. RS485 port bias resistor switch Enable/disable the bias resistor for the
RS485 port
