CAUTION: Do not pull the node from the base enclosure. Pulling the node from the base enclosure disrupts the
system cache.

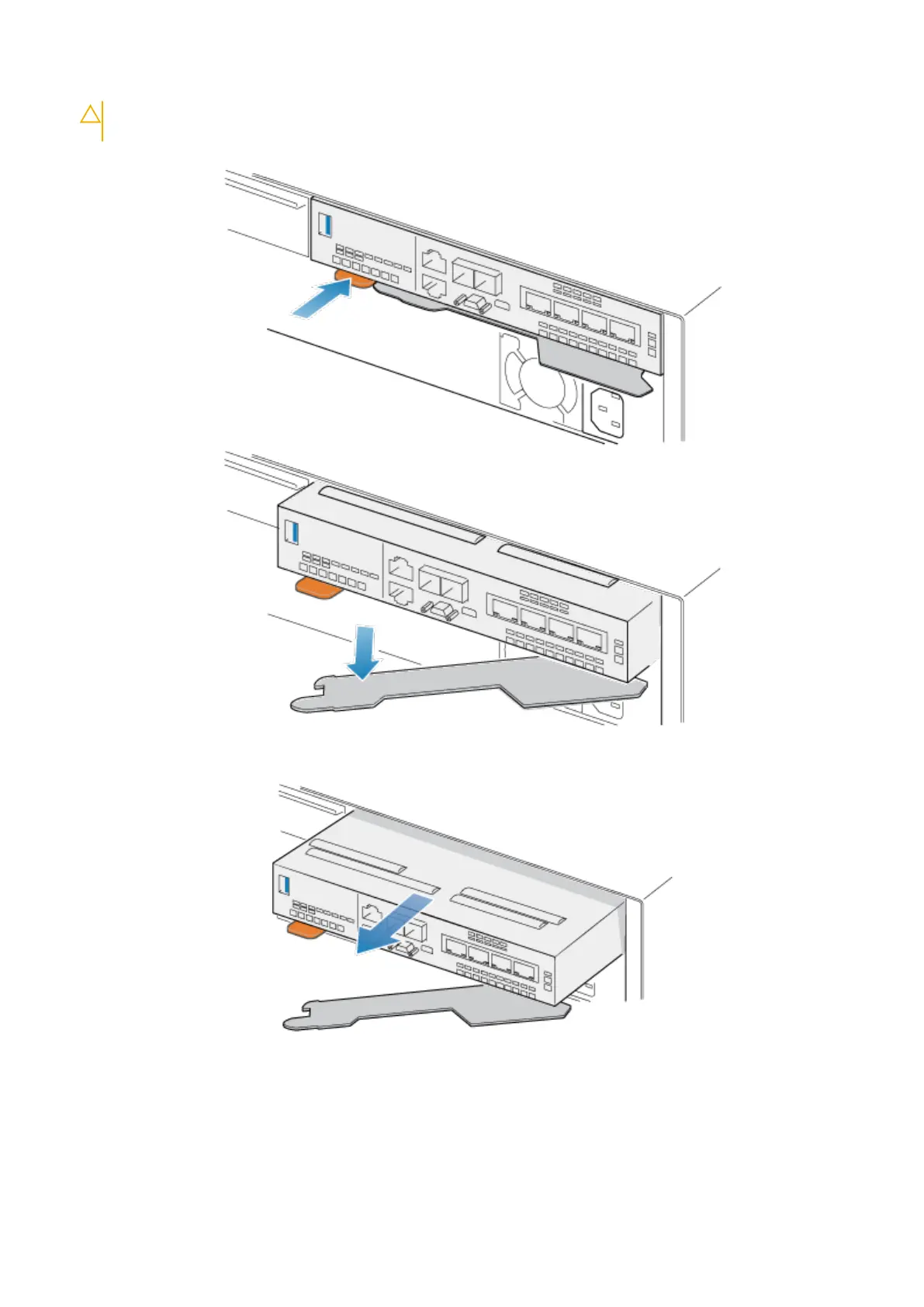

2. Push the orange tab on the embedded module to release the lever.
Figure 31. Releasing the lever on the embedded module
3. Pull the release lever away from the system. The embedded module releases from the system as you pull the lever.
Figure 32. Removing the embedded module from the system
4. Remove the embedded module from the slot.
36
Base enclosure service procedures
