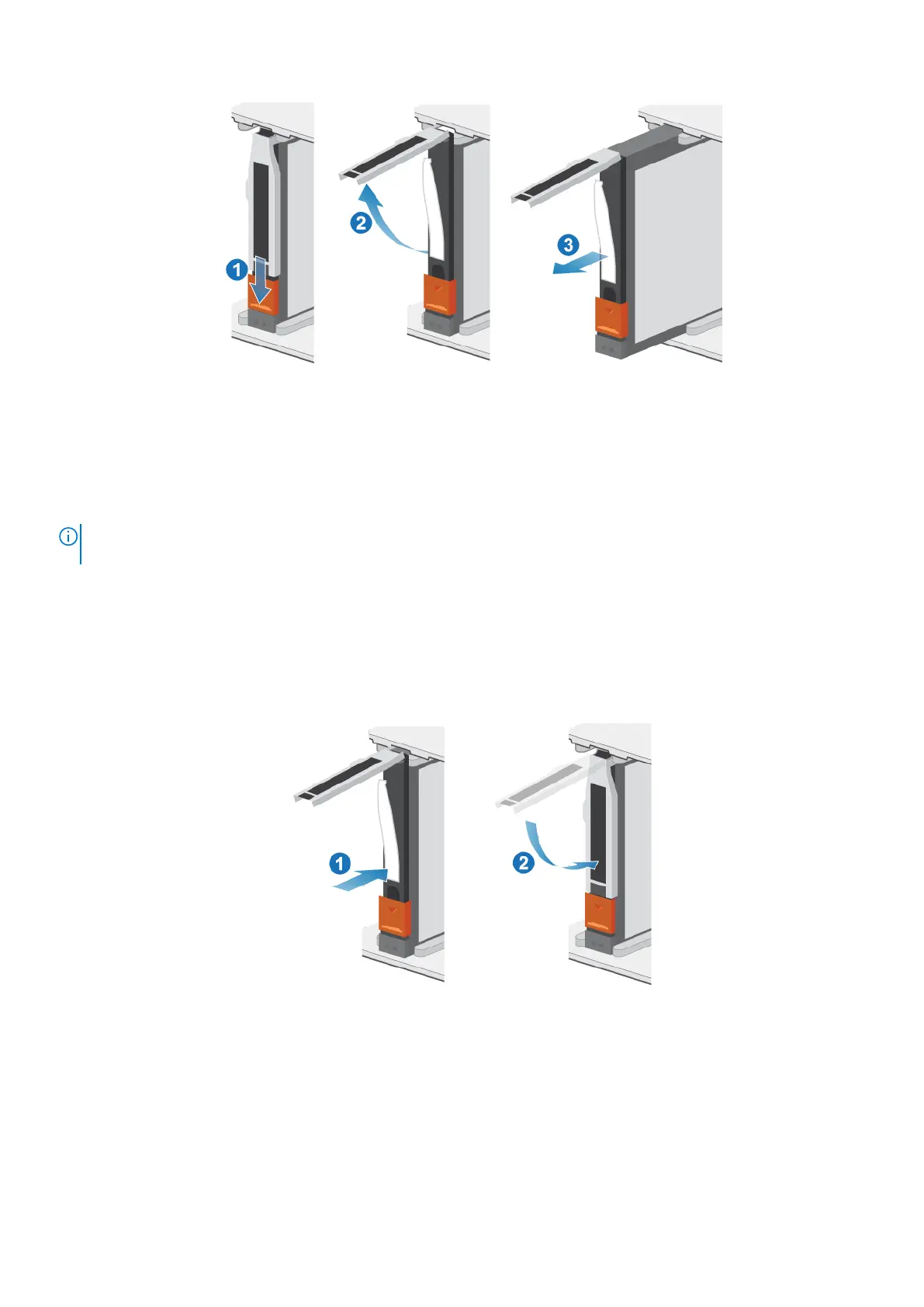

Figure 122. Removing a drive
4. Place the drive on a static-free surface.
Installing a drive
About this task
NOTE: If you are installing multiple drives in a system that is powered up, wait at least 10 seconds before sliding the
next drive into position.
Steps
1. Align the drive with the guides in the slot.
2. With the latch fully opened, gently push the drive into the slot.
The latch begins to rotate downward when it meets the enclosure.
3. Push the orange button until the drive is fully seated in the slot.
4. Push the latch down until it locks into place.
Figure 123. Installing a drive
The activity light flashes to indicate that the spin-up sequence has begun.
Installing the front bezel
Steps
1. Align the bezel with the enclosure.
86
Expansion enclosure service procedures
