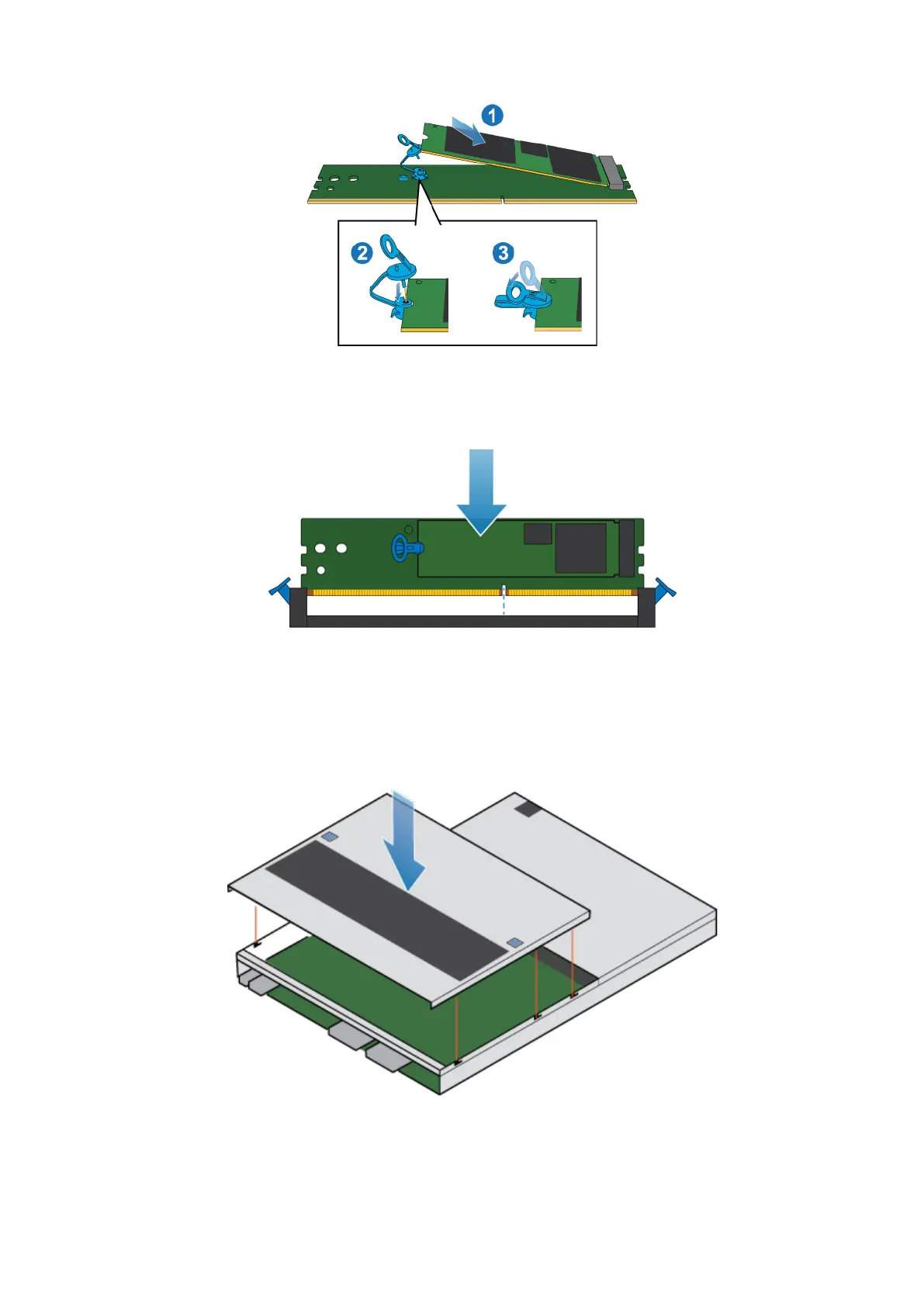

Figure 85. Installing the internal M.2 boot module into the M.2 boot module adaptor
4. Touching only the outside edges of the M.2 boot module adaptor, align the M.2 boot module adaptor with the connector.
5. Firmly push the M.2 boot module adaptor straight down into the connector.
When the M.2 boot module adaptor is fully seated, you will hear a snap, and feel the connector latches click into place.
Figure 86. Installing the M.2 boot module adaptor
Install the top cover on the node
Steps
1. Position the top cover over the node and align it with the slots in the sides at the rear of the node.
Figure 87. Aligning the top cover
2. Pull the top cover forward to secure it in place.
