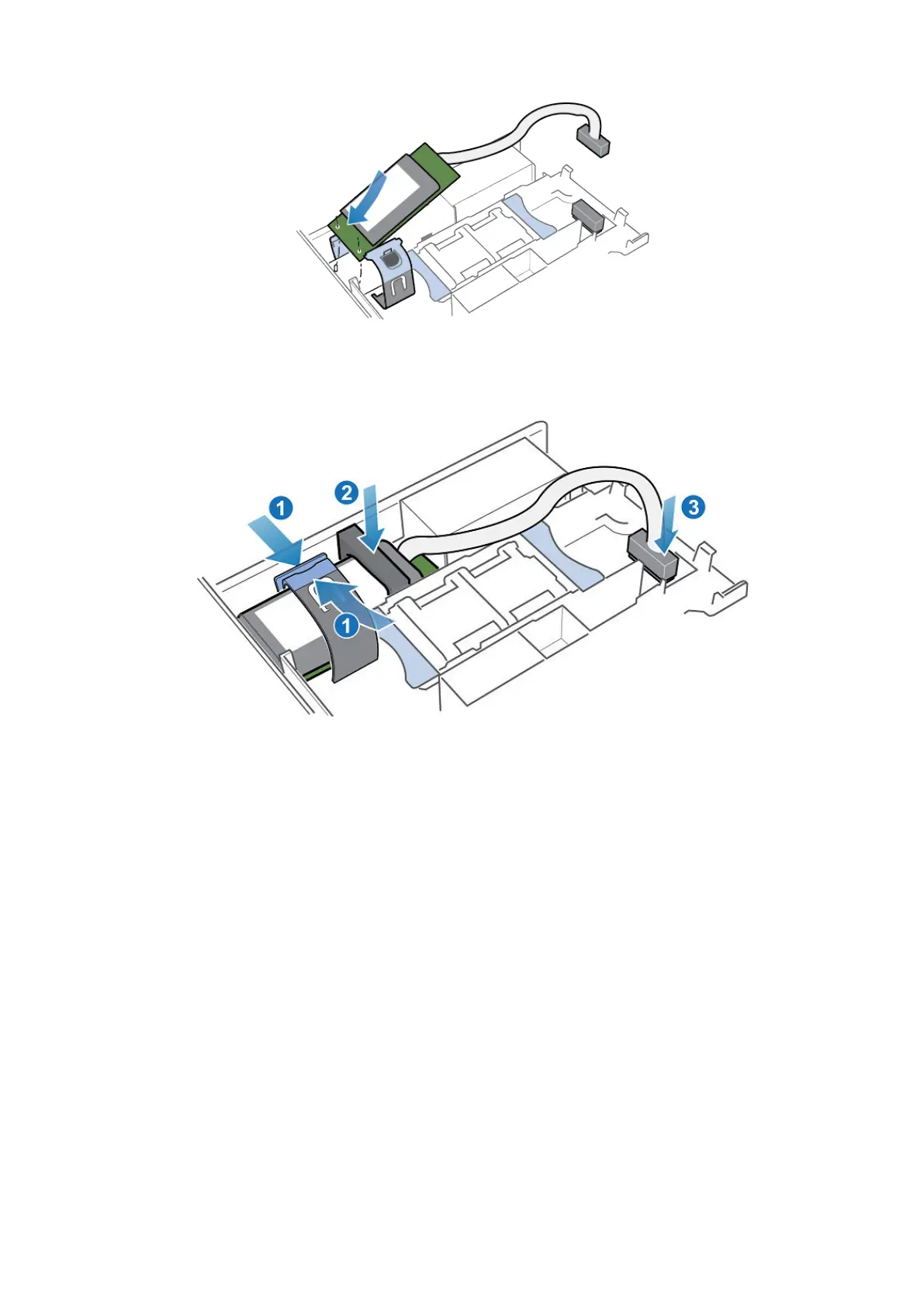

Figure 111. Placing the internal battery backup module into position
2. Close the clip around the center of the internal battery backup module until it clicks into place.
3. Replace the gray padding around the top of the internal battery backup module.
4. Connect the internal battery backup module cable to the motherboard.
Figure 112. Connecting the internal battery backup module cable to the motherboard
Install the top cover on the node
Steps
1. Position the top cover over the node and align it with the slots in the sides at the rear of the node.
Base enclosure service procedures
79
