Remove the top cover from the node
Steps

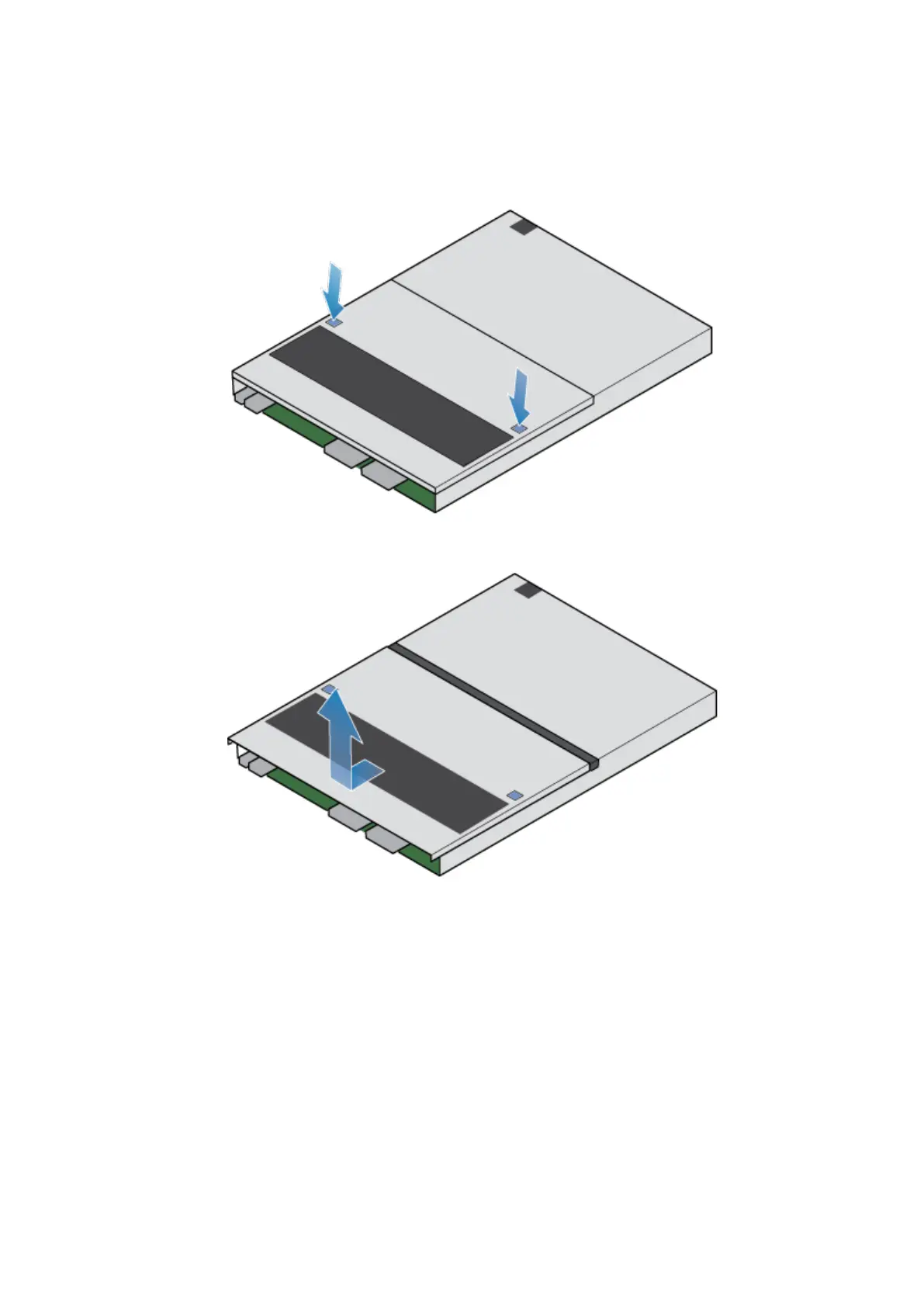

1. While pushing down the two blue release buttons, slide the top cover towards the rear of the system, until it stops.
Figure 81. Releasing the top cover
2. Lift the top cover upward, and remove it from the node.
Figure 82. Removing the top cover
Remove the faulted internal M.2 boot module
Steps
1. Locate the M.2 boot module adaptor in the node.
You can identify the M.2 boot module adaptor by the blue retaining tabs.
2. Press the blue retaining tabs downward to free the M.2 boot module adaptor from its slot.
3. Touching only the outside edges of the M.2 boot module adaptor, remove the M.2 boot module adaptor.
64
Base enclosure service procedures
