Figure 62. Installing the fan module
Install the top cover on the node
Steps
1.
Position the top cover over the node and align it with the slots in the sides at the rear of the node.

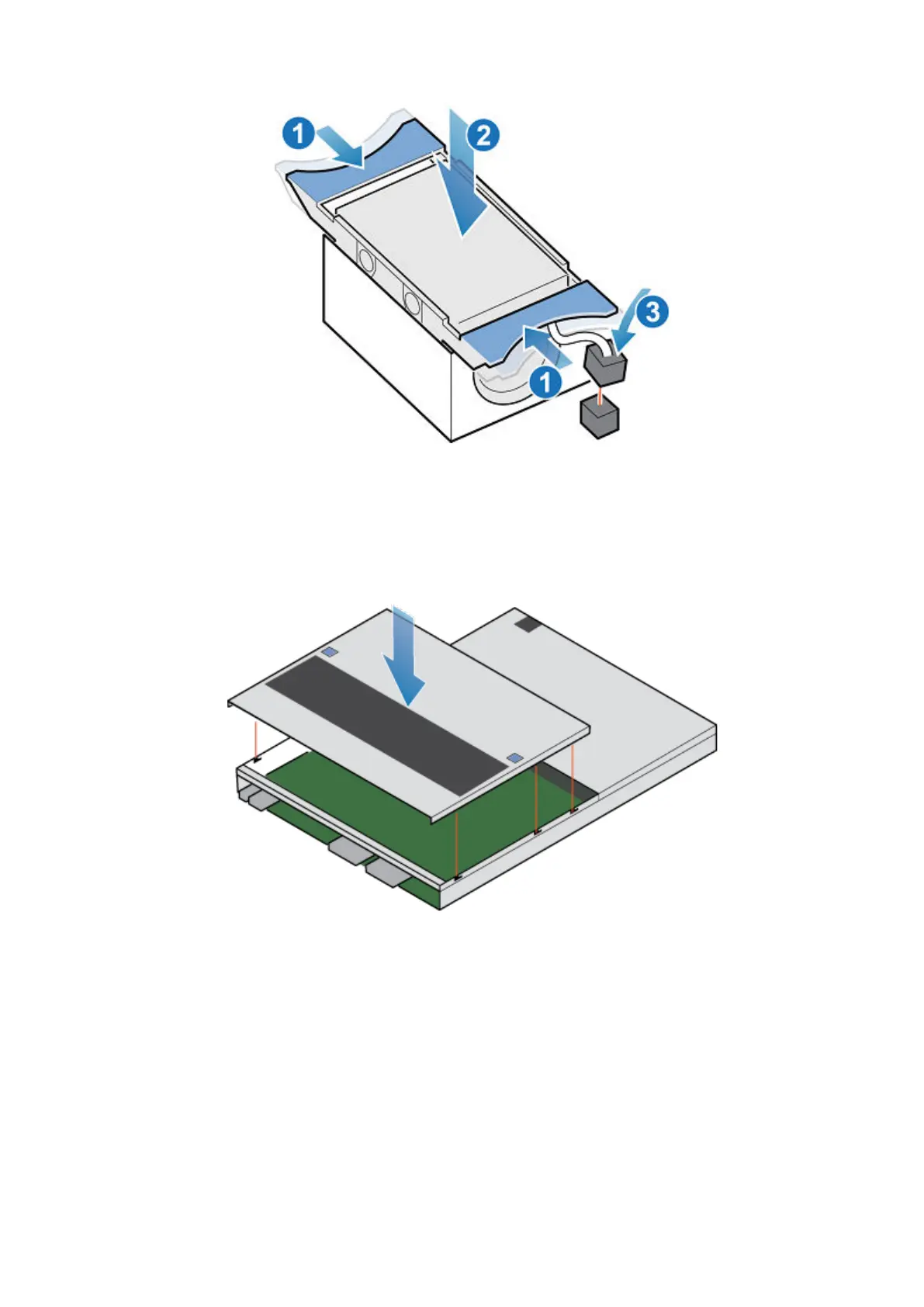

Figure 63. Aligning the top cover
2.
Pull the top cover forward to secure it in place.
54
Base enclosure service procedures
53
55
Table of Contents
Default Chapter
3
Table of Contents
3
Additional Resources
8
1 Install a New Base Enclosure and Optional Expansion Enclosure
9
Install a New Base Enclosure
9
Choose Where to Install the Base Enclosure
9
Unpack the Base Enclosure
9
Install the Rails in the Cabinet
10
Install the Base Enclosure on the Rails
10
Cable the Base Enclosure Appliance to Switches
11
Connect Power Cables
11
Discover Your System
12
Verify the Operation of the New Part
12
Install a 25-Drive Expansion Enclosure
12
Summary of Tasks for Installing an Expansion Enclosure
13
Verify Shipping Package Contents
13
Choose Where to Install the Expansion Enclosure
14
Removing a Filler Panel
14
Install the Rails in the Cabinet
14
Install the Expansion Enclosure on the Rails
15
Installing Drives
16
Installing the Front Bezel
17
Cable the Base Enclosure to the Expansion Enclosure
18
Connect Expansion Enclosure Power Cables
18
Verify the Operation of the New Part
19
Add a 25-Drive Expansion Enclosure
19
Summary of Tasks for Adding an Expansion Enclosure
19
Verify Shipping Package Contents
20
Choose Where to Install the Expansion Enclosure
20
Removing a Filler Panel
20
Install the Rails in the Cabinet
21
Install the Expansion Enclosure on the Rails
22
Installing Drives
23
Installing the Front Bezel
23
Connect Expansion Enclosure Power Cables
24
Cable the Base Enclosure to the New Expansion Enclosure
24
Verify the Operation of the New Part
26
2 Base Enclosure Service Procedures
27
Replace a Faulted Drive in the Base Enclosure
27
Identify a Faulted Drive from Powerstore Manager
27
Remove a Faulted 2.5" Drive
27
Install a 2.5" Drive
28
Verify the Operation of a Replacement Drive
29
Add a New Drive to the Base Enclosure
29
Removing the Front Bezel
29
Remove a Drive Filler Module
30
Install a 2.5" Drive
30
Verify the Operation of a New Part
31
Replace a Power Supply
31
Identify a Faulted Part from Powerstore Manager
32
Base Enclosure Power Supply Leds
32
Remove a Power Supply
32
Install a Power Supply
33
Verify the Operation of a Replacement Part
34
Replace an Embedded Module
34
Identify a Faulted Part from Powerstore Manager
34
Embedded Module Leds
35
Power down the Node
35
Remove a Faulted Embedded Module
35
Transfer the 4-Port Card
37
Install an Embedded Module
38
Power up the Node
39
Verify the Operation of a Replacement Part
39
Replace a 4-Port Card
40
Identify a Faulted Part from Powerstore Manager
40
Embedded Module Leds
40
Power down the Node
41
Remove an Embedded Module
41
Remove a 4-Port Card
42
Install a 4-Port Card
43
Install an Embedded Module
44
Power up the Node
45
Verify the Operation of a New Part
45
Replace an SFP
46
Identify a Faulted SFP Module from Powerstore Manager
46
Remove an SFP Module
46
Install an SFP Module
46
Verify the Operation of a Replacement Part
47
Replace an I/O Module
47
Identify a Faulted Part from Powerstore Manager
47
Base Enclosure I/O Module Leds
47
Power down the Node
48
Remove a Faulted I/O Module
48
Install a New I/O Module
49
Power up the Node
49
Verify the Operation of a Replacement Part
50
Replace a Fan Module
50
Identify a Faulted Part from Powerstore Manager
50
Power down the Node
50
Remove the Node
50
Remove the Top Cover from the Node
52
Remove the Faulted Fan Module
52
Install a New Fan Module
53
Install the Top Cover on the Node
54
Install the Node
55
Power up the Node
56
Verify the Operation of a Replacement Part
56
Replace a Dual Inline Memory Module (DIMM)
56
Identify a Faulted Part from Powerstore Manager
56
Power down the Node
57
Remove the Node
57
Remove the Top Cover from the Node
58
Remove the Faulted Dual Inline Memory Module
59
Install the Dual Inline Memory Module
59
Install the Top Cover on the Node
60
Install the Node
61
Power up the Node
61
Verify the Operation of a Replacement Part
61
Replace an Internal M.2 Boot Module
62
Identify a Faulted Part from Powerstore Manager
62
Power down the Node
62
Remove the Node
62
Remove the Top Cover from the Node
64
Remove the Faulted Internal M.2 Boot Module
64
Install the Internal M.2 Boot Module
65
Install the Top Cover on the Node
66
Install the Node
67
Power up the Node
68
Verify the Operation of a Replacement Part
68
Replace an M.2 Boot Module Adaptor
68
Identify a Faulted Part from Powerstore Manager
68
Power down the Node
69
Remove the Node
69
Remove the Top Cover from the Node
70
Remove the Faulted M.2 Boot Module Adaptor
71
Install the M.2 Boot Module Adaptor
72
Install the Top Cover on the Node
73
Install the Node
74
Power up the Node
74
Verify the Operation of a Replacement Part
74
Replace a Node
75
Identify a Faulted Part from Powerstore Manager
75
Power down the Node
75
Remove the Node
75
Remove the Top Cover from the Node
77
Transfer Parts from the Faulted Node to the Replacement Node
77
Transfer the Internal Battery Backup Module
78
Install the Top Cover on the Node
79
Install the Node
80
Power up the Node
81
Verify the Operation of a Replacement Part
81
3 Expansion Enclosure Service Procedures
82
Add a Drive in a 25-Drive Expansion Enclosure
82
Removing the Front Bezel
82
Removing a Drive Filler Module
83
Installing a Drive
83
Installing the Front Bezel
84
Verify the Operation of a Replacement Part
84
Replace a Faulted Drive in a 25-Drive Expansion Enclosure
84
Identify a Faulted Drive from Powerstore Manager
84
Removing the Front Bezel
85
Remove a Faulted Drive
85
Installing a Drive
86
Installing the Front Bezel
86
Verify the Operation of a Replacement Drive
87
Replace a Link Control Card in a 25-Drive Expansion Enclosure
87
Identify a Faulted Part from Powerstore Manager
87
Removing a Faulted LCC
88
Installing a Replacement LCC
89
Verify the Operation of a Replacement Part
91
Replace a Power/Cooling Module in a 25-Drive Expansion Enclosure
91
Identify a Faulted Part from Powerstore Manager
91
Removing a Faulted Power/Cooling Module
91
Installing a Replacement Power/Cooling Module
93
Verify the Operation of a Replacement Part
95
A Safety Precautions for Handling Replaceable Units
96
Handling Replaceable Units
96
Avoiding Electrostatic Discharge (ESD) Damage
96
Emergency Procedures (Without an Electrostatic Discharge Kit)
96
Hardware Acclimation Times
97
Removing, Installing, or Storing Replaceable Units
97
Unpacking a Part
98
B Discovering Powerstore Appliances
99
Discover Your System
99
Discovery with a Direct Connection
99
Discovery with Remote Connection
100
C Power Control Procedures
101
Power Control Procedure Considerations
101
Power Control Procedures Preview
101
Powering off Procedures for Powerstore Node
102
Power off a Powerstore T Model Node
102
Power off a Powerstore T Model Node Using a Service Script
103
Power off a Powerstore X Model Node
103
Powering on Procedures for Powerstore Node
104
Power on a Powerstore T Model Node
104
Power on a Powerstore X Model Node
104
Rebooting Procedures for a Powerstore Node
105
Reboot a Powerstore T Model Node Using Powerstore Manager
105
Reboot a Powerstore T Model Node Using a Service Script
106
Reboot a Powerstore X Model Node
106
Powering off Procedures for Powerstore Appliances
106
Power off a Powerstore T Model Appliance
107
Power off a Powerstore X Model Appliance
107
Powering on Procedures for Powerstore Appliances
108
Power on a Powerstore T Model Appliance
108
Power on a Powerstore X Model Appliance
108
Powering off Procedures for Powerstore Cluster
109
Power off a Powerstore T Model Cluster
109
Power off a Powerstore X Model Cluster
110
Powering on Procedures for Powerstore Cluster
110
Power on a Powerstore T Model Cluster
111
Power on a Powerstore X Model Cluster
111
D Data Collection
113
Support Materials Collection
113
Collect Support Materials
113
E Reinitialize the System
115
Reinitialize the System
115
