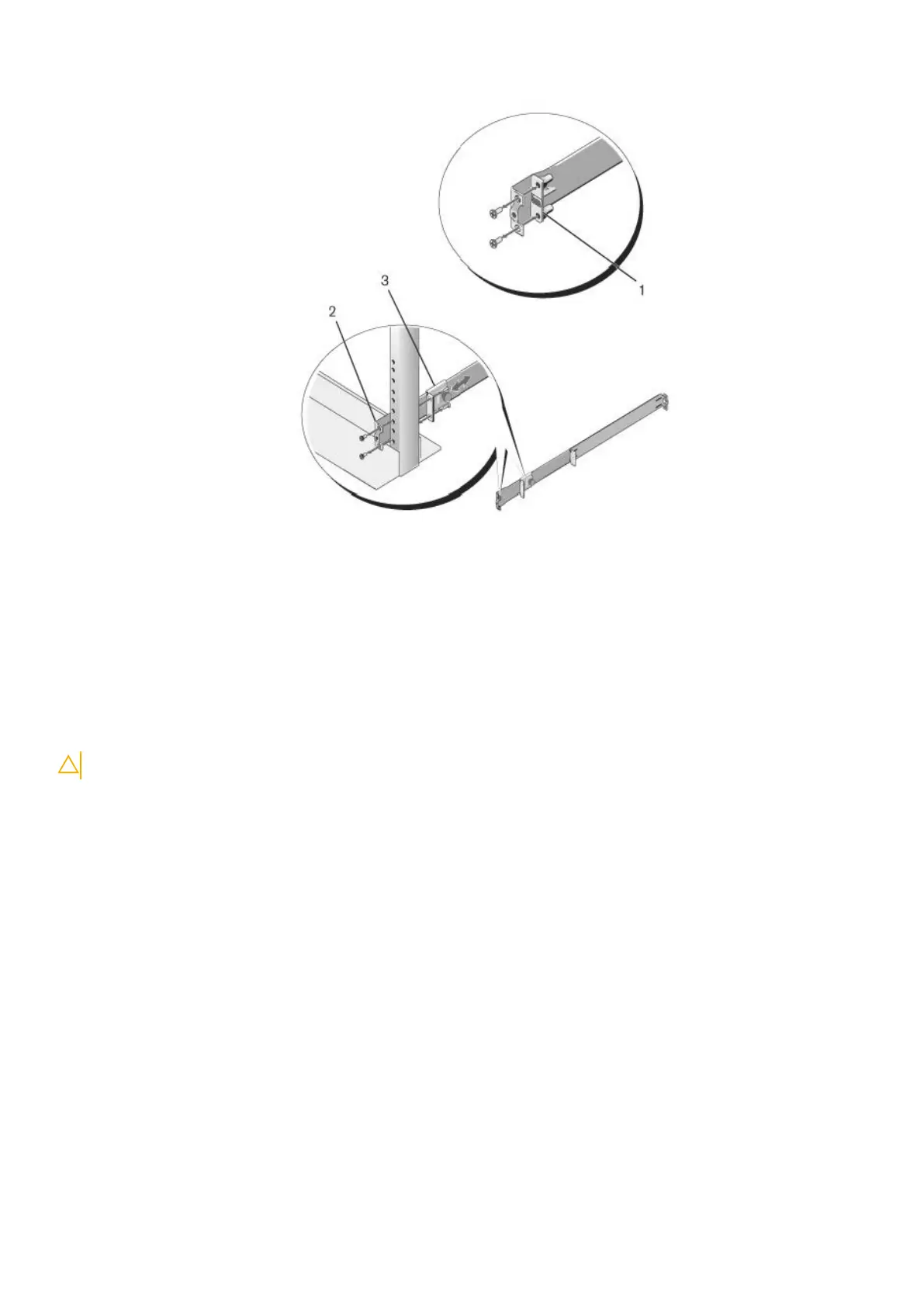

Figure 10. Two-post flush-mount configuration
2. Attach one rail to the front post flange with two user-supplied screws, item 2.
3. Slide the plunger bracket forward against the vertical post and secure the plunger bracket to the post flange with two
user-supplied screws, item 3.
4. Repeat this procedure for the second rail.
Two-post center-mount configuration
CAUTION: Your switch is not NEBS Earthquake Z4-compliant if you use this installation method.
1. Slide the plunger bracket rearward until it clicks into place and secure the bracket to the front post flange with two
user-supplied screws, item 1.
Z9100–ON installation
21
