Inside the system

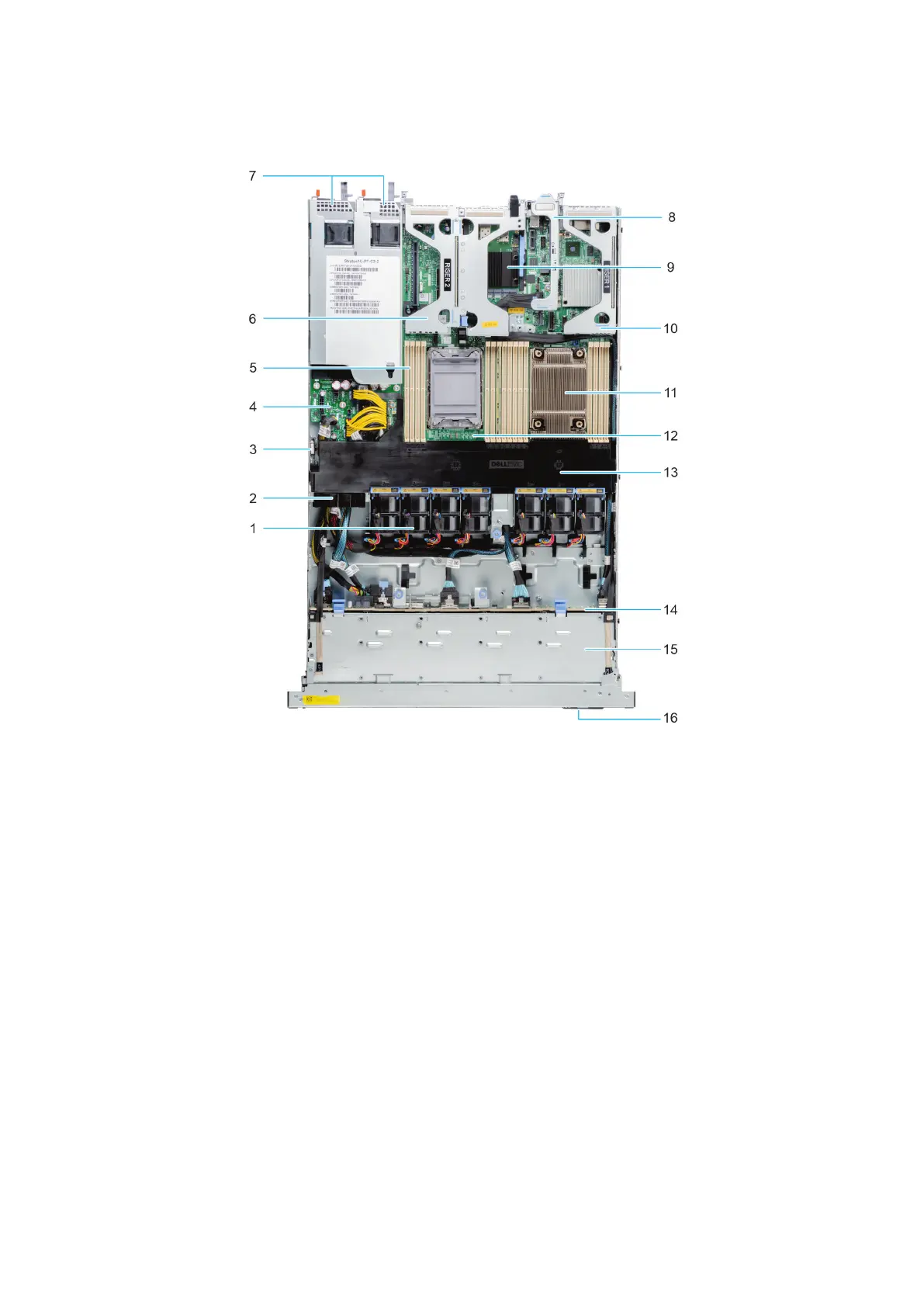

Figure 4. Inside the system
1.
Fan 2. Cable retention latch
3. Intrusion switch 4. Power interposer board
5. Memory module slots 6. Riser 2c
7. PSU 1 and PSU 2 8. BOSS riser
9. OCP 10. Riser 1
11. Heat sink 12. System board
13. Air shroud 14. Drive backplane
15. Backplane cover 16. Information tag
Locating the Express Service Code and Service Tag
The unique Express Service Code and Service Tag are used to identify the system.
The information tag is located on the front of the system and includes system information such as the Service Tag, Express
Service Code, Manufacture date, NIC, MAC address, QRL label, and so on. If you have opted for the secure default access
to iDRAC, the Information tag also contains the iDRAC secure default password. If you have opted for iDRAC Quick Sync
2, the Information tag also contains the OpenManage Mobile (OMM) label, where administrators can configure, monitor, and
troubleshoot the PowerEdge servers.
