Dell EMC XC Core XC450

Cable routing

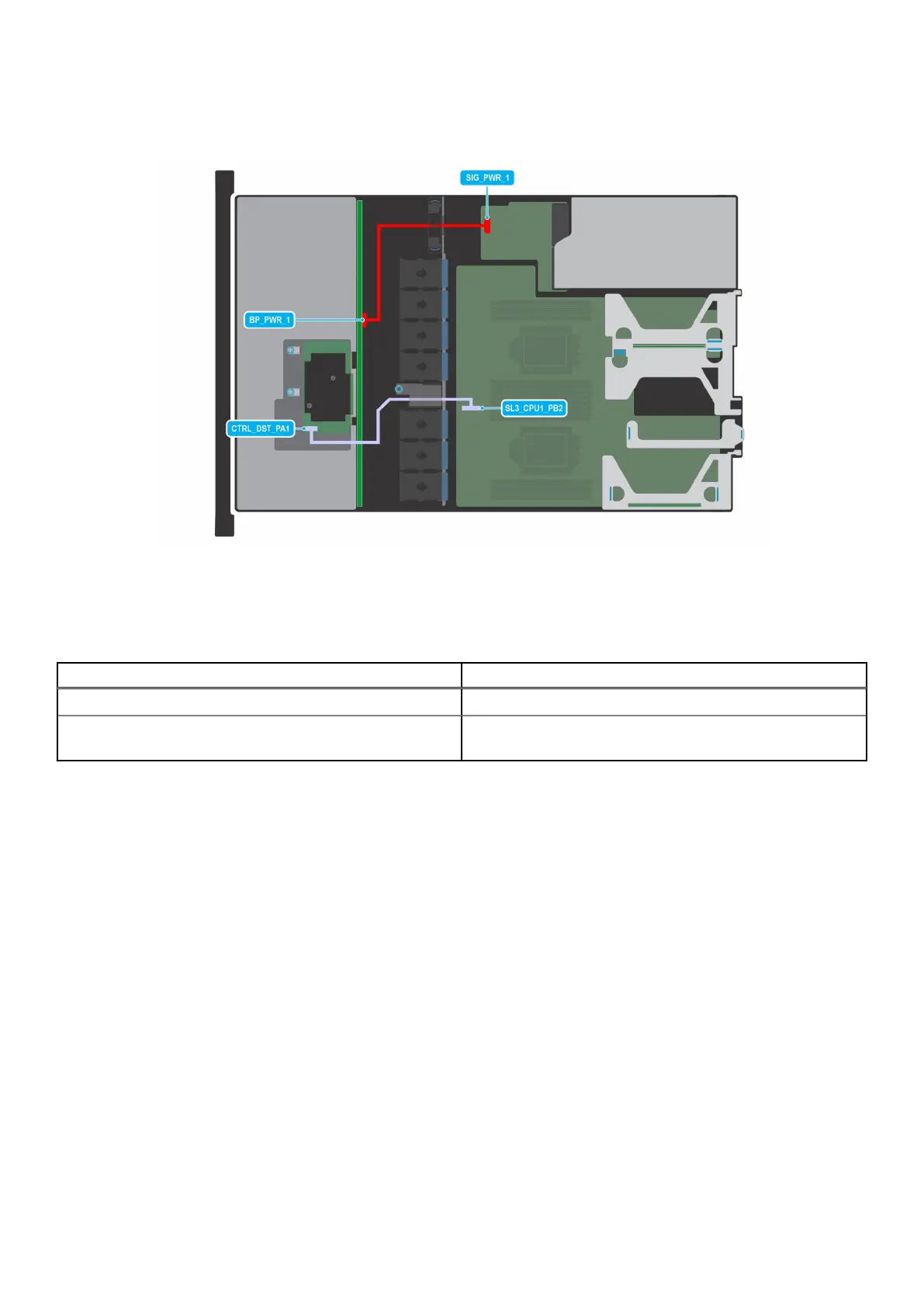

Figure 36. Cable routing - 4 x 3.5-inch drive SAS or SATA backplane with ODD, Butterfly riser, BOSS and SNAPI
riser
Table 8. Connector descriptions for 4 x 3.5-inch drive SAS or SATA backplane with ODD, Butterfly riser,
BOSS and SNAPI riser
From To
BP_PWR_1 (backplane power connector) SIG_PWR_1 (system board power connector)
CTRL_DST_PA1 (fPERC connector on the backplane) SL3_CPU1_PB2 (signal connector on the system board, cable
marking MB SL3)
