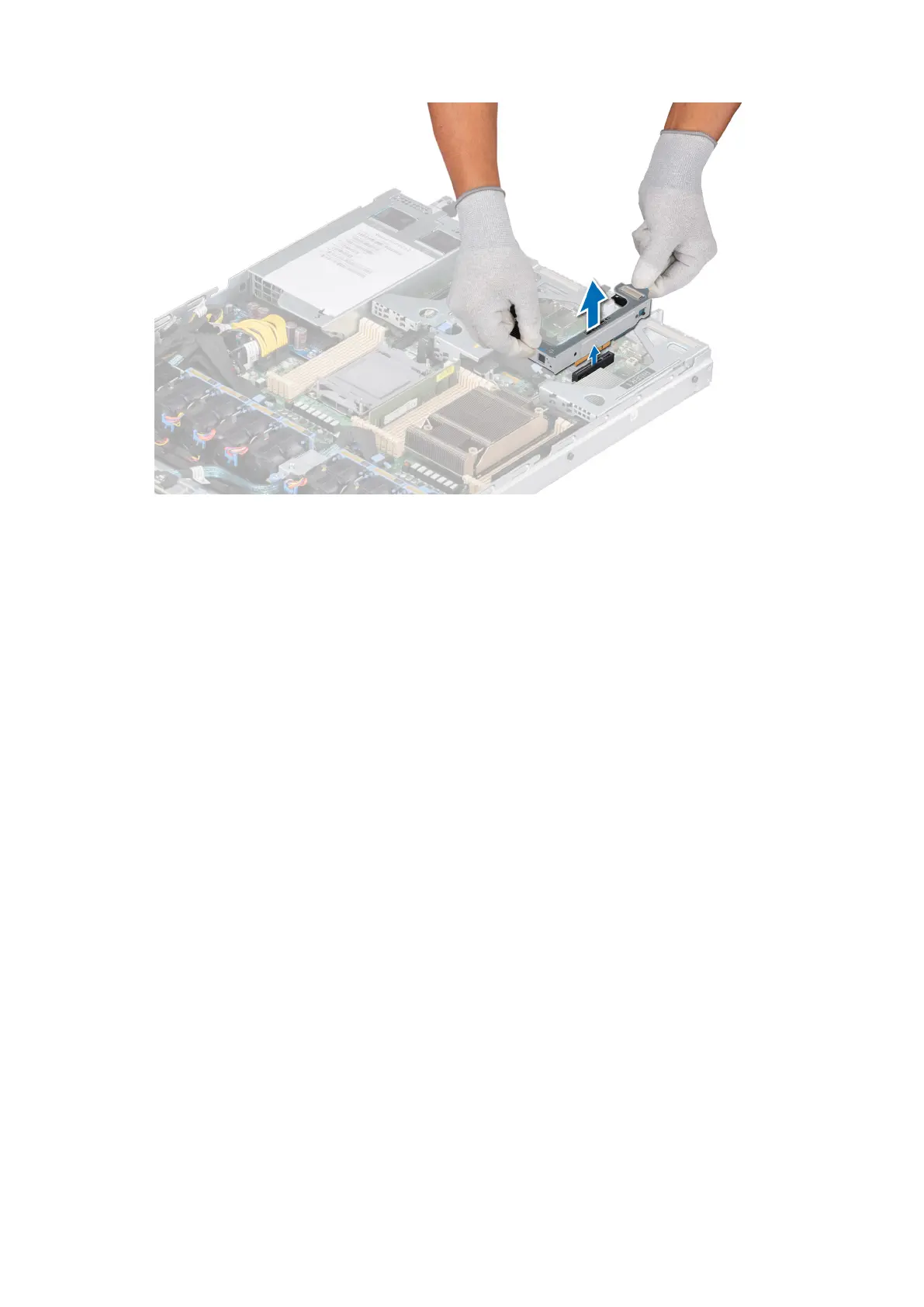

Figure 72. Removing the M.2 BOSS riser
Next steps
Replace the M.2 BOSS riser.
Installing the M.2 BOSS riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the M.2 BOSS riser connector with the connectors on the system board and the guide on the M.2 BOSS riser with the
guiding slot on the system board.
2. Lower the M.2 BOSS riser into place until the M.2 BOSS riser connector is fully seated in the connector.
