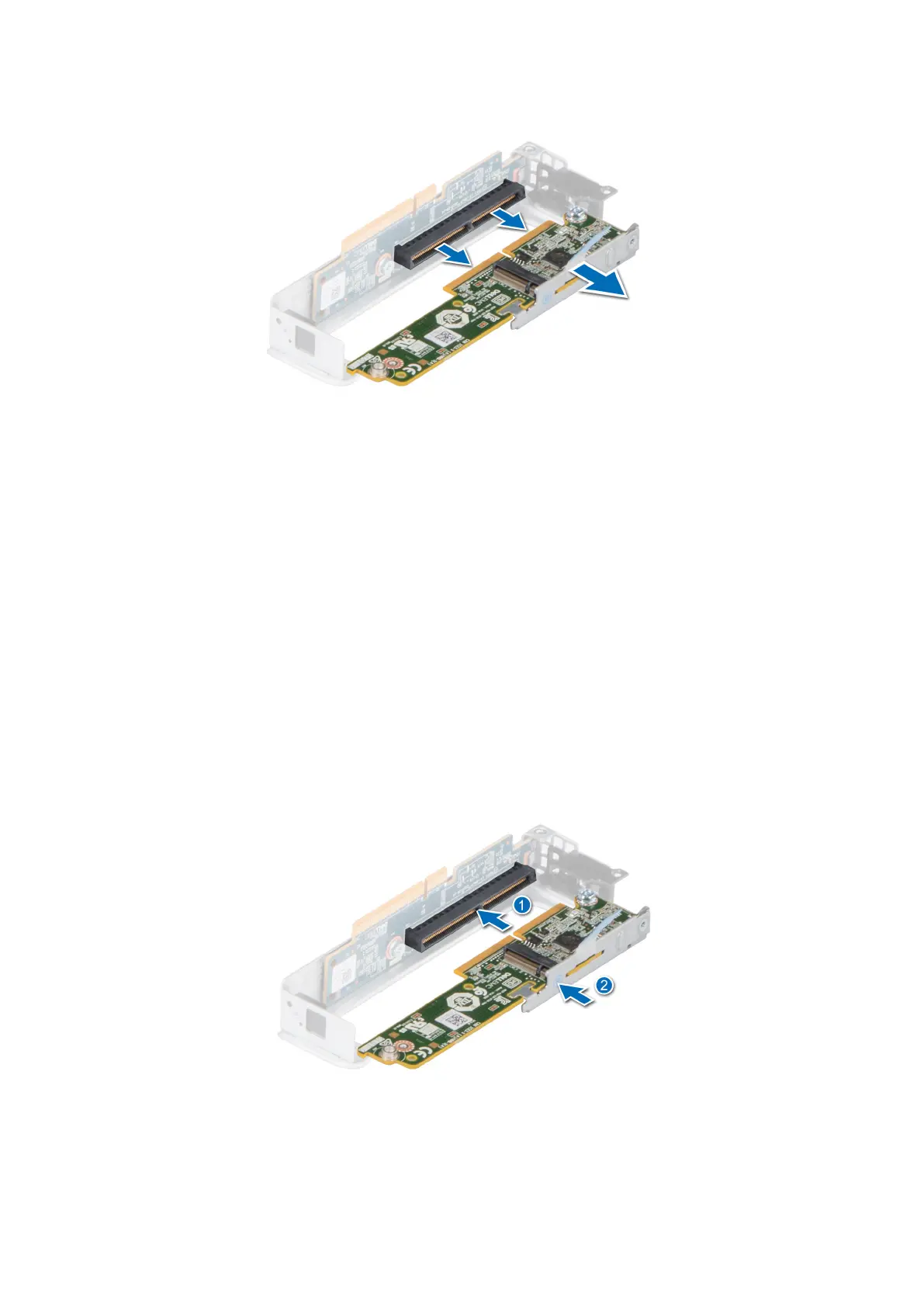

Figure 74. Removing the M.2 BOSS card from the M.2 BOSS riser
Next steps
If applicable, install a BOSS card into the M.2 BOSS riser.
Installing the M2 BOSS card into the M.2 BOSS riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the M.2 BOSS riser.
Steps
1. Align and insert the M.2 BOSS card connector with the connectors on the M.2 BOSS riser.
2. Press the blue touch point on the M.2 BOSS card until it is firmly seated.
Figure 75. Installing the M2 BOSS card into the M.2 BOSS riser
Installing and removing system components
71
