Dell EMC XC Core XC450 User Manual

Removing expansion card from the expansion card riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the air shroud.
4. Remove the expansion card risers.
Steps
1. Pull and lift up the expansion card retention latch lock to open.
2. Hold the expansion card by its edges and pull the card until the card edge connector disengages from the expansion card
connector on the riser.

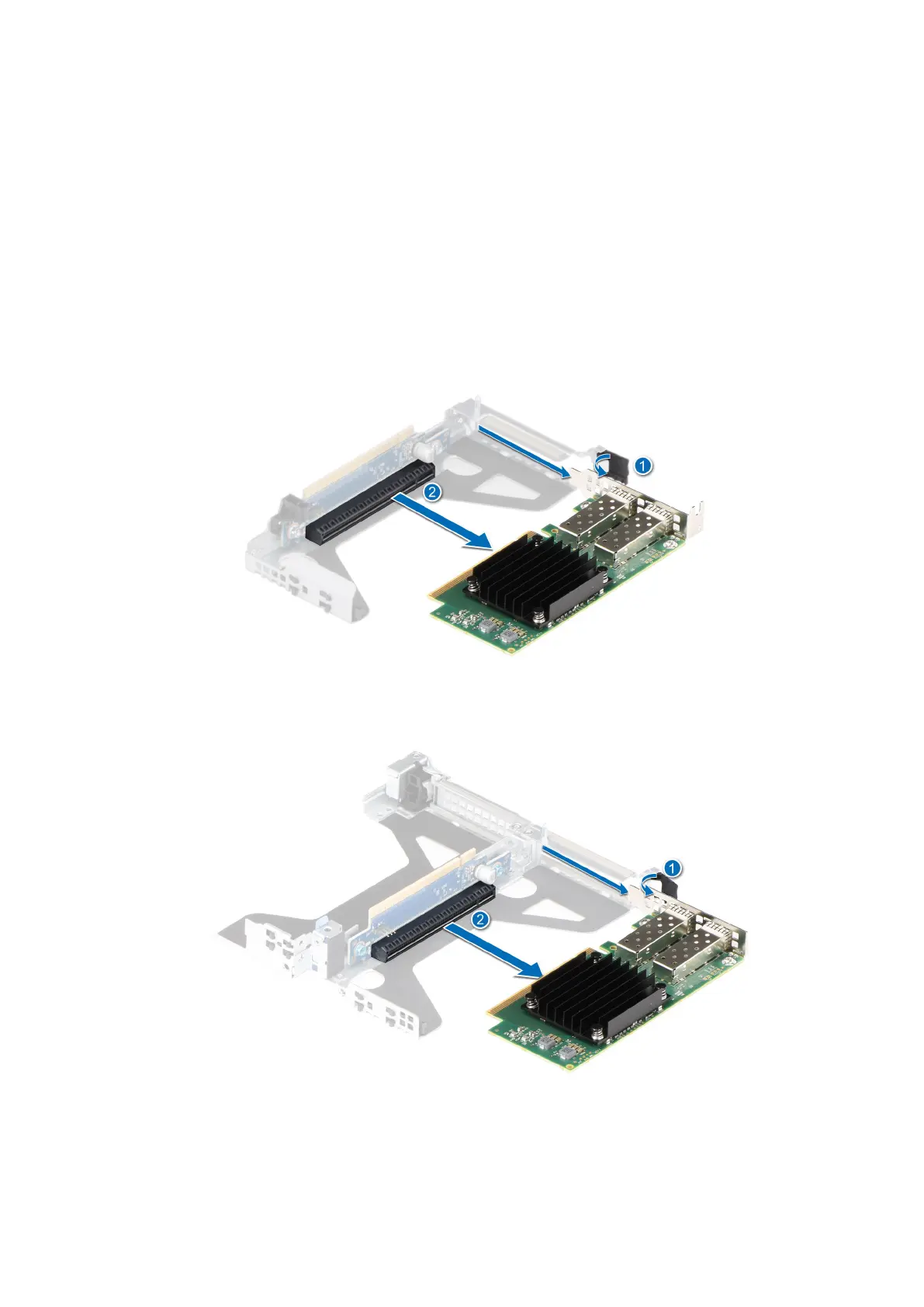

Figure 60. Removing an expansion card from the Riser 1
Figure 61. Removing an expansion card from Riser 2c
3. If the expansion card is not going to be replaced, install a filler bracket and close the card retention latch.
62
Installing and removing system components
