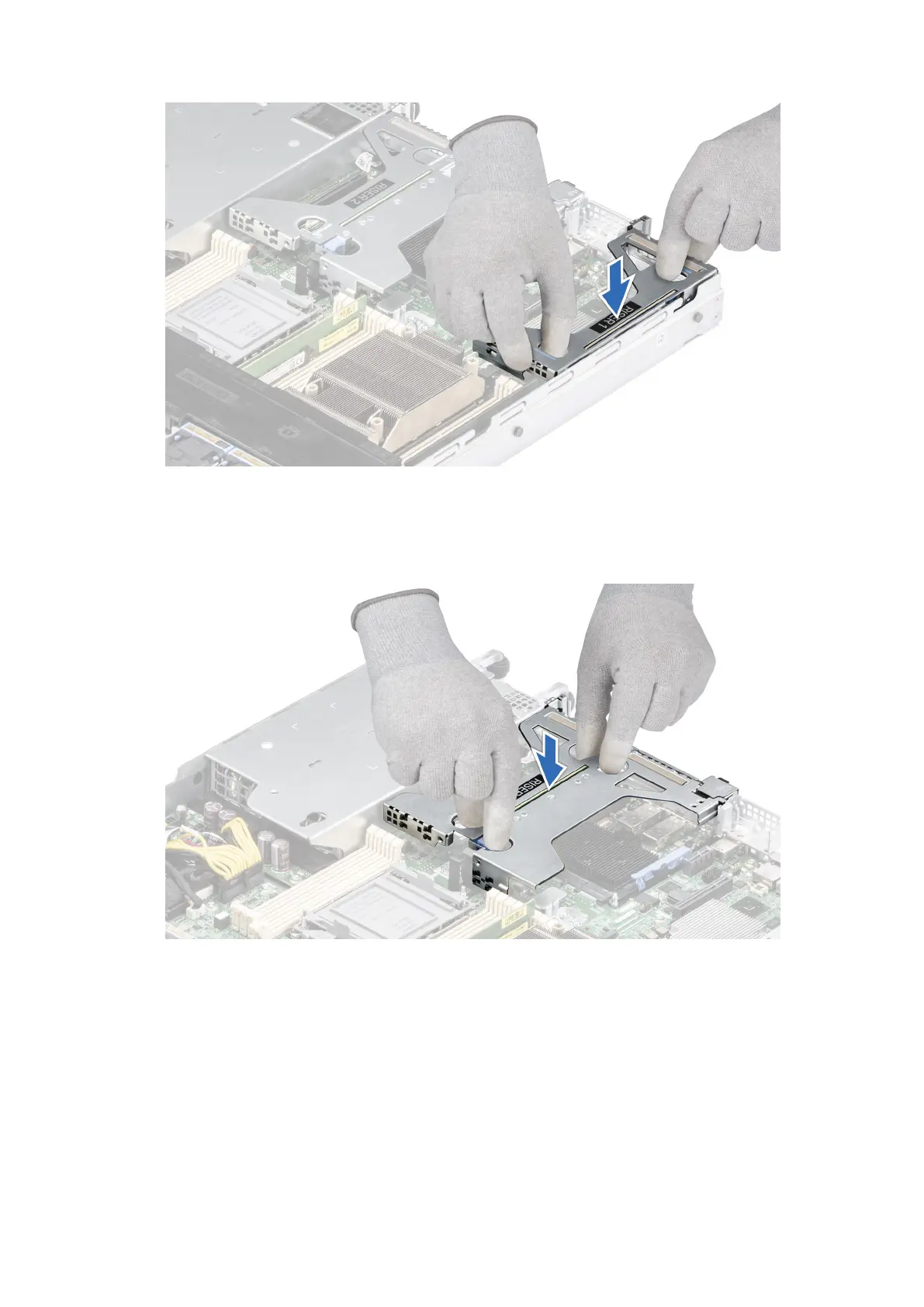

Figure 58. Installing the Riser 1
2. For Riser 2c, release the blue latch and holding the touch points, align the expansion card riser with the connector and the
riser guide pin on the system board. Lower the expansion card riser into place until the expansion card riser connector is fully
seated in the connector.
Figure 59. Installing the Riser 2c
Next steps
1. Replace the air shroud.
2. Follow the procedure listed in After working inside your system.
3. Install any device drivers required for the card as described in the documentation for the card.
Installing and removing system components
61
