3. Using the Phillips #1 screwdriver, secure the M.2 SSD module on the M.2 BOSS card with the screw.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

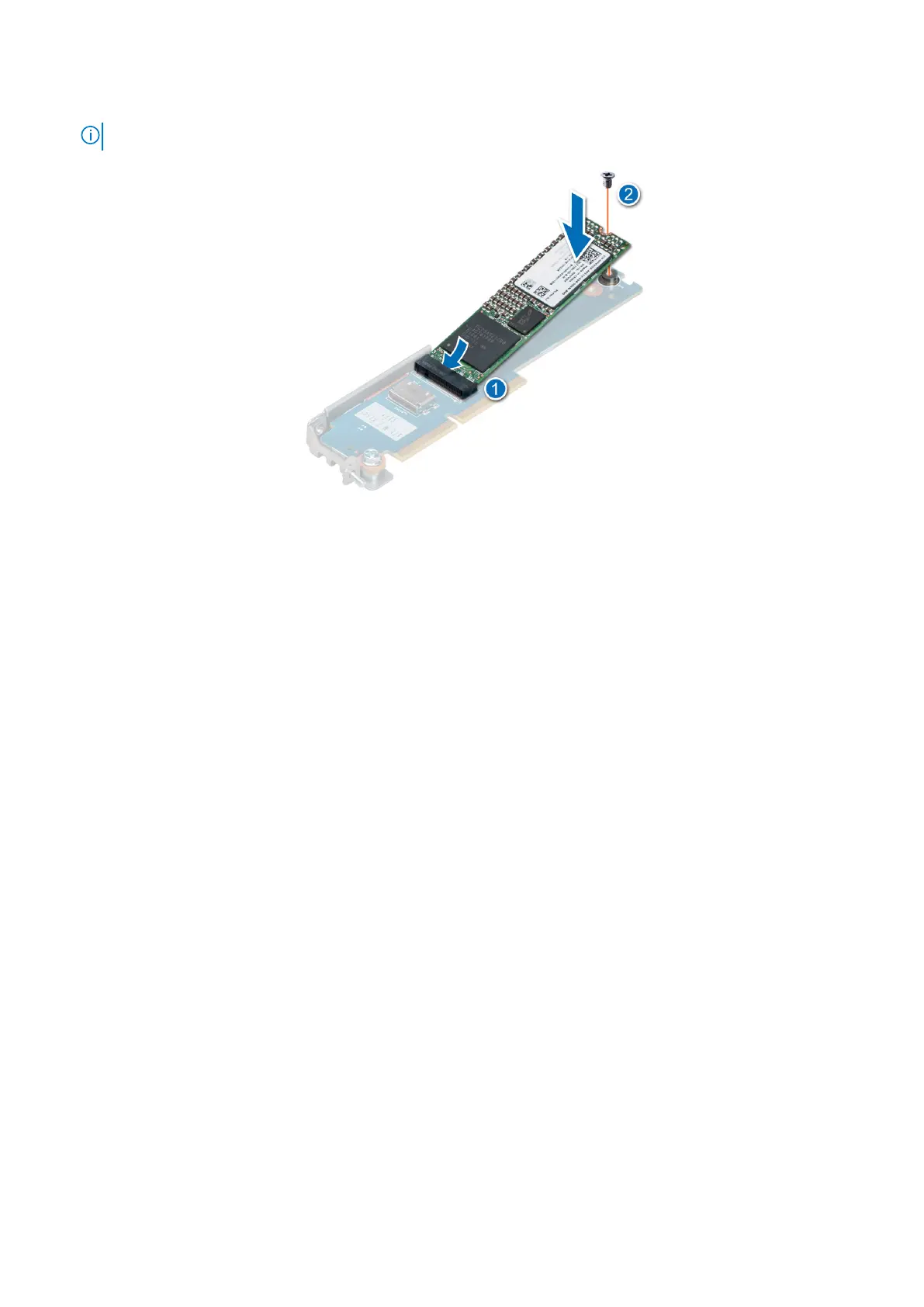

Figure 77. Installing the M.2 SSD module
Next steps
1. If applicable, install the M.2 BOSS card into the M.2 BOSS riser.
2. If applicable, Install the M.2 BOSS riser.
3. Follow the procedure listed in the After working inside your system.
Optional OCP card
Removing the OCP card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser.
Steps
1. Open the blue latch to unlock the OCP card.
2. Push the OCP card towards the rear end of the system to disconnect from the connector on the system board.
3. Slide the OCP card out of the slot on the system.
Installing and removing system components
73
