Dell EMC XC Core XC450

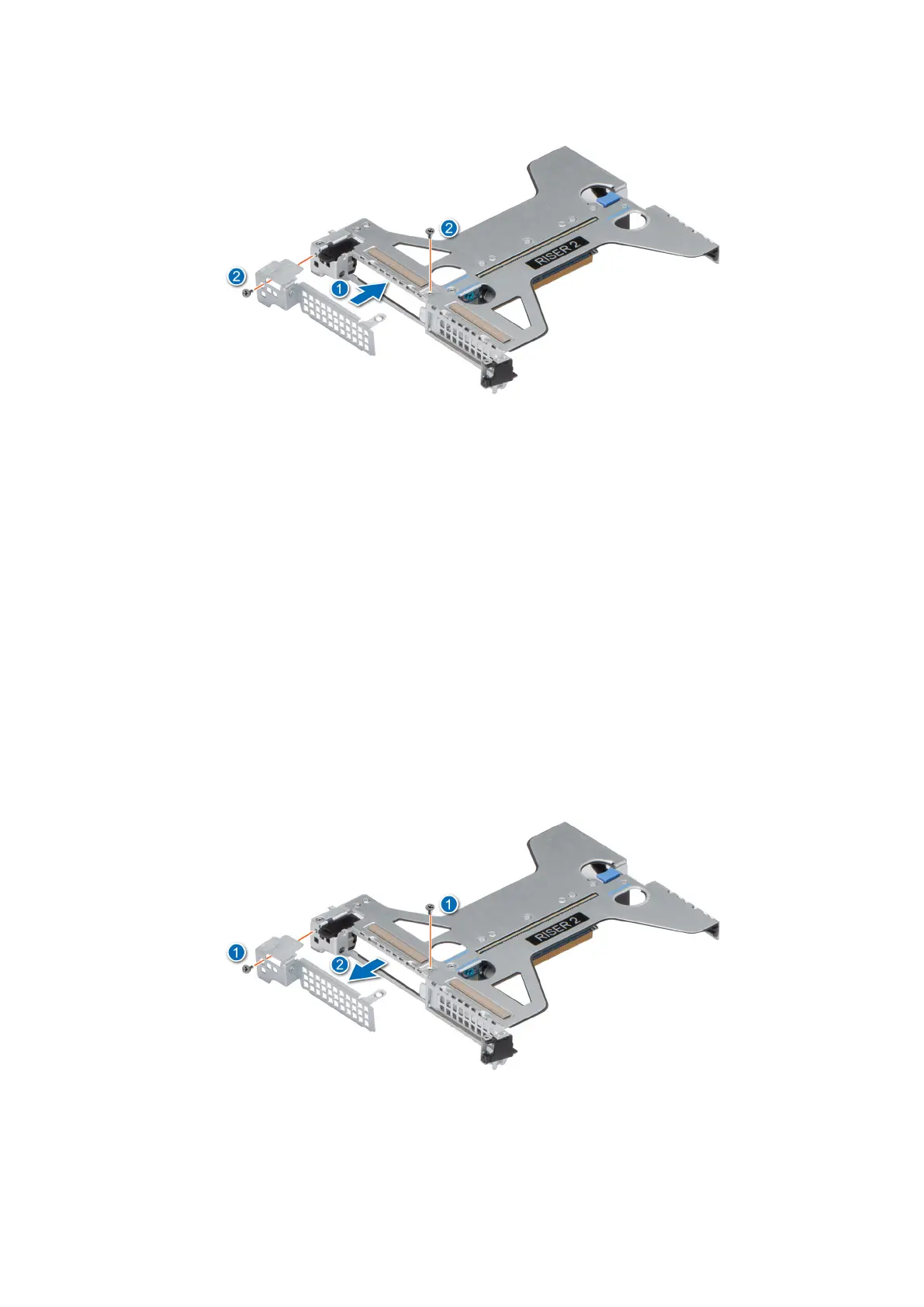

Figure 69. Installing the PCIe blank
Next steps
Replace the serial COM port.
Installing the serial COM port
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Lift the expansion card rsier from the connector on the system board.
Steps
1. Remove the screws, lift the PCIe blank, and then open the latch on the expansion card riser. (Riser 1, Riser 2c).
Figure 70. Removing the PCIe blank
2. Slide and lock the serial COM port into the expansion card riser.
Installing and removing system components
67
