3. Connect the serial COM port cable to the serial port.

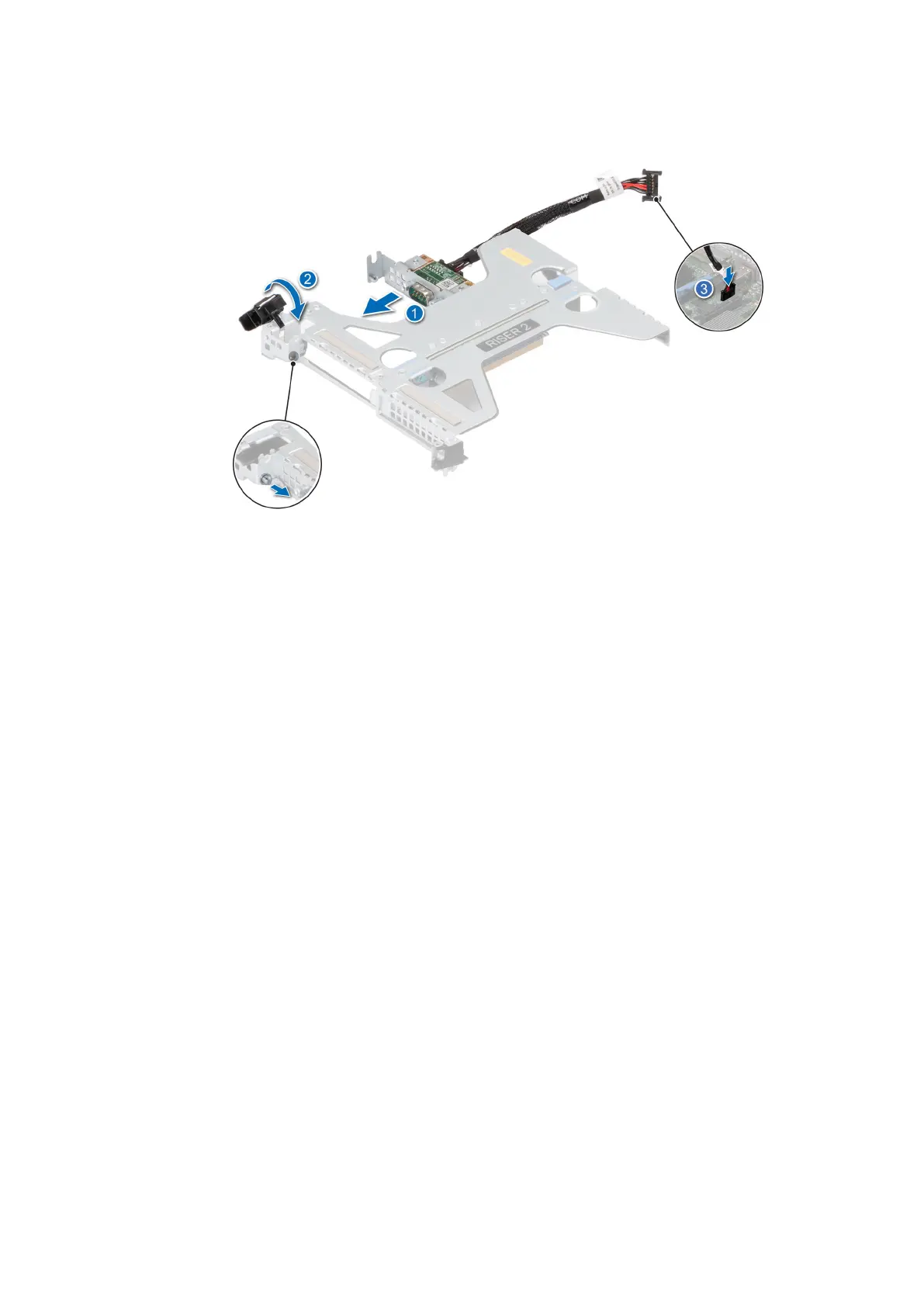

Figure 71. Installing the Serial COM port
Next steps
1. Install the expansion card riser.
2. Replace the air shroud.
3. Follow the procedure listed in After working inside your system.
BOSS S1 card
Removing the M.2 BOSS riser
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Hold the blue touch points, and lift the M.2 BOSS riser from the riser connector on the system board.
68
Installing and removing system components
