Dell EMC XC Core XC450

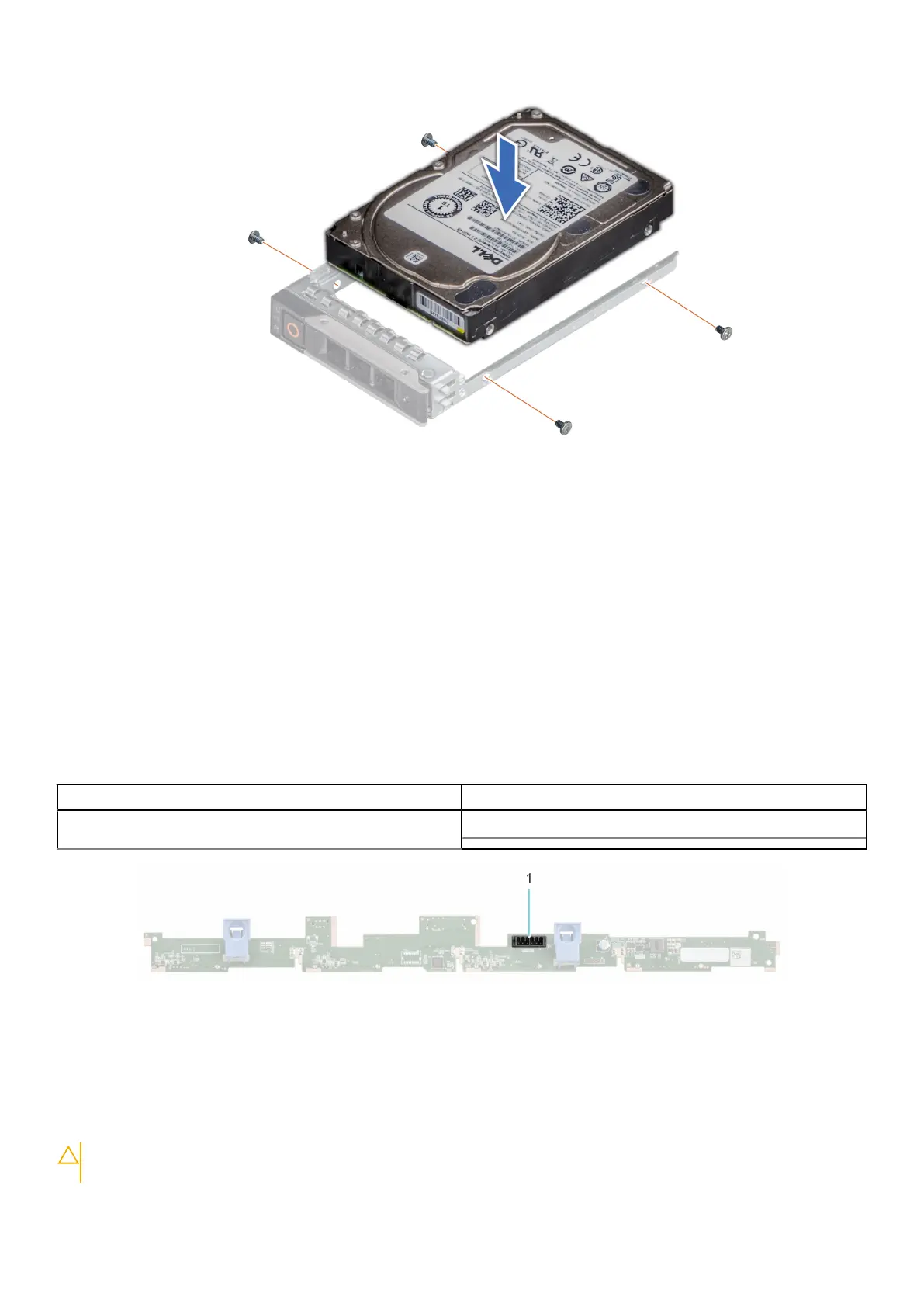

Figure 32. Installing a drive into the drive carrier
Next steps
Install the drive carrier.
Drive backplane
This is a service technician replaceable part only.
Drive backplane
Depending on your system configuration, the drive backplanes supported for XC450 system are listed here:
Table 7. Supported backplane options for XC450 system
System Supported hard drives options
XC450
3.5 inch (x4) SAS, SATA backplane
Figure 33. 4 x 3.5-inch drive backplane
1. BP_PWR_1 (backplane power and signal cable to PIB)
Removing the backplane
Prerequisites
CAUTION:
To prevent damage to the drives and backplane, remove the drives from the system before removing
the backplane.
Installing and removing system components 39
