Dell EMC XC Core XC450 system overview
The XC Core XC450 system is a 1U server that supports:
ā— Up to two 3
rd
Generation Intel Xeon Scalable processors with up to 32 cores
ā— 16 DIMM slots
ā— Two redundant AC or DC power supply units
ā— 4 x 3.5-inch hot-swappable SAS, SATA (hard drive or SSD) drives.
For more information about supported drives, see the www.dell.com/poweredgemanuals section.
NOTE: All instances of SAS, SATA drives are seen as drives in this document, unless specified otherwise.
Topics:
• Front view of the system
• Rear view of the system
• Inside the system
• Locating the Express Service Code and Service Tag
• System information label
• Rail sizing and rack compatibility matrix
Front view of the system

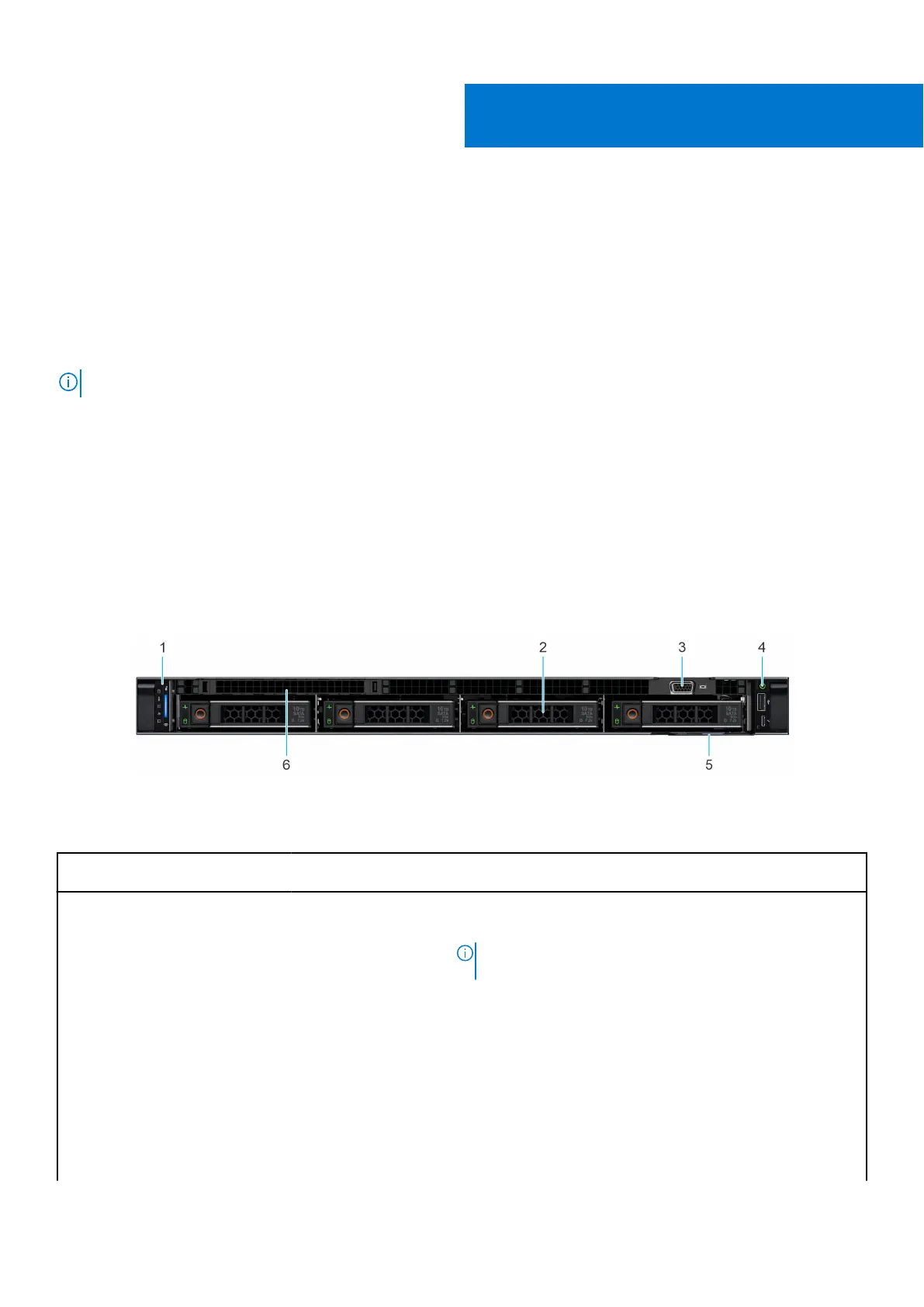

Figure 1. Front view of 4 x 3.5-inch drive system
Table 1. Features available on the front of the system
Item Ports, panels, and
slots
Icon Description
1 Left control panel N/A
Contains the system health, system ID, status LED, and the
iDRAC Quick Sync 2 (wireless) indicator.
NOTE: The iDRAC Quick Sync 2 indicator is available only
on certain configurations.
ā— Status LED: Enables you to identify any failed hardware
components. There are up to five status LEDs and an overall
system health LED (Chassis health and system ID) bar. For
more information, see the Status LED indicators section.
ā— Quick Sync 2 (wireless): Indicates a Quick Sync enabled
system. The Quick Sync feature is optional. This feature
allows management of the system by using mobile devices
called as OpenManage Mobile (OMM) feature. Using iDRAC
Quick Sync 2 with OpenManage Mobile (OMM) aggregates
hardware or firmware inventory and various system level
diagnostic and error information that can be used in
2
Dell EMC XC Core XC450 system overview 7
