Dell EMC XC Core XC450

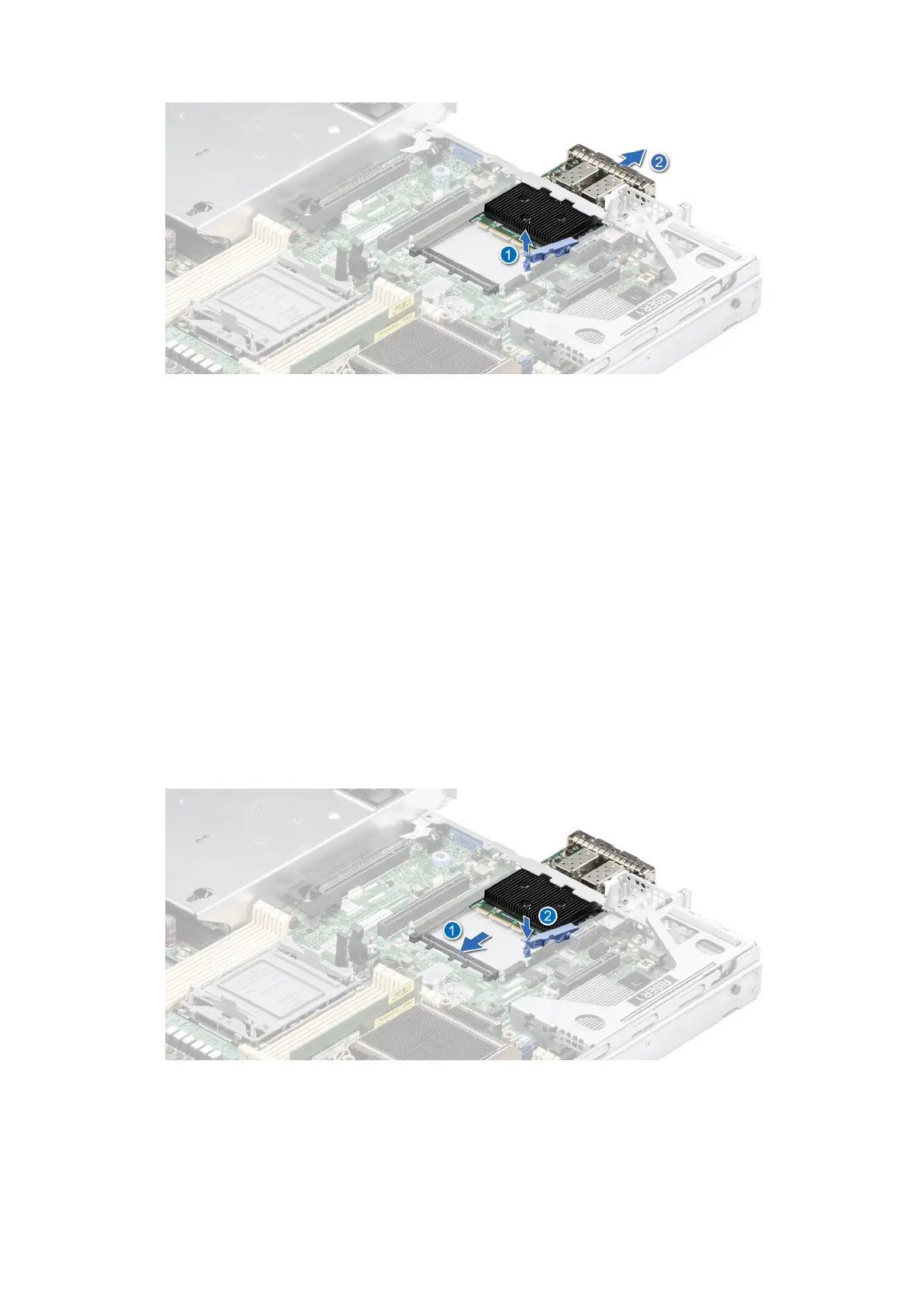

Figure 78. Removing the OCP card
Next steps
Replace the OCP card.
Installing the OCP card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser.
Steps
1. Open the blue latch on the system board.
2. Slide the OCP card into the slot in the system.
3. Push until the OCP card is connected to the connector on the system board.
4. Close the latch to lock the OCP card to the system.
Figure 79. Installing the OCP card
Next steps
1. Install the expansion card riser.
74
Installing and removing system components
